Inertial Labs INS-P User Manual

INS
GUI User’s Manual
Inertial Labs, Inc
TM
Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.
Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com
61

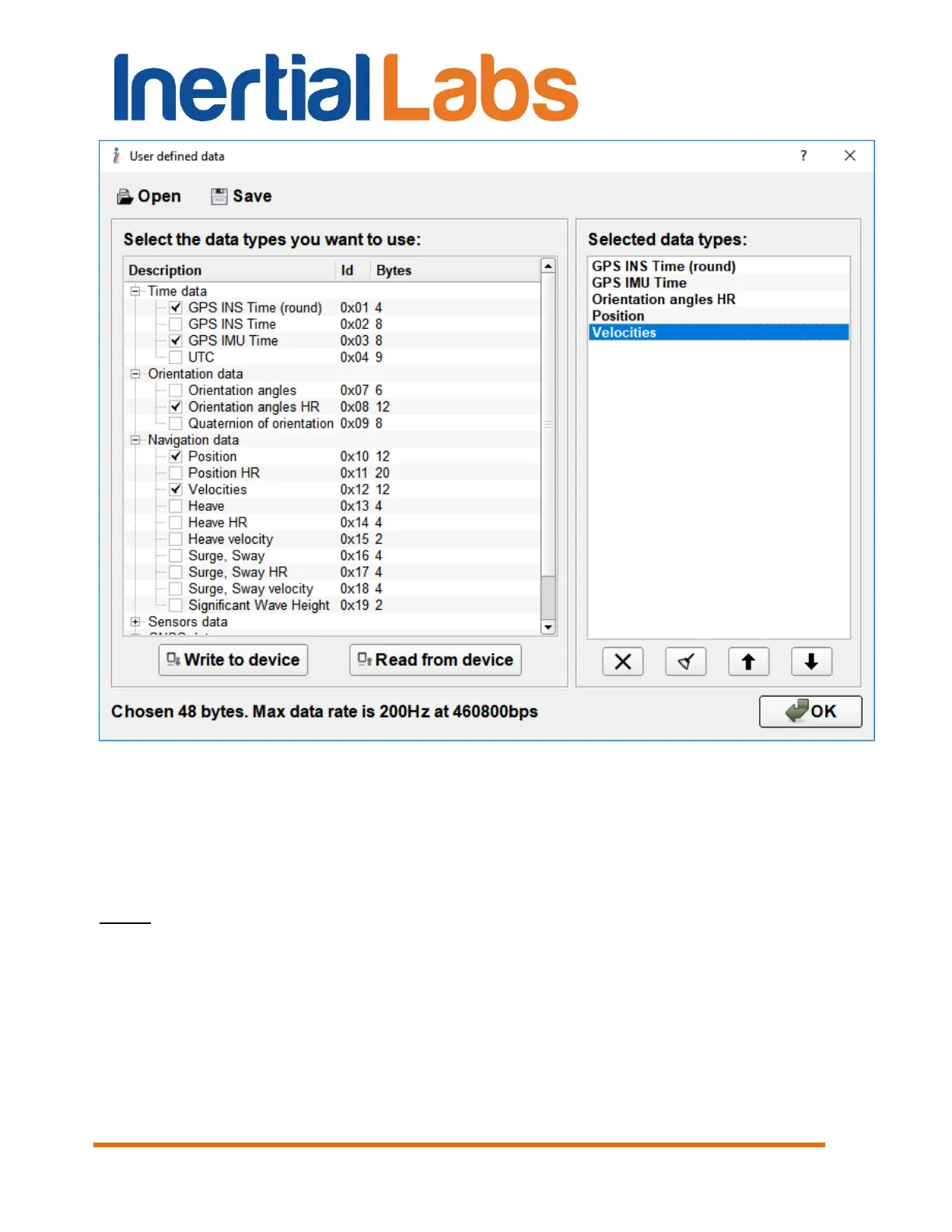

Fig. 4.29
Bottom string in the “User defined data” window (Fig. 4.29) contains the
summary information about chosen data packets: total number of bytes, the
maximum data rate for the current serial port baud rate (set in the “Tests
Options”).
Notes:
1. Full size of the data message is larger than total number of bytes of chosen packets.
Full structure of the data message includes also header and other fields according to the
message structure (see Appendix C.1, Table C.26, and INS ICD, Table 6.2).
2. Maximum data rate is calculated based on full size of the data message according to
above formula (4.1).
