4.3. Correction options

The user can adjust some parameters of the INS algorithm. Select

“Correction options…” from the “Options” menu (Fig. 3.7), or click

button (Fig. 3.1). A “Settings” tab of the “Correction options…” window will

be opened (see Fig. 4.24).

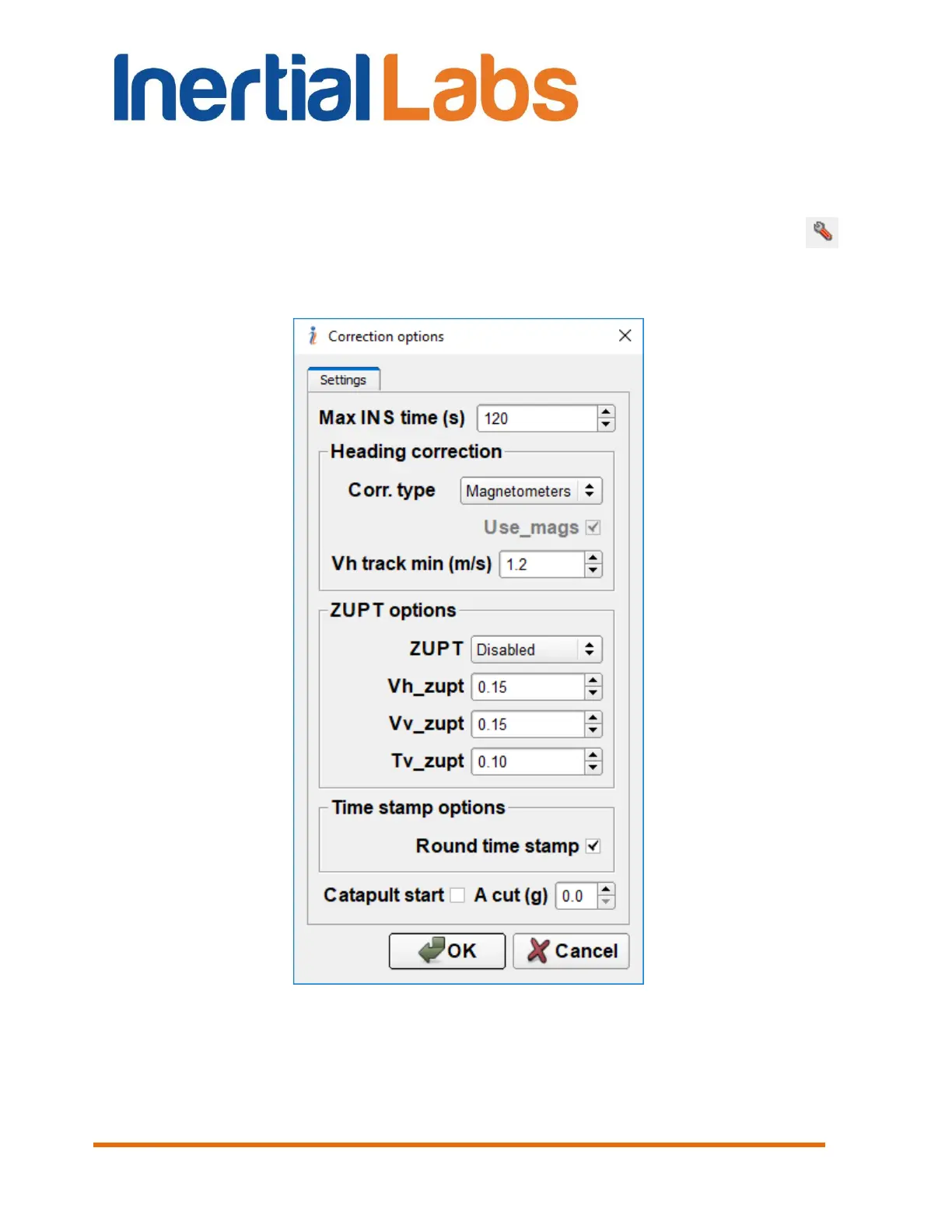

Fig. 4.24

There are the next settings for adjustment of the INS algorithm:

 Max INS time – is the maximum time (in seconds) of autonomous

INS operation at absence of GNSS data (GNSS outage). Because INS
