Inertial Labs INS-P User Manual

INS
GUI User’s Manual
Inertial Labs, Inc
TM
Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.
Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com
143
10.8.2. “CAN message set” format configuration file (*.ucan)
Created configuration of the “CAN message set” can be transferred to other
INS units using binary file with the .ucan extension.
To save the current configuration to file, please click the "Save" button (see
Fig. 10.26). After that a standard MS Windows “Save as …” window is
opened. User can change file name or keep its default name with .ucan

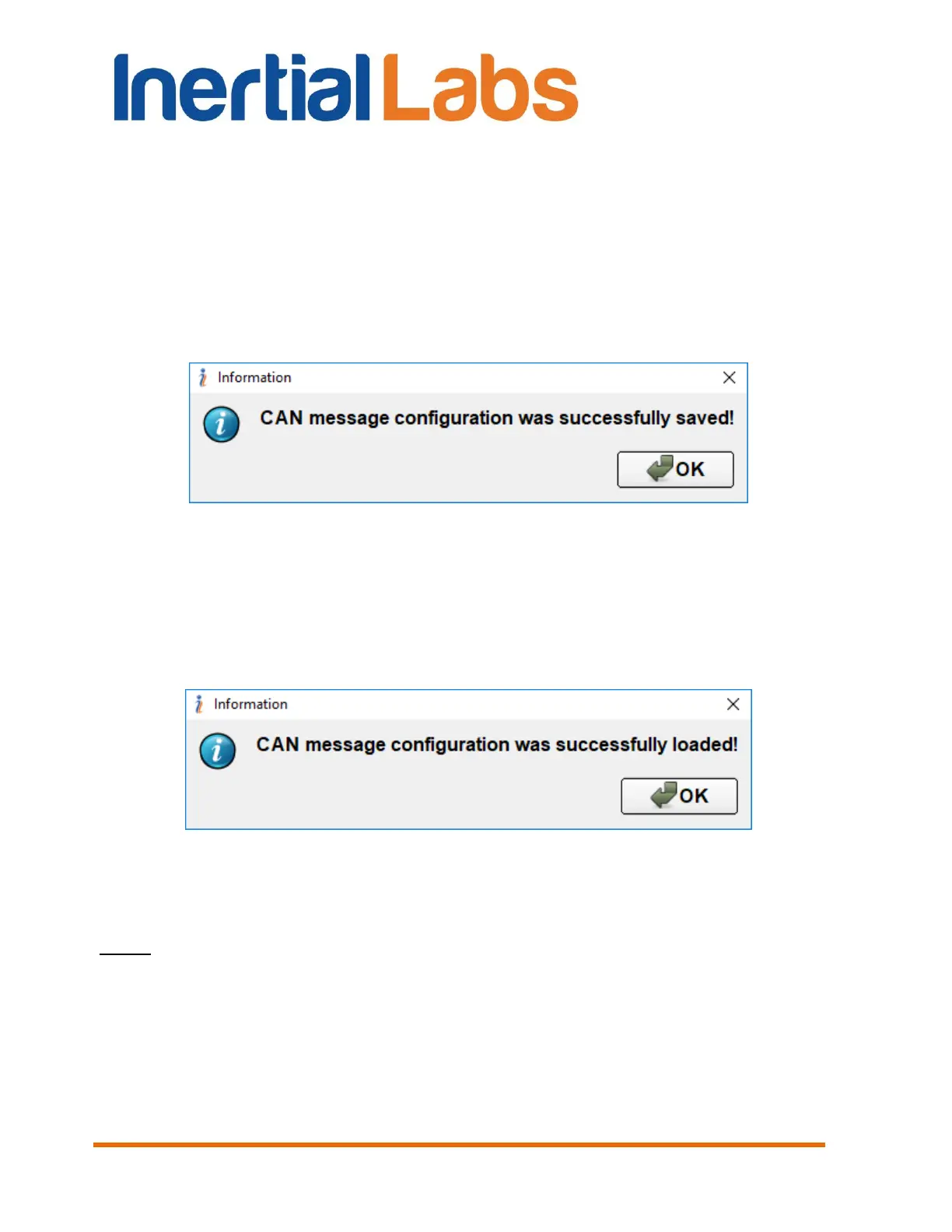

extension. After saving, the following message appears (Fig. 10.33):
Fig. 10.33.
To load the “CAN message set” configuration from file, please click the
"Open" button (Fig. 10.26). After that, a standard Windows “Open” window
is opened; in this window please select one of the previously saved files with
.ucan extension. After opening the selected file, the following message
appears (Fig. 10.34):
Fig. 10.34.
After loading configuration of the “CAN message set”, it is displayed in the
"Select messages" and "Selected messages" fields (see Fig. 10.26).
Notes:
1. It possible to edit this configuration as described above.
2. To apply configuration of the “CAN message set” to the INSunit please click “Write”
button.
