Inertial Labs INS-P User Manual

INS
GUI User’s Manual
Inertial Labs, Inc
TM
Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.
Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com
63

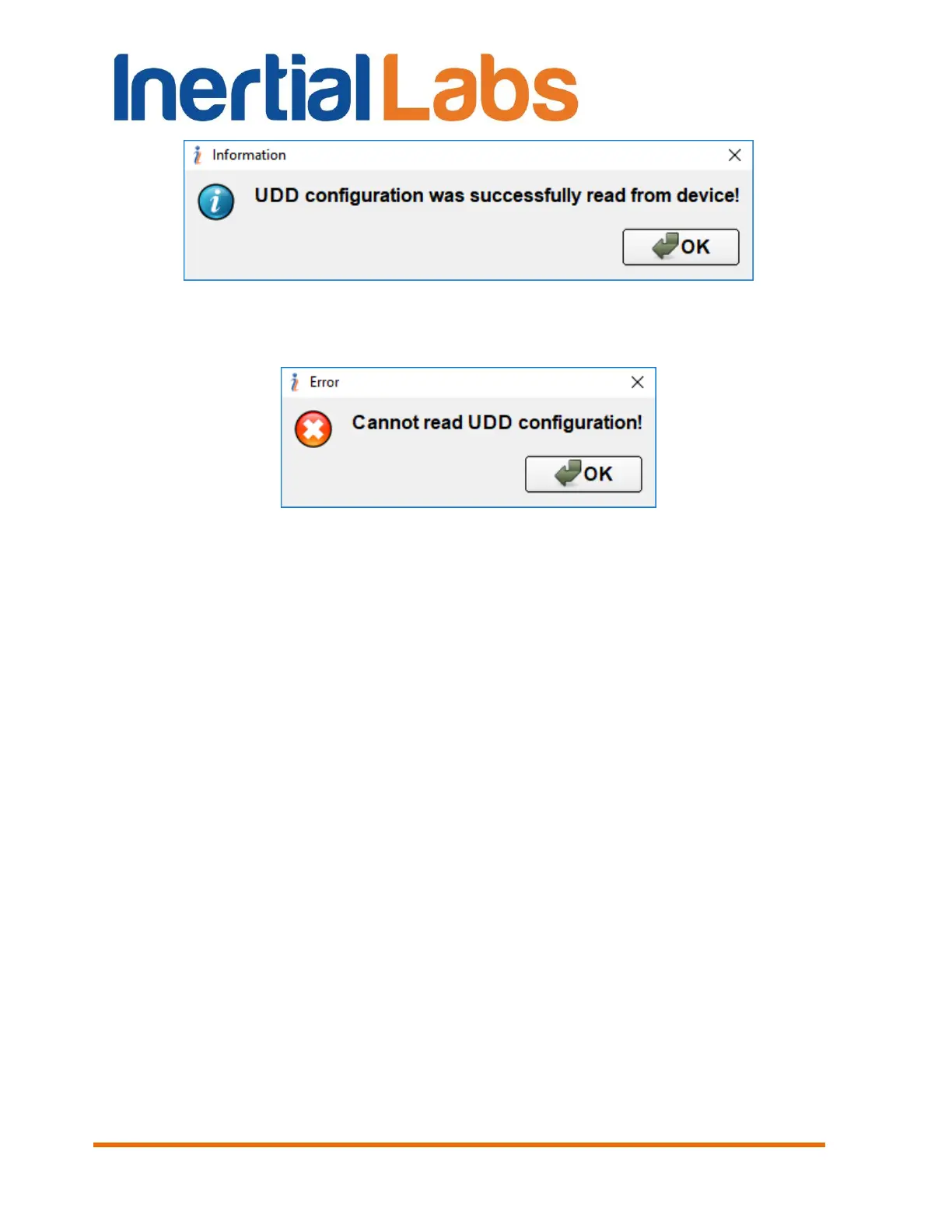

Fig. 4.32
If the operation fails, the following message appears (Fig. 4.33):
Fig. 4.33
In this case do the next:
 Check settings of the device connection (serial port number, baud rate);
 Check INS firmware version – it should be not earlier than 3.2.4.0 to
support the “User defined data” format.
The current INS configuration will be displayed in the "Select the data types
you want to use" and "Selected data types" fields (see Fig. 4.29).
You can add or remove data packets. Also, using the control buttons under
"Selected data types" field, you can arrange the data types in the required
order.
Press "Write" button to write the configuration to the INS flash memory. If the
operation is successful, the message Fig. 4.30 will appear, otherwise the
message Fig. 4.31 will appear.
