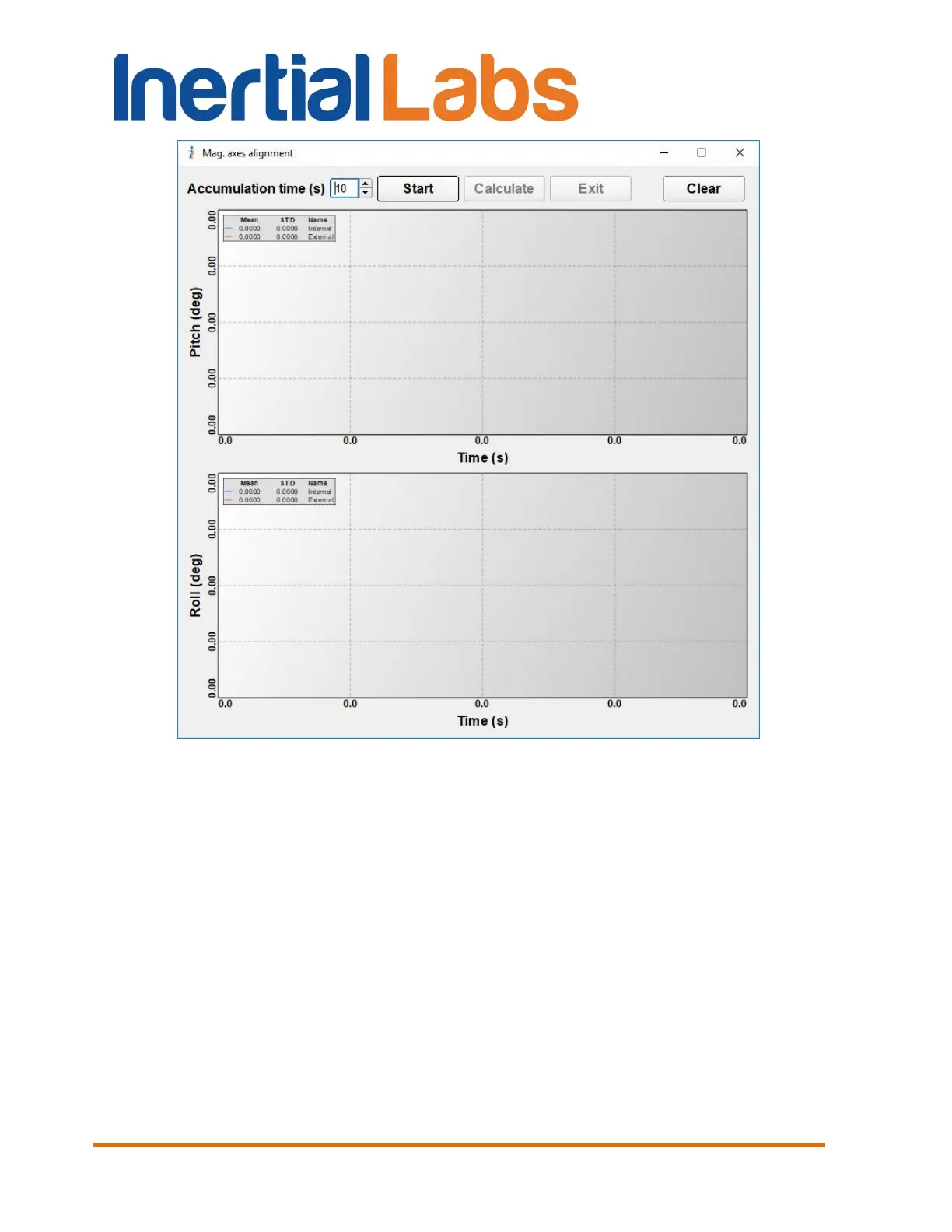

Fig. 8.7

The “Accumulation Time” field in window Fig. 8.7 defines the necessary

time of data acquisition while the measurement in each position of a carrier

object. At least three positions with essentially different pitch and roll angles

are required. The “Accumulation Time” can be set using arrows or by typing

necessary value. The default value is 10 seconds.

See section 10.9 for detailed description of the INS and OS3D-FG SAMC

axes alignment procedure.
