3 Press the power button until a click is heard. The green lights adjacent to Radio
and WLAN should illuminate. When the green lights are illuminated, the
wireless radio is being powered. See Figure 5-2.

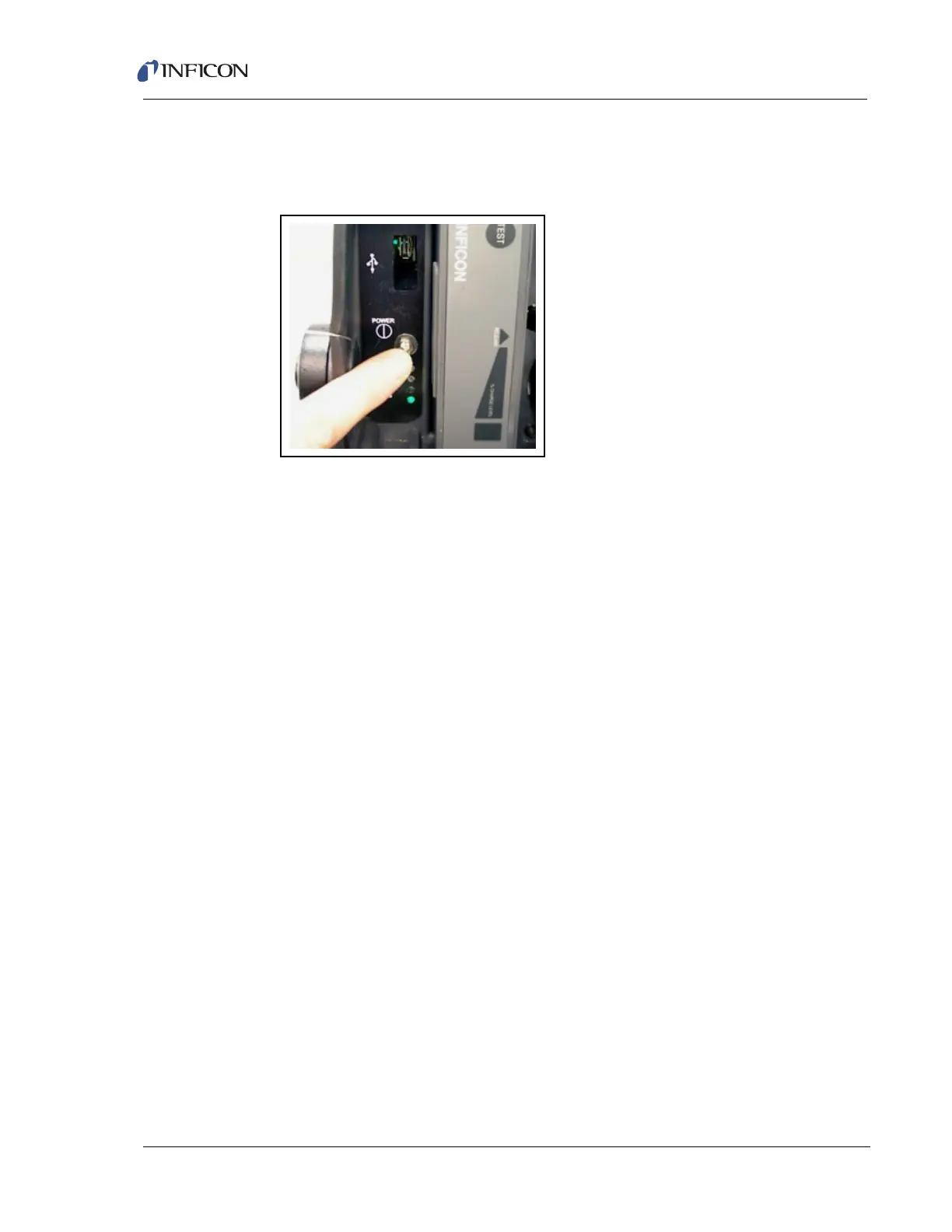

Figure 5-2 Pushing wireless button
4 Replace the switch cover by placing it over the switch. Turn it clock-wise until
finger tight.
5.1.3 Wireless Module Indicator Lights
Located on the Wireless Module inside the HAPSITE front cover are four indicator
lights:
RADIO . . . . . . . . . . . . . . . . . . . . . . . When illuminated, the radio is enabled.
WLAN. . . . . . . . . . . . . . . . . . . . . . . . When illuminated, the wireless connection is
linked to the laptop. The LED blinks when
transmitting or receiving data.
LAN . . . . . . . . . . . . . . . . . . . . . . . . . When illuminated, the HAPSITE is
connected via a crossover cable to the
laptop. The LED blinks when transmitting or
receiving data. The LED will be extinguished
if the crossover cable is disconnected.
586 . . . . . . . . . . . . . . . . . . . . . . . . . . When illuminated, the HAPSITE 586
processor is linked to a wired or wireless
connection.
