Inficon HAPSITE ER User Manual

4 - 10
HAPSITE ER Operating Manual
4 When the cleanout is successful, the Concentrator Cleanout Succeeded
message will be displayed along with the final TIC. Push OK to exit the screen.
(See Figure 4-17.)

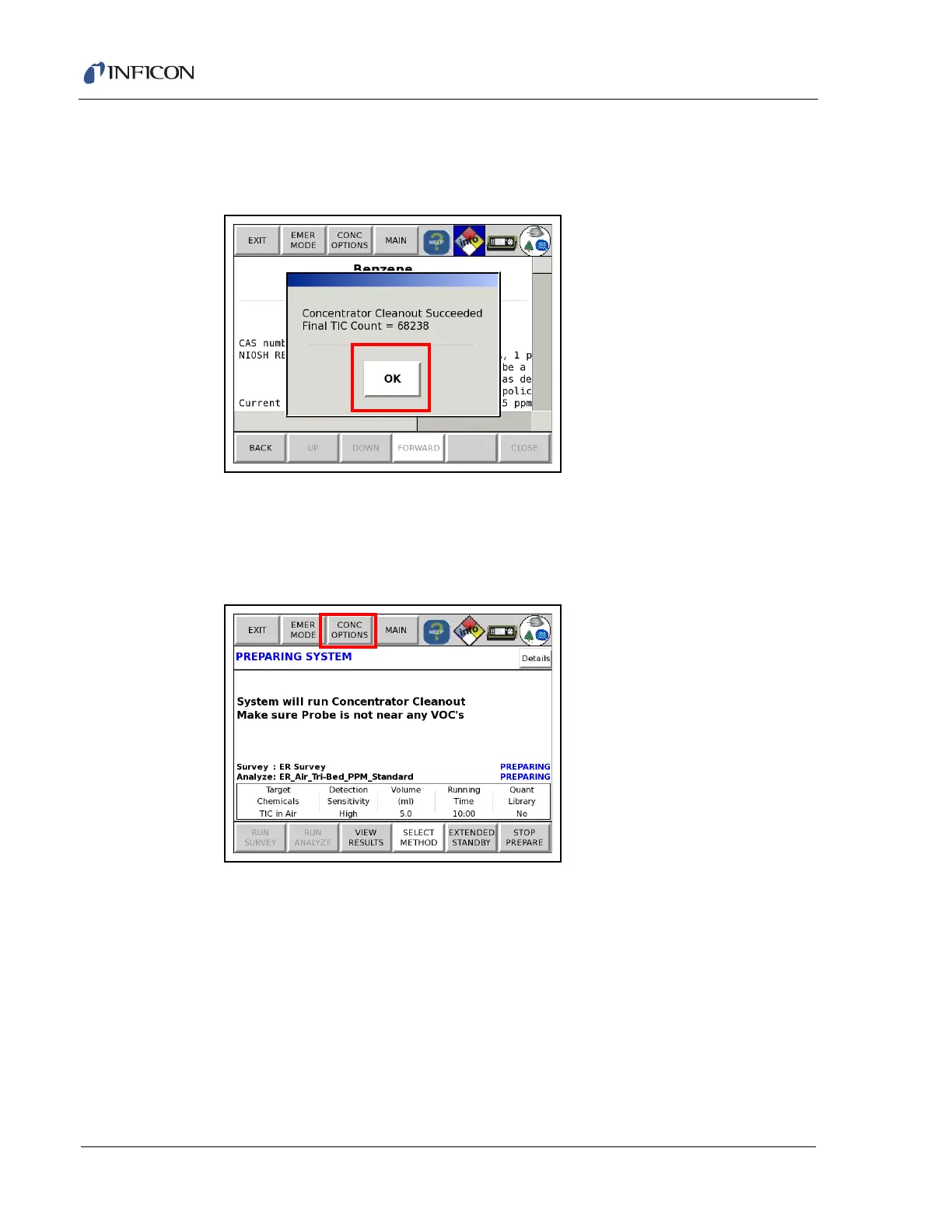

Figure 4-17 Concentrator Cleanout Succeeded
4.1.2.2 Skip Cleanout
1 Touch CONC OPTIONS or use the arrow keys to highlight the CONC
OPTIONS button and push OK SEL. (See Figure 4-18.)
Figure 4-18 Conc Options

Inficon HAPSITE ER Specifications

General

Mass Range	1 to 300 amu
Type	Portable Gas Chromatograph-Mass Spectrometer (GC-MS)
Operating Temperature Range	0° to 40°C (32° to 104°F)
Power Supply	110-240 VAC, 50/60 Hz
Data Storage	Internal memory with USB export capability
Sample Introduction	Direct Air, Thermal Desorption
Humidity Range	0 to 95% non-condensing
Technology	Gas Chromatography - Mass Spectrometry (GC-MS)
Connectivity	USB, Ethernet
