7 - 17
HAPSITE ER Operating Manual

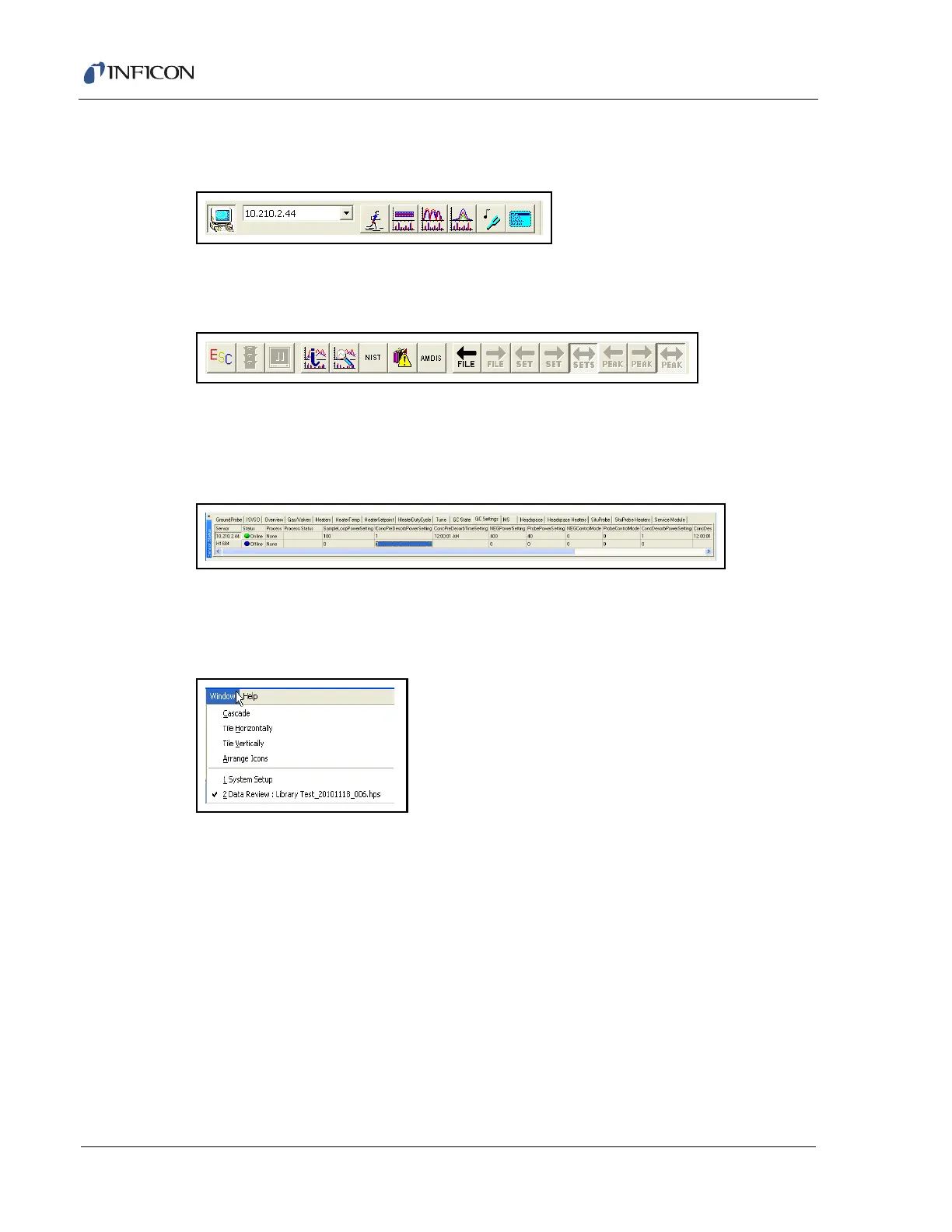

The Sensor Toolbar is shown in Figure 7-32. See Table 7-2 on page 7-40 for icon
descriptions.
Figure 7-32 Sensor toolbar
The Function Toolbar is only available when the Data Review screen is open.
(See Figure 7-33.) See section 8.1, Introduction, on page 8-1 for icon descriptions.
Figure 7-33 Function toolbar
Toolbars Use Large Icons increases the size of the toolbar icons.
Sensor Status Grid will open the Sensor Status Grid which shows the current
condition of various components. (See Figure 7-34.)
Figure 7-34 Sensor Status grid
7.3.6 Window Menu
The Window menu is shown below. (See Figure 7-35.)
Figure 7-35 Window menu
The first three options Cascade, Tile Horizontally and Tile Vertically determine
the arrangement of open windows on the screen.
Arrange Icons aligns the icons along the top row.
The last options are System Setup and Data Review. The current view is the one
that is checked. Select the unchecked option to switch views.
