5 - 13
PN 074-550-P1D
SQC-310 Operating Manual
<-Upload . . . . . . . . . . . . . . . . . . . . . Click to upload source data from SQC-310 to
the SQC-310 Comm software. The existing
SQC-310 Comm software data will be
overwritten.
Sources 1 to 4. . . . . . . . . . . . . . . . . Checks all sources for which data will be
uploaded/downloaded when the
corresponding button is pressed.
Source parameter inputs become available automatically when multi-pocket
sources are request in the # of positions parameter. For a complete list of
parameters, definitions, usage, and the range of acceptable values for each
parameter, refer to section 3.12.3, Sensors and Sources Menu, on page 3-36.
5.5.6 Digital I/O Setup Menu
In the Instrument window toolbar, click Edit >> Digital I/O... to display the Digital
I/O Setup menu that allows the mapping of named digital input and relay functions
to physical inputs and relays.
NOTE: I/O setup is closely linked to sensor and source definitions. Changing a
Sensor or Source may cause SQC-310 to alter its internal I/O definitions.
For this reason, SQC-310 must be connected. Click Download to verify
and modify SQC-310 configuration before selecting OK to close the Digital
I/O Setup menu and save the data to memory.

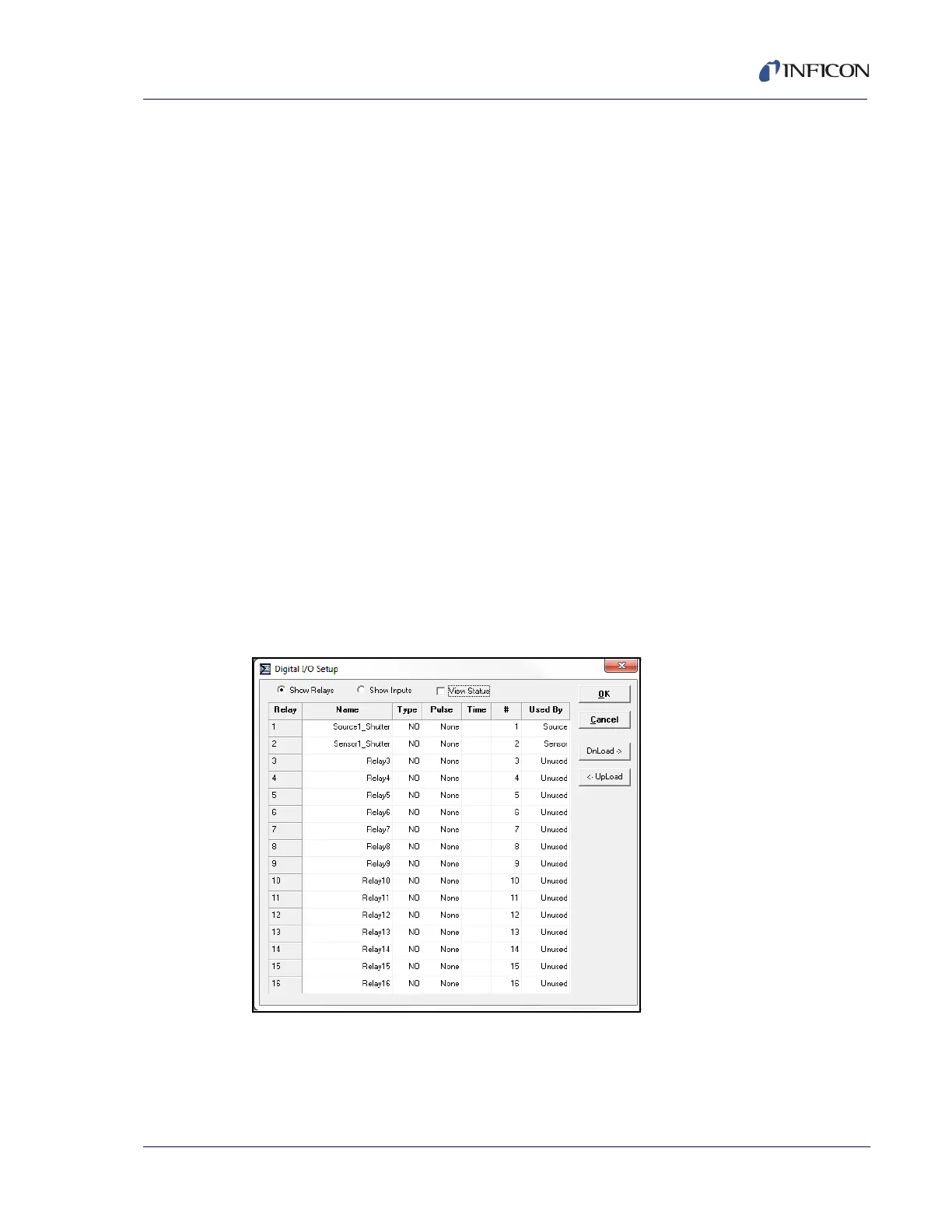

Figure 5-10 Digital I/O Setup menu - Show Relays
