Inficon SQC-310 User Manual

2 - 9
PN 074-550-P1D
SQC-310 Operating Manual
2.7.1.2 Installation
1 Assemble the extender. Use the 8 small flat head screws to connect the two
small black aluminum panels and two large black aluminum panels (see Figure
2-6).

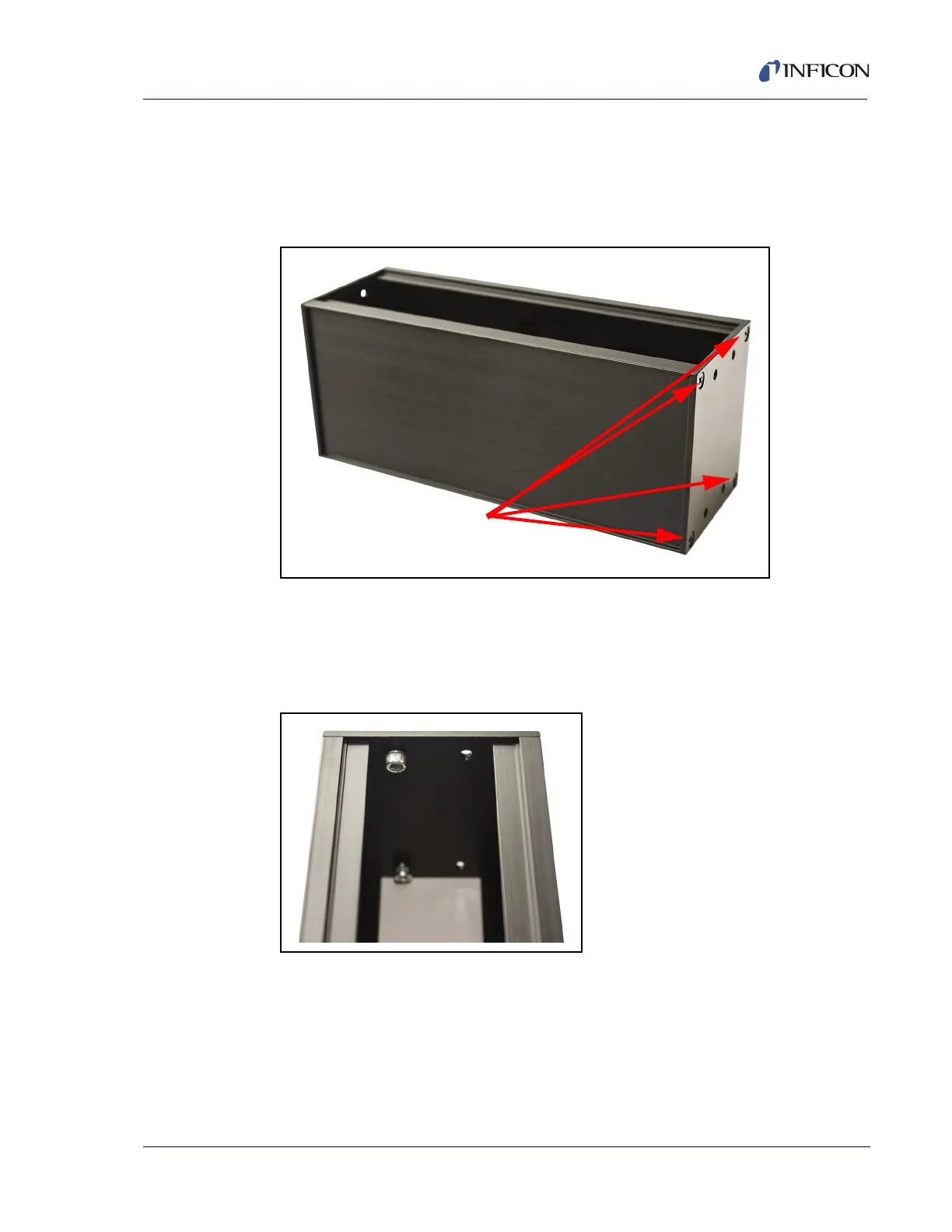

Figure 2-6 Assembly of extender
2 Install hex shoulder screws. From inside the extender, thread two hex shoulder
screws on one side, closest to the front of SQC-310. Continue to thread the
screws until the threads are completely exposed (see Figure 2-7 and Figure
2-8).
Figure 2-7 Installing hex shoulder screws - inside view
Small flat head screws
