Password: If Password is enabled, this parameter sets the sequence of buttons to
press to enter menus. Press the desired sequence to set the password (see Figure
3-18 for an illustration of the password number designations).

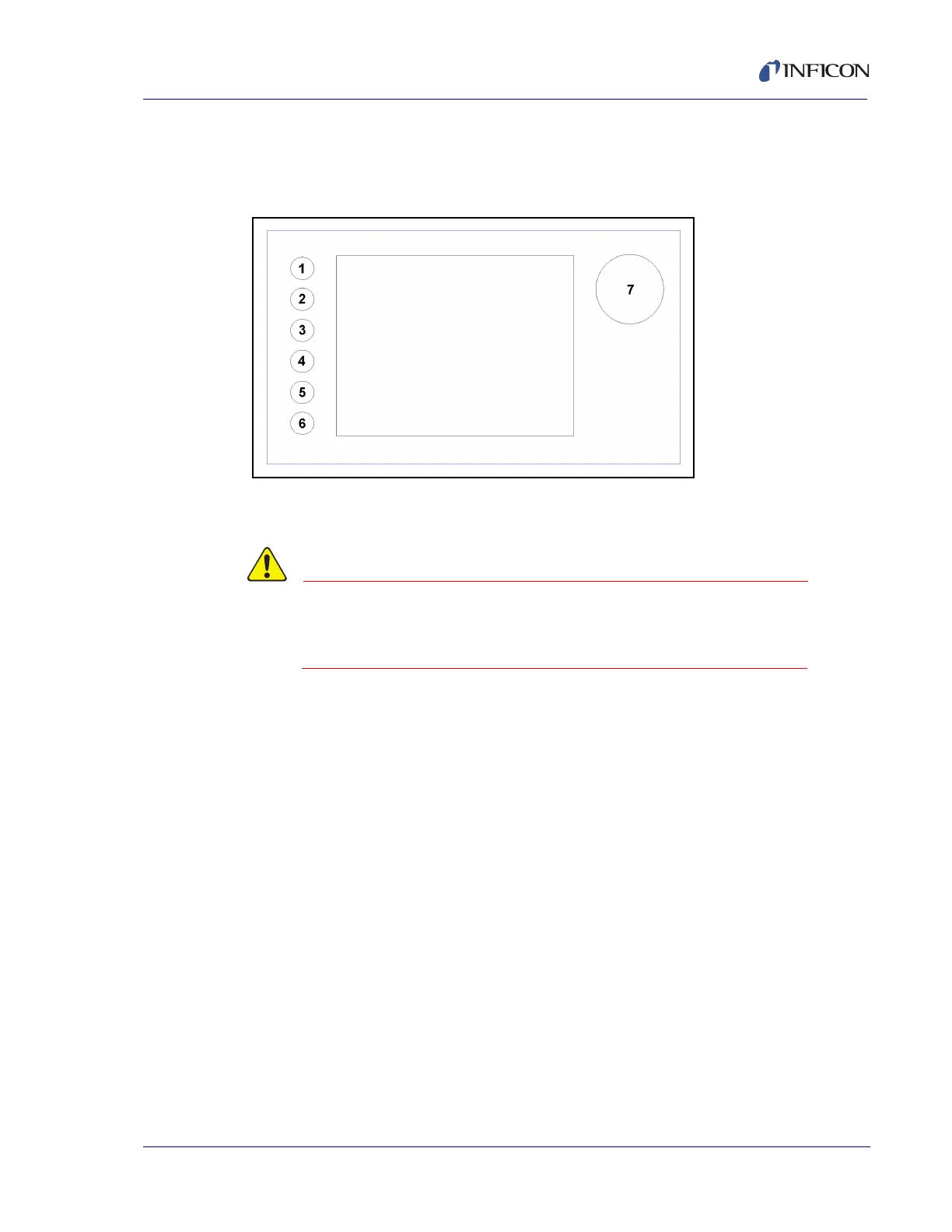

Figure 3-18 Password number designations
NOTE: Holding down buttons 1 and 6 while powering up SQC-310 sets the
password to 1111.
Holding down 1, 6, and 7 (control knob) will default
memory for the entire system to the factory settings. All
setting will be lost.
Alarm Sounds: Enables/disables the audio alarm associated with alarm
conditions (most severe).
Alert Sounds: Enables/disables the audio alarm associated with alert conditions
(less severe).
Attention Sounds: Enables/disables the audio alarm associated with attention
conditions (least severe).
3.12.1 Input and Relay Menus
The Input and Relay menus of the System Parameters menu allow the operator to
display and edit relays and inputs.
Inputs and relays already assigned are indicated in the Use column by Snsr
(Sensor), Src (Source), or LS (Logic Statement).
This menu also displays the current state of each input or relay. Items in green are
currently active. Those in red are inactive.
The Relay selections have an additional button (Turn On Relay) that allows each
relay to be toggled manually for testing purposes (see Figure 3-19). Relays are
returned to their proper defined state on exit from this screen.
