SQC-310 Operating Manual
3.4 Main Screen, Menu 2

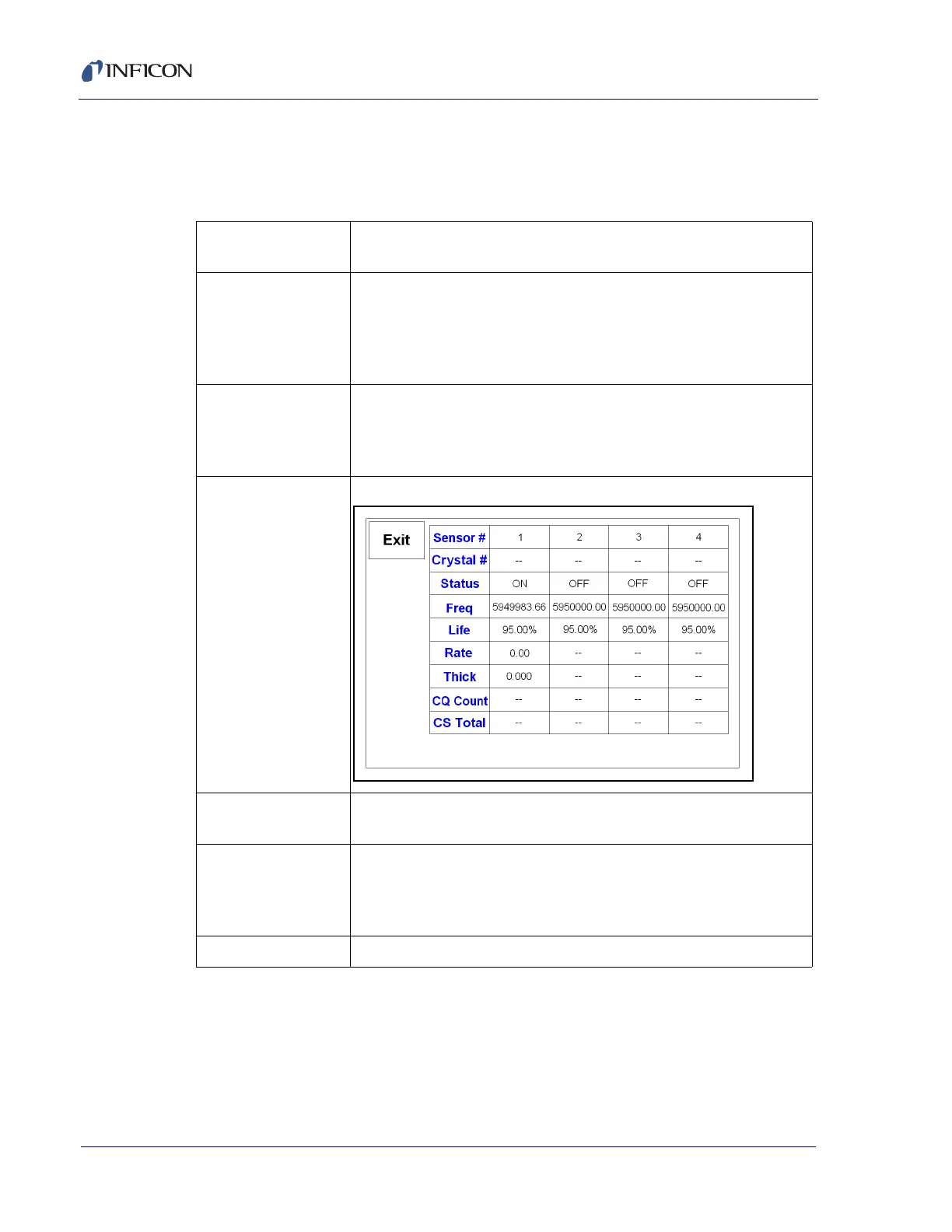

Table 3-2 describes the function of each button on Main screen, Menu 2.
Table 3-2 Main screen, Menu 2 buttons
Next
Menu
Sequences through each of the three Main screen menus.
Next
Graph
Sequences through the graph options for the Main screen. Choose
between rate, rate deviation, or output power graphs. The Y-axis
of the rate deviation graph can be scaled in the System Parameters
menu. A fourth display screen displays rate, thickness, and power
in large text format for easy viewing.
Next
Display
Toggles between data display options at the bottom of the Main
screen. The first display option displays rate, rate deviation,
thickness, and power readings. The second display option displays
rate, rate setpoint, thickness and thickness setpoint.
Sensor Info Replaces the Main screen with the Sensor screen.
Next
Layer
Sequences through each process layer. Press Next Layer to start
or restart the process at any layer.
Start
Layer
Each layer in a process can be defined as Auto Start or Manual
Start. Auto Start layers begin immediately on completion of the
previous layer. Manual Start layers require Start Layer to be
pressed. Only displayed when waiting to start a Manual Start layer.
Start/Reset Starts or halts the current process. Sets all outputs to zero.
