Chapter 1: Overview
System Overview
22/ 526 2.0 Eclipse User Guide
Audio Networking

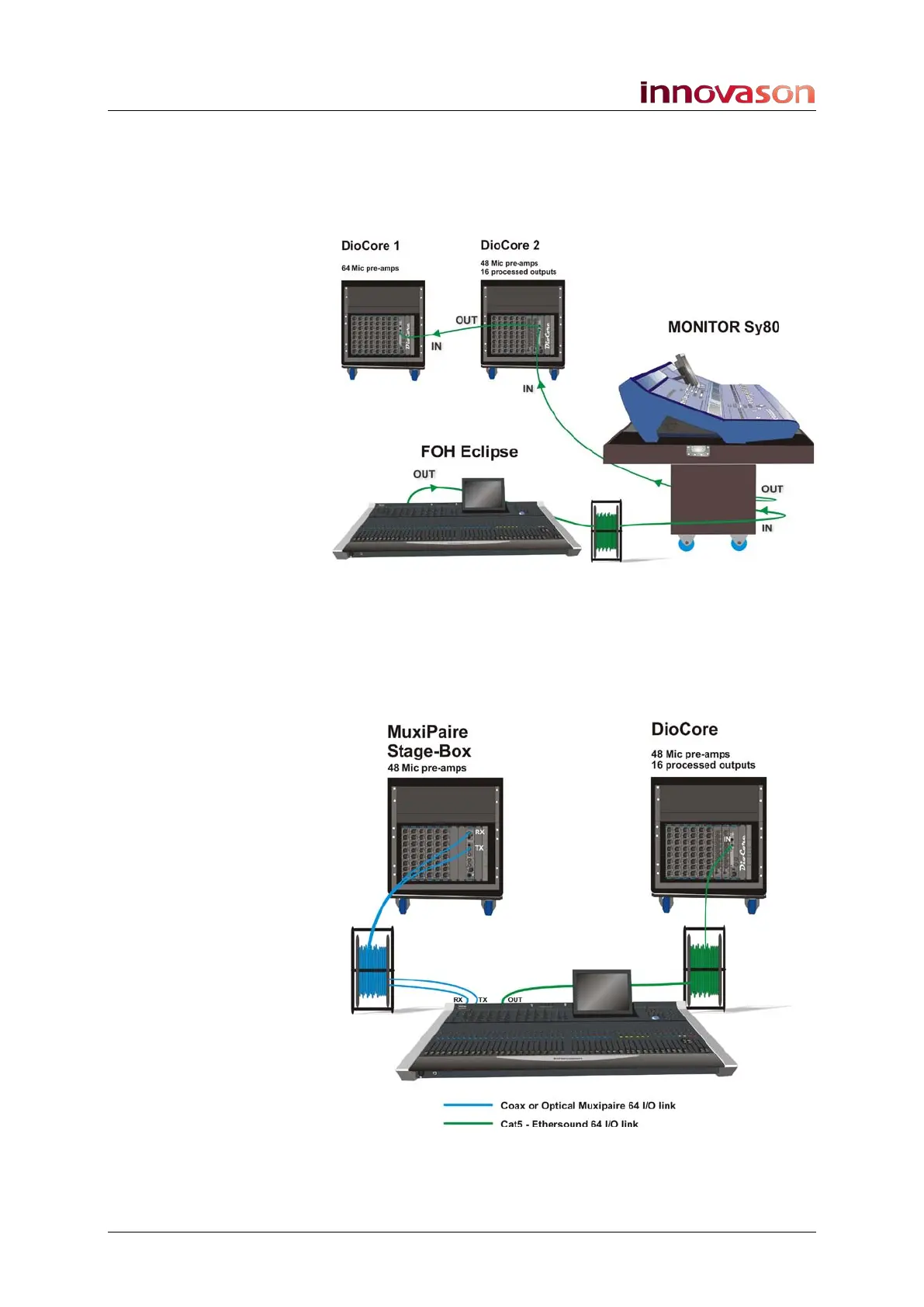

Ethersound may also be used to link I/O between consoles. The
example below shows two Innovason consoles sharing
resources from two DioCores:
If more than 64 inputs and 64 outputs are required on stage,
then an additional unit (the Muxipaire StageBox) may be added.
This StageBox works in parallel with the six I/O and internal
effects slots at the rear of the console. Therefore, to add a
StageBox, you may need to remove local I/O from the console:
See Page 263 for more details on networking and StageBoxes.
