Chapter 10: M.A.R.S.
Audio Routing
446/ 526 2.0 Eclipse User Guide
Audio Routing

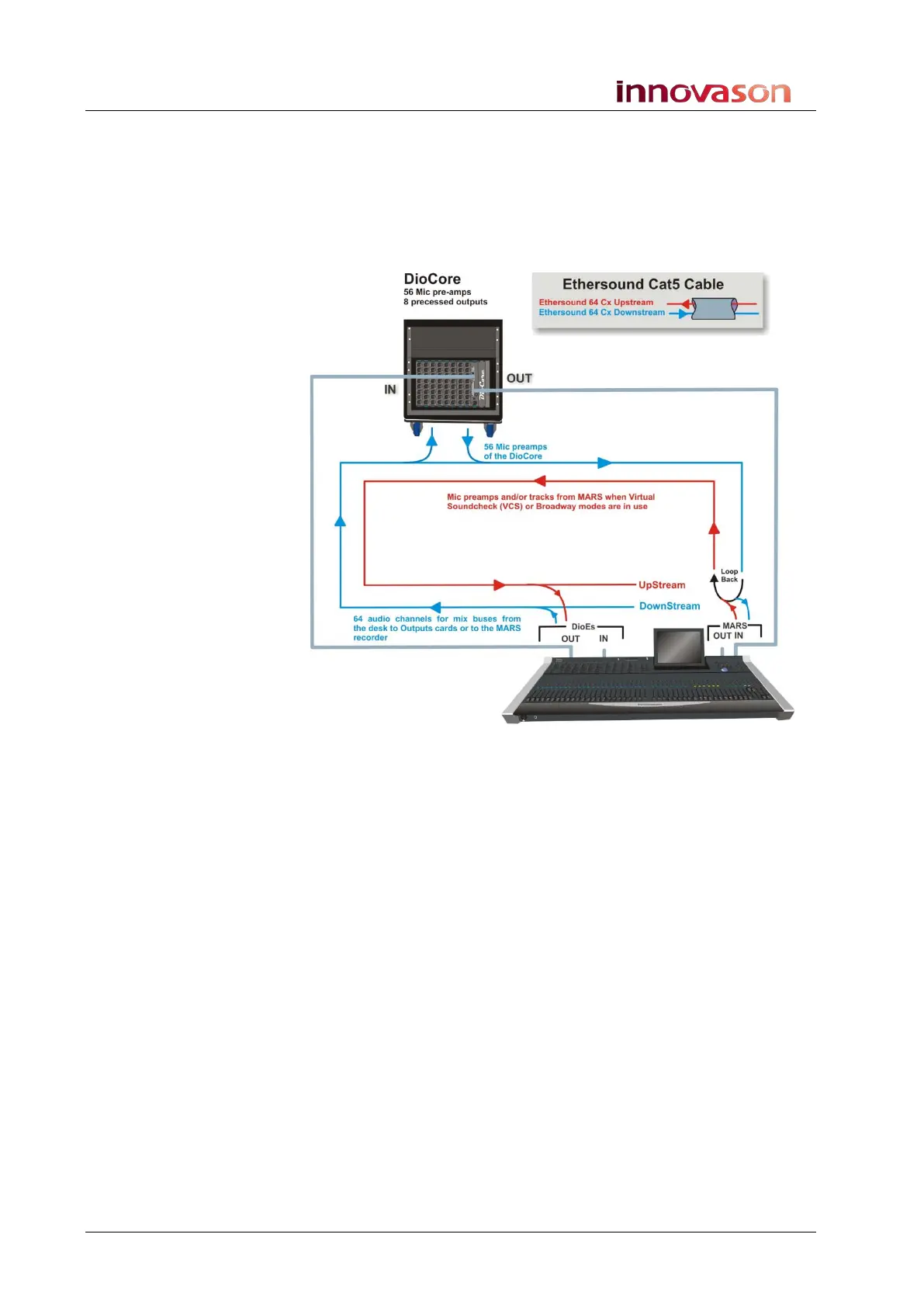

Audio is transferred to and from M.A.R.S. via Ethersound. The
diagram below shows the Ethersound connections and audio
streaming for a standard Eclipse configuration:
Recording
M.A.R.S. always records the downstream Ethersound channels it
receives (shown in blue), with Ethersound channel 1 recorded to
track 1, Ethersound channel 2 to track 2 and so on. With standard
patching, the result is:
• Tracks 1 to 56 = DioCore Mic Inputs 1 to 56
• Tracks 57 to 64 = are freely available and can be used to
record mix busses from the console.
