Chapter 6: Console Configuration
The Patch Direct Display
256/ 526 2.0 Eclipse User Guide

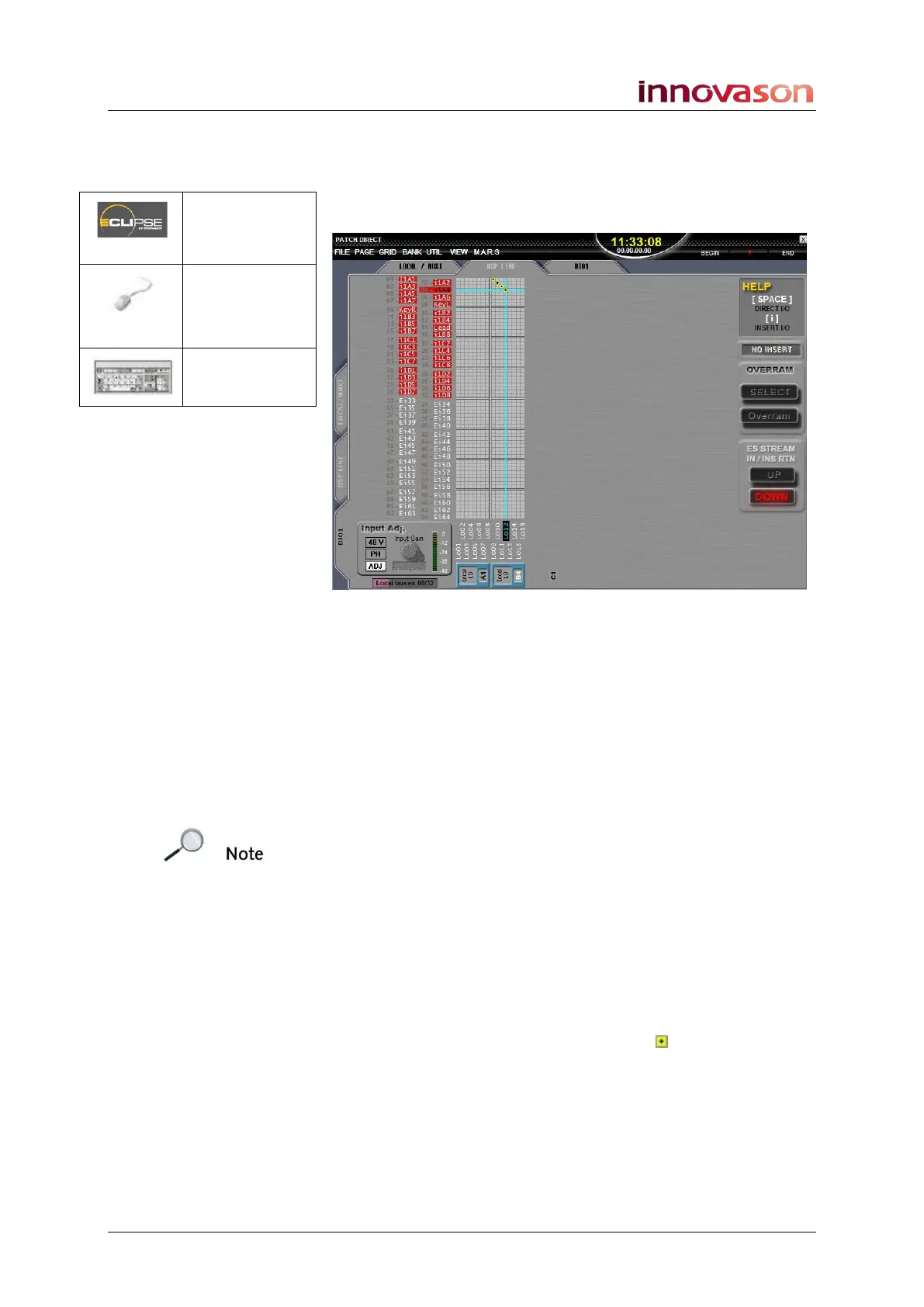

The Patch Direct Display
1. Select the PATCH DIRECT display by pressing the D
I/O button on the UTILITIES panel.
This grid is used to patch a source (on the left) to a destination
(on the bottom).
2. Use the DIO1, DSP LINE and LOCAL / MUXI tabs on
the left to select a source category.
If you select DIO1, then you will need to select the Ethersound
streaming direction for the source (ES STREAM IN):
• UP = upstream
• DOWN = downstream
Note that the direction you choose depends on the
configuration of your Ethersound network, see Page 263.
3. And the DIO1, DSP LINE and LOCAL / MUXI tabs at
the top to select a destination category.
If you select DIO1, then you will need to select the Ethersound
streaming direction for the destination (ES STREAM OUT).
4. To make or remove patch points, select the crosspoint
and press the [SPACE bar] on the console keyboard, or
right-click.
Connections are indicated by a yellow box within the grid.
The HELP area provides useful help text on how to perform the
next operation. Or you can interrogate an on-screen function by
clicking on its yellow question mark.
D I/O
(UTILITIES)
“GRID ->
Patch Direct
I/O”
[F10]
To Next Page
