Chapter 6: Console Configuration
The Muxipaire Stagebox
Eclipse User Guide 2.0 285/ 526
The Muxipaire Stagebox
Although multiple Ethersound devices can be accessed by one
console, the Ethersound network will only be able to send 64
input signals to and from the console(s).

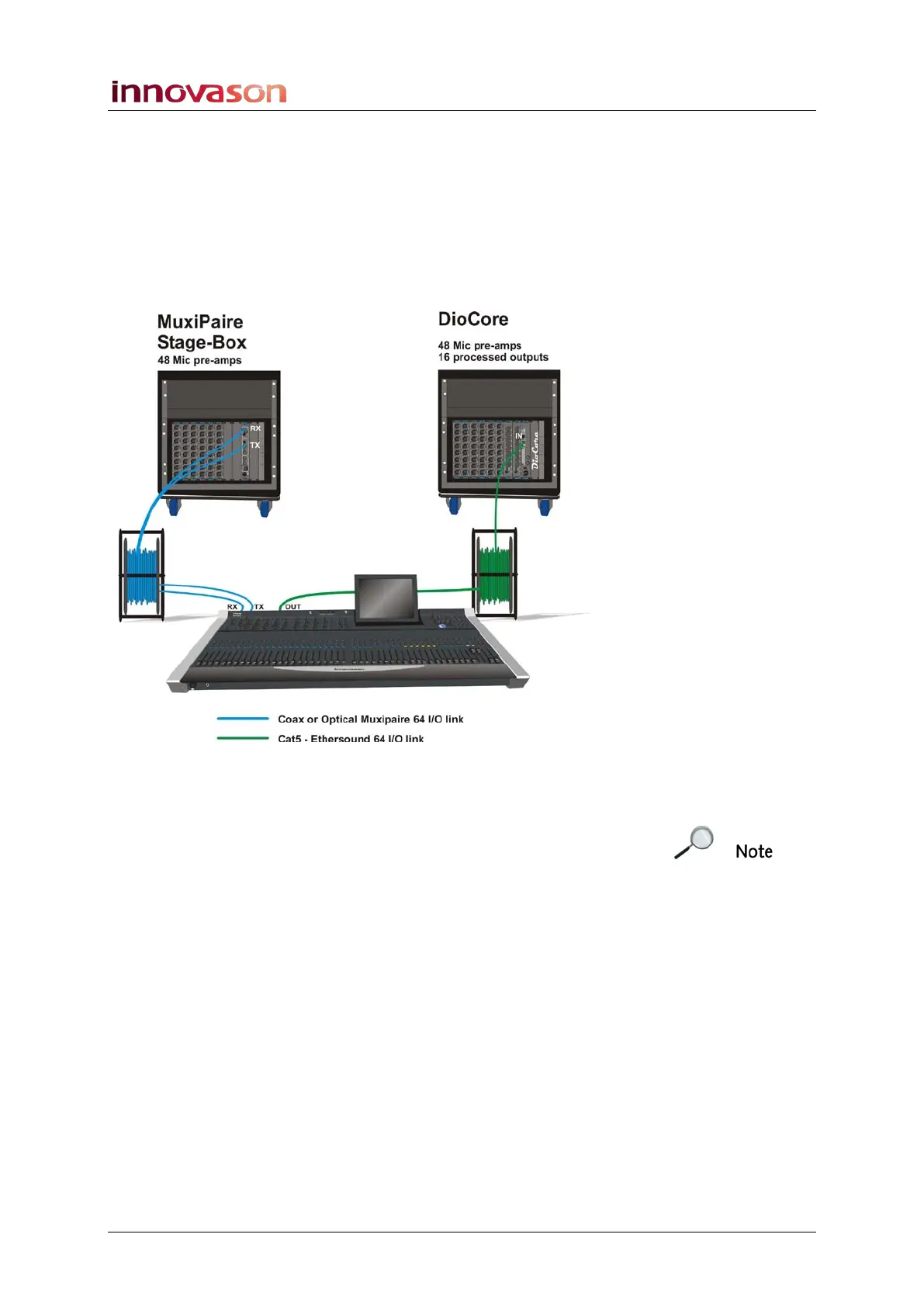

If you wish to handle more than 64 mic inputs from the stage,
you will need to complement the DioCore with a Muxipaire
Stage-Box:
This StageBox works in parallel with the A to H slots at the rear
of the console.
Note that you can fit an input card to Stagebox slot A and an
output card to the console slot A. But you cannot fit input cards
to both slots, or output cards to both slots without a conflict.
Therefore, in order to add a StageBox, you may need to
remove local I/O from the console.
