Chapter 1: Overview
System Overview
18/ 526 2.0 Eclipse User Guide
System Overview

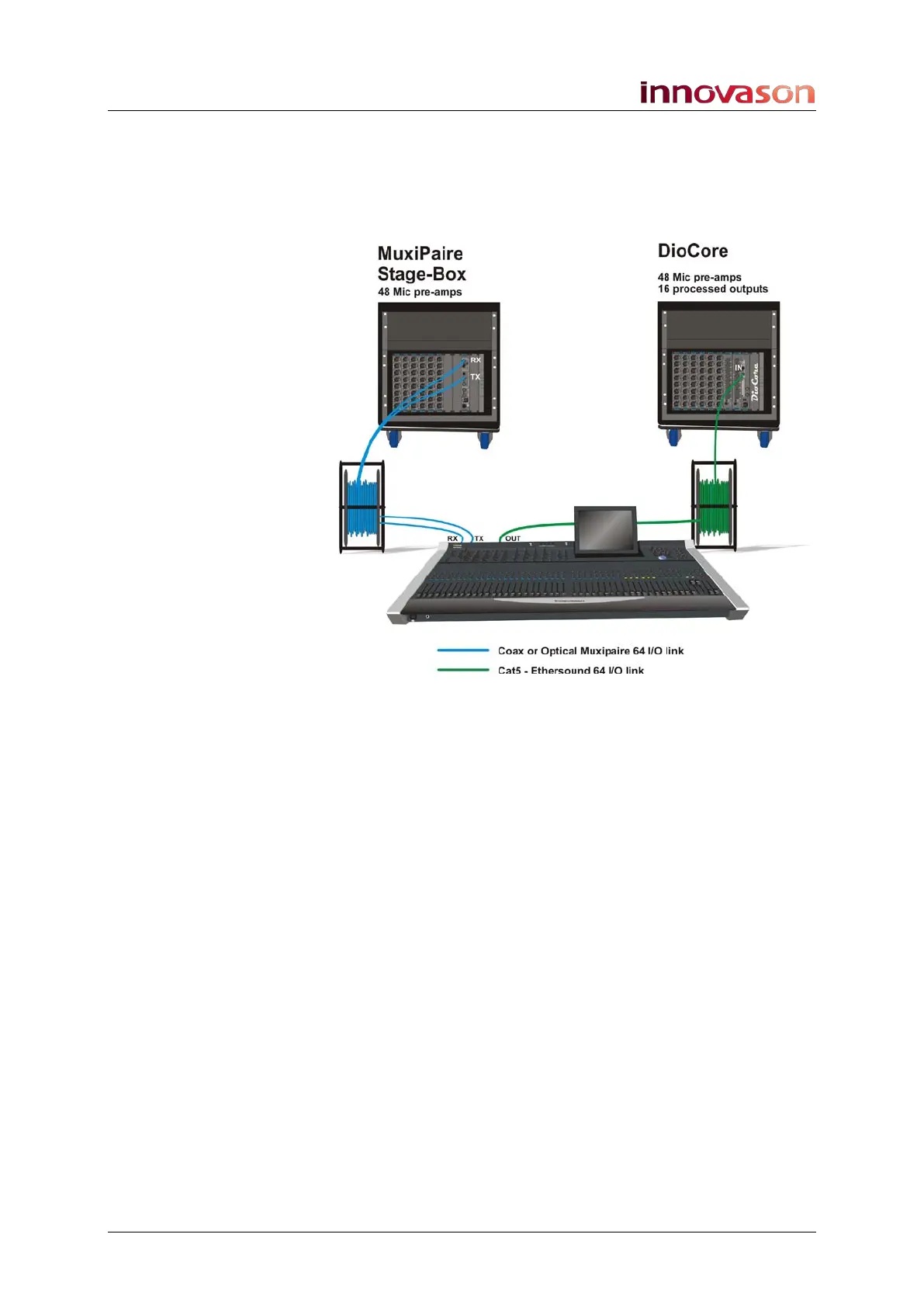

Unlike an analogue console, Eclipse consists of much more
than just the operating surface; a system may incorporate three
physical components:
• Console – houses the console’s DSP processing and
master control, six slots for local i/o and internal effects
cards, and an internal PC running the Nova software.
Note that the console frame also houses a second PC
and removable hard disk for M.A.R.S., Eclipse’s
integrated hard disk recorder.
• DioCore – an external unit connected to the console via
Ethersound, offering up to eight slots for input and
output cards. The DioCore may be located up to 100m
from the console on coax (CAT5) connection.
• Muxipaire Stagebox (optional) – an external unit
connected to the console via Innovason’s Muxipaire
interface (coax or fibre). This Stagebox works in parallel
with the six i/o and effects slots in the rear of the
console, providing a way to remote additional i/o onto
the stage if required.
