Chapter 5: Console Operation
Mix Bus Sends: Routing to Groups
Eclipse User Guide 2.0 163/ 526
Mix Bus Sends

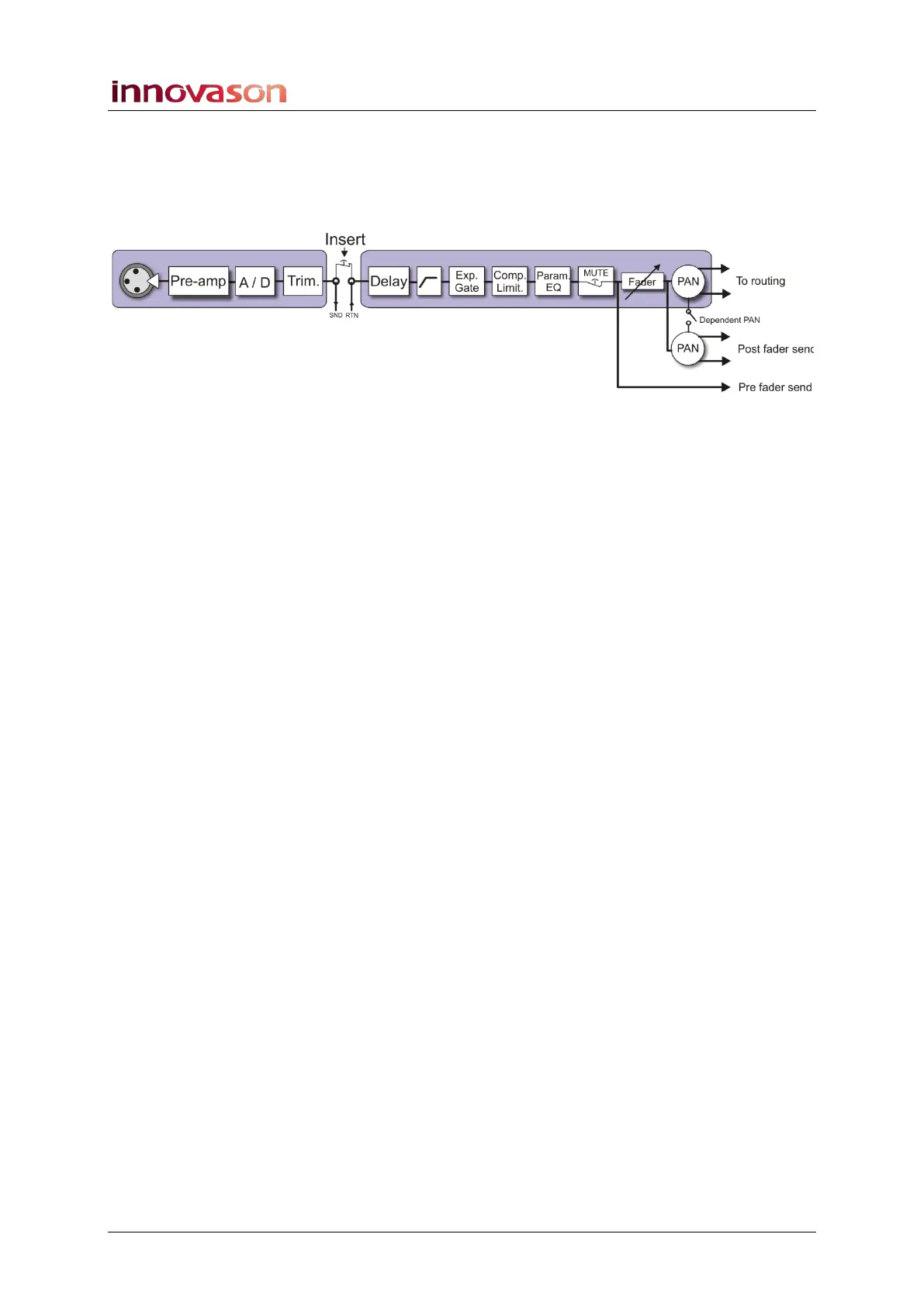

The following diagram shows the signal flow through an input
channel and the different sends available:
Routing to Groups
When you route to a Group, bus assignments are made
directly; there is no separate send level to assign. Assignments
are always post-fader. In addition, when routing to a stereo or
LRC bus, you can choose whether assignments are:
• Post-fader, following the channel Pan
• Post-fader and independent of channel Pan
Routing to Masters
Master bus assignments are also made directly; there is no
separate send level. All assignments are post-fader and always
follow the main channel Pan position.
Aux Sends
When you route to an Aux, you can turn the bus assignment on
or off and set the Aux send level. Aux sends can be:
• Pre-fader.
• Post-fader, following the channel Pan
• Post-fader and independent of channel Pan
Matrix Sends
Like Auxes, Matrix outputs have separate send levels.
Matrix send points are determined globally, and can be pre-
fader or post-fader from input channels and post-fader only
from output channels (other mix busses).
Assignments to a stereo Matrix always follow the main channel
Pan.
The operation of Matrix Sends is a little different to Aux Sends.
For details see Page 170.
