Chapter 4: Getting Started (The Standard Template)
Interrogating the Smart Panel
Eclipse User Guide 2.0 93/ 526
Interrogating the Smart Panel

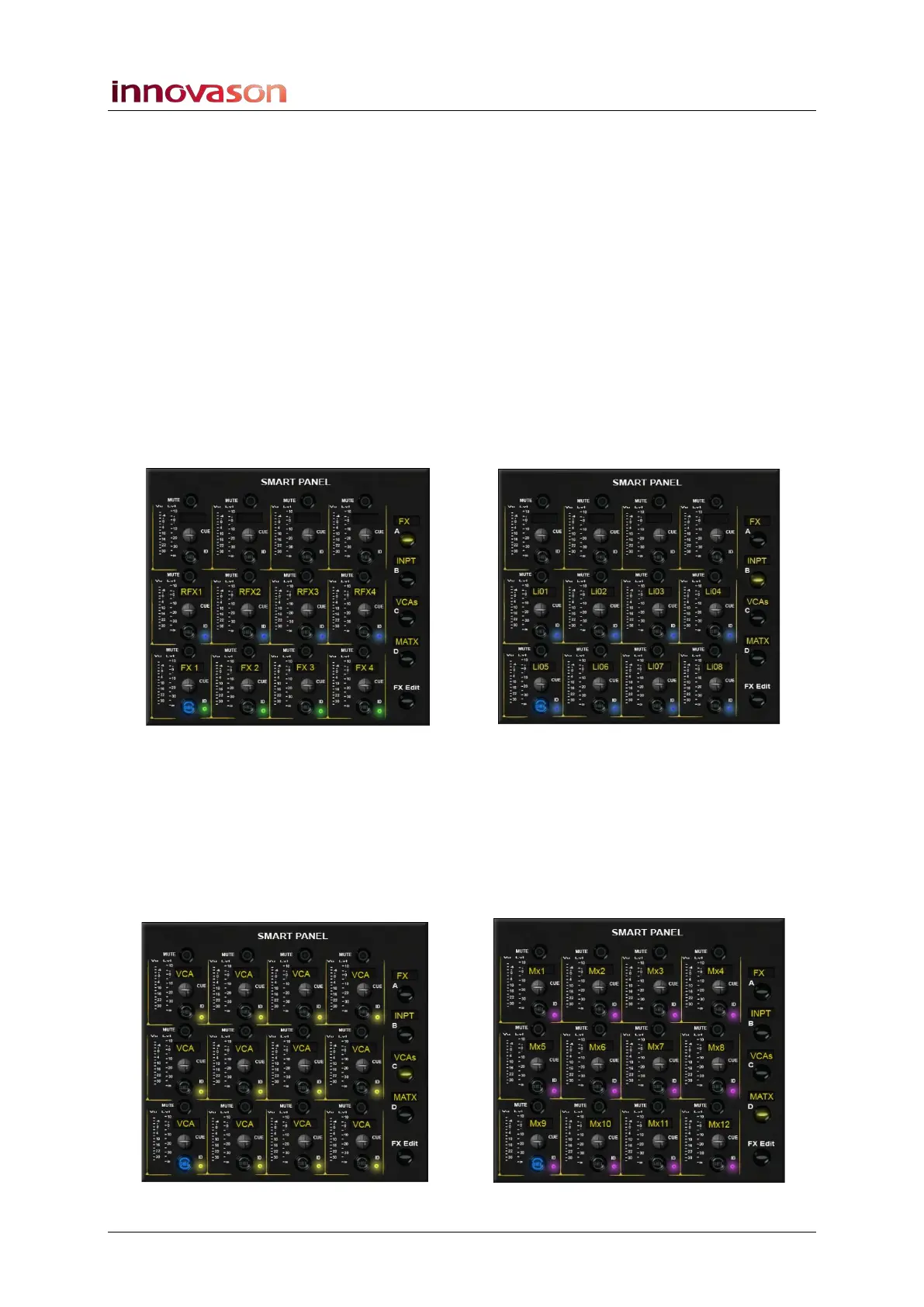

Press the A, B, C and D buttons to view the four layers of the
Smart Panel in a similar manner:
Layer A (FX)
8 controls have been configured to provide 4 mono FX sends
(Auxes) and 4 stereo FX returns to/from 4 internal stereo
Effects bays (FM-8VB card). They are routed from all input
channels, and prepared as post-fader sends.
Layer B (INPT)
8 controls are used in this layer as input channels patched from
the 8 mic/line inputs at the rear of the console (SI-8D3 card).
Layer C (VCAs)
This layer provides 12 VCA channels.
Layer D (MATX)
This layer provides 12 Matrix outputs patched to local UM-8
outputs at the rear of the console.
