Signal Flow
Eclipse User Guide 2.0 23/ 526
Signal Flow
The console is equipped with a DSP engine which can mix up
to 104 input channels simultaneously onto 48 mix busses.
Input channels may be mono or stereo, and busses may be
mono, stereo or stereo LRC. Note that a stereo channel uses
two DSP resources; a LRC bus uses three DSP resources.

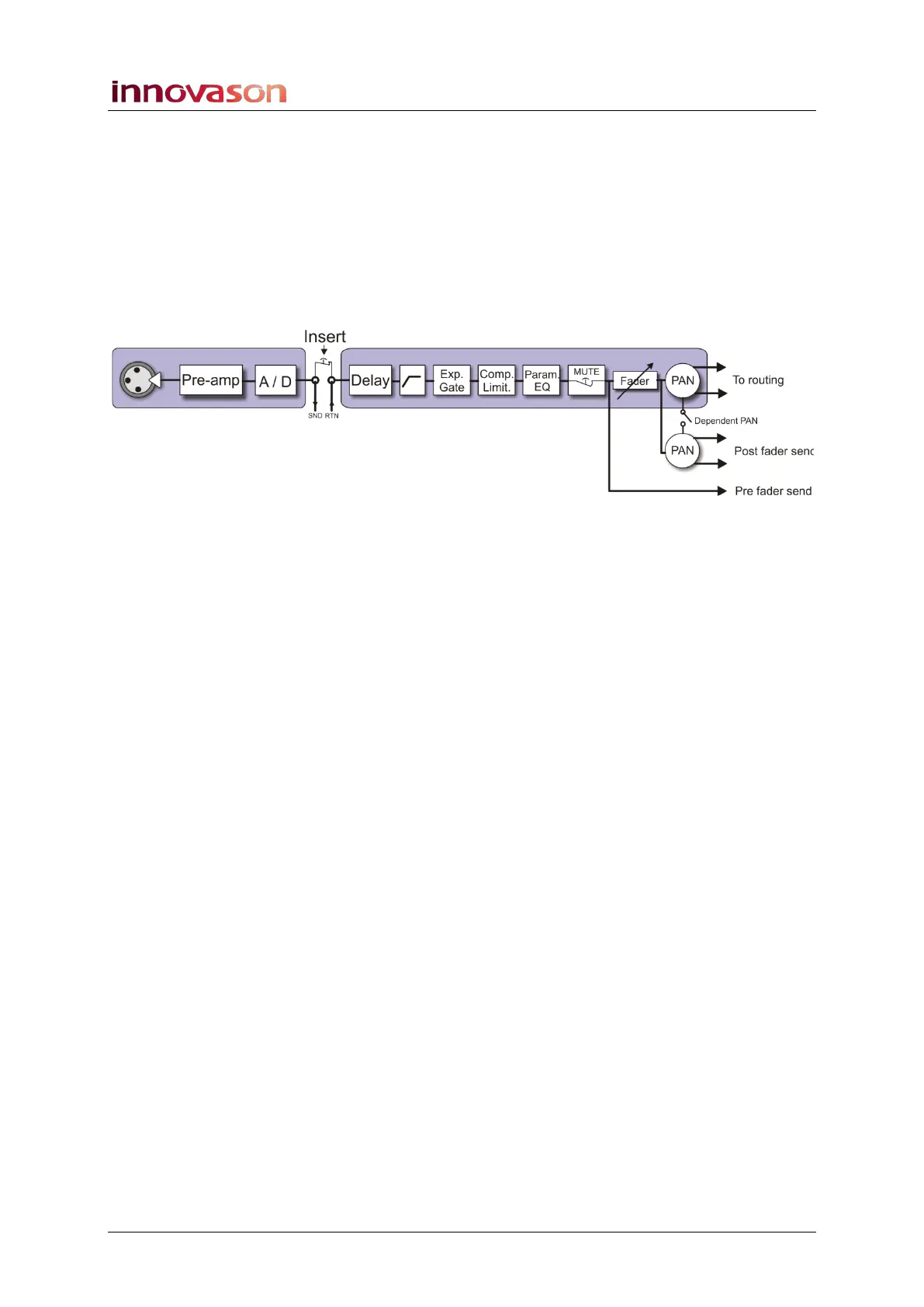

Each input channel provides:
• Analogue input control (preamp gain and 48V)
• Digital input control (digital gain trim and phase reverse)
• A Low cut filter
• Dynamics (independent Gate and Compressor)
• Delay – assignable from a pool of 48 delay resources.
• Parametric EQ (4-band, with bands 1 and 4 switchable
to a shelf or high/low pass filter)
• Pre-fader insert (external device or internal effects bay)
• Pan (or Balance and Width on stereo channels)
• Main level, Mute and Cue
• Aux send level (pre-fader, post-fader or independent)
• Matrix send level (pre or post-fader)
