Chapter 3: Operating Principles
Fader Strips and the Smart Panel
58/ 526 2.0 Eclipse User Guide
Fader Strips and the Smart Panel

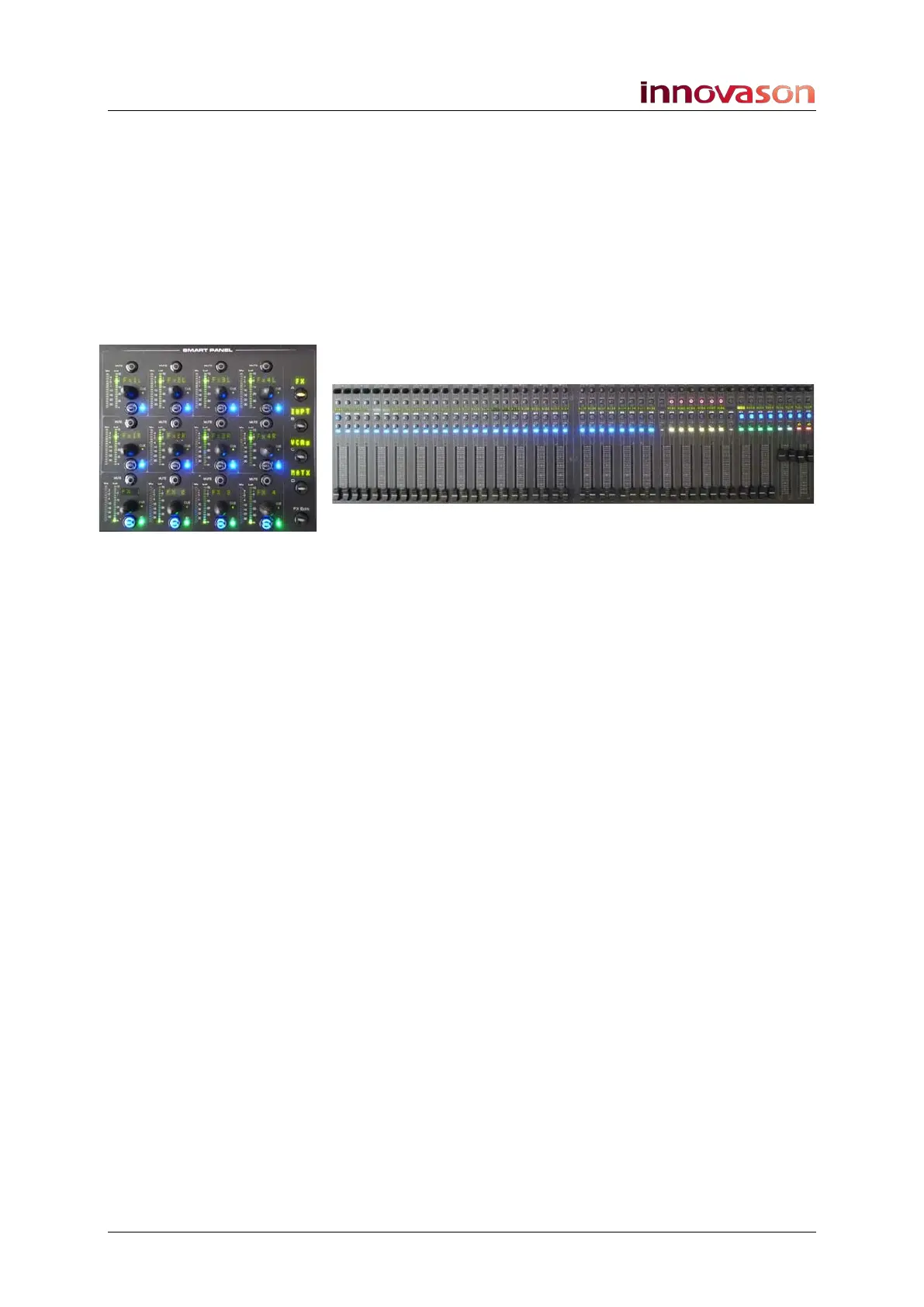

Eclipse provides 48 Fader strips plus 48 Smart Panel rotary
controllers (available in 4 layers: A, B, C and D). Each may
control any input, output (Aux, Group, Master or Matrix) or act
as a VCA or Smart Fader.
IDs
To help identify the different channel types, each strip has a
colour coded ID: inputs (blue), Auxes (green), VCAs (yellow)
and so on:
The IDs are colour coded as follows:
• Input Channels – Blue
• Smart Faders – Light Blue (almost white!)
• Groups - Pink
• Auxes – Green
• Masters – Red
• Matrices - Violet
• VCA Masters – Yellow
• Monitoring Level – Orange
• Crossfade Time – White
