Chapter 5: Console Operation
Mix Busses: Signal Flow
Eclipse User Guide 2.0 159/ 526
Mix Busses
The console is equipped with a DSP engine which enables you
to mix up to 104 input channels simultaneously onto 48 mix
busses.
Any mix bus (Aux, Group, Master or Matrix) may be mono,
stereo or stereo LRC. Note that a stereo bus uses two DSP
resources; a LRC bus uses three DSP resources.
In addition to the 48 configurable mix busses, a stereo bus is
included for monitoring.
Note that up to 32 mix busses may be patched to the Muxipaire
interfaces (at the rear of the console or in a Muxipaire
Stagebox). There is no limit on mix bus patching to a DioCore
(Ethersound interface). Please see the “Eclipse Technical
Manual” for further details.
Signal Flow
Each of the 48 mix busses may be configured as an Aux,
Group, Master or Matrix output. The differences between the
bus types are:

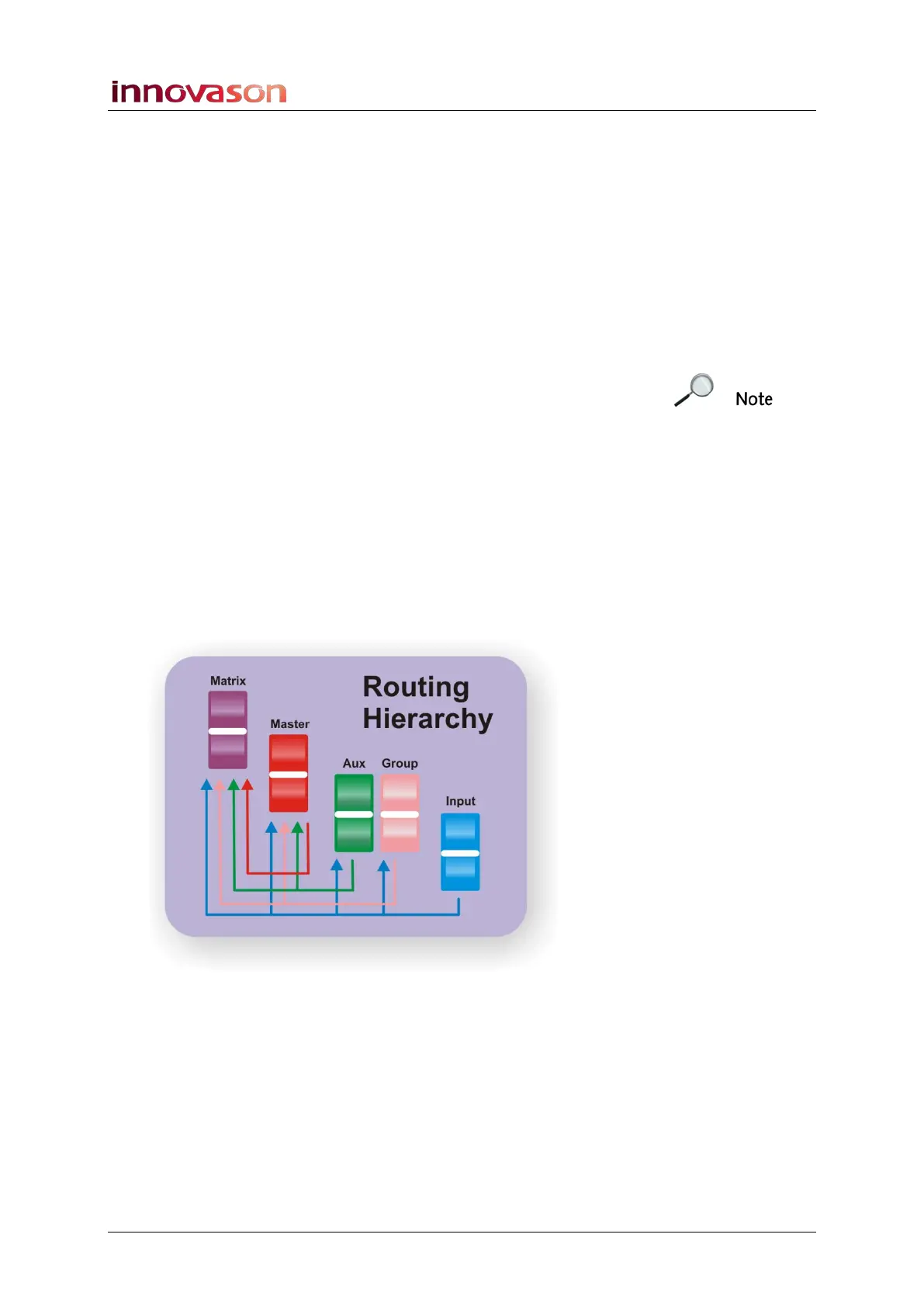

• Routing Hierarchy - channels are routed to busses
according to the following hierarchy:
o Input channels may be routed to any mix bus
o Auxes or Groups may be routed to a Master or Matrix
o Masters may be routed to a Matrix
• Send Levels - routing to Groups and Masters is a direct
one-to-one assignment. Auxes and Matrices have a
separate send level.
