8 ADDITIONAL FUNCTIONS DACS-W Operation Manual
8-8
8.4 Installation Engineer Level Functions
This section contains instructions for operating the Installation Engineer Level (Level 2) functions.
8.4.1 Span Adjustment Print
The Span Adjustment records can be printed for equipment with printer.
Follow the procedure shown below to operate Span Adjustment Print.
8.4.2 Rejector Direction Setting
This menu is used to set the rejector direction (See Figure 8-8) and output signal parameters (See Table
8-2).
To set these functions, follow the procedure described below.

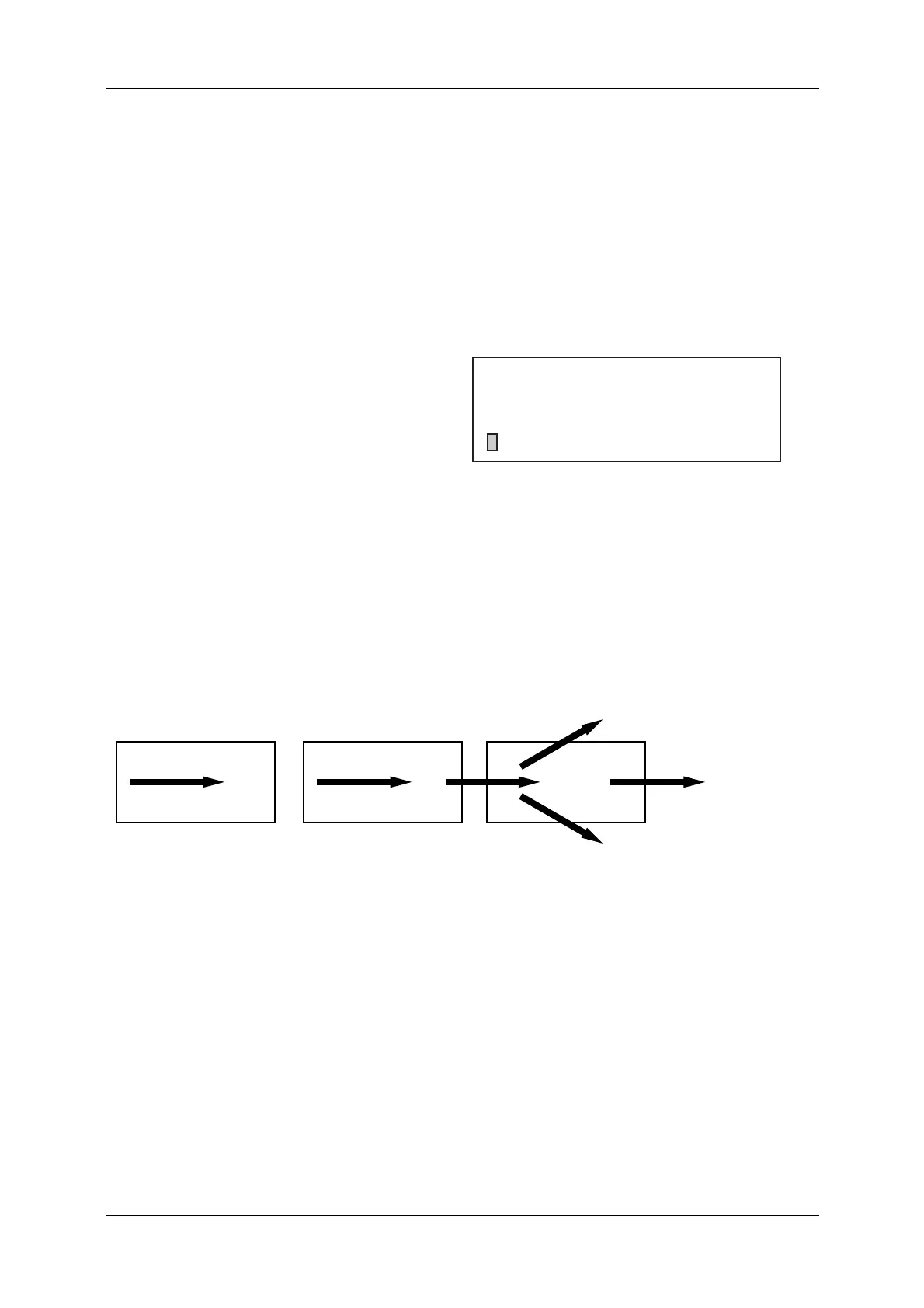

Figure 8-8 Rejector Direction Definition
8.4.2.1 Proper Weight Reject Direction
This item defines which direction proper packs are diverted.
Follow this procedure to set parameter.
1. Call up the Statistics & Print Setting menu.
2. Press the ENTER key to scroll the cursor to
Span Adjustment Print.
3. Press the SELECT ITEM key.
Span Adjustment Print will be executed
Figure 8-7 Statistics & Print Setting
[ Statistics & Print Setting]
* Batch Total Clear
* Clear All Totals
* Span Adjustment Print
STOP
INFEED CONVEYOR WEIGH CONVEYOR
LEFT
RIGHT
CENTER
To Next Page
