8.4.2.3 Under Weight Reject Direction
This item defines which direction underweight packs are diverted.
Follow this procedure to set parameter.
8.4.2.4 Metal Detect Reject Direction
When a metal detector is installed, this item defines which direction packs with metal detected in them
are diverted.
Follow this procedure to set parameter.
1. Display the Reject Setting menu.
2. Press or to align the cursor with
"Under Wt. Rej. Dir.".
3. Press .
The Under Wt. Rej. Dir. menu appears.
4. To set "left" as the reject direction, Press [0].
To set "right" as the reject direction, Press [1].
To set "center" as the reject direction, Press
[2].
To set "stop" as the reject direction, Press [3].
The setting for this parameter will appear on
the Reject Setting menu.

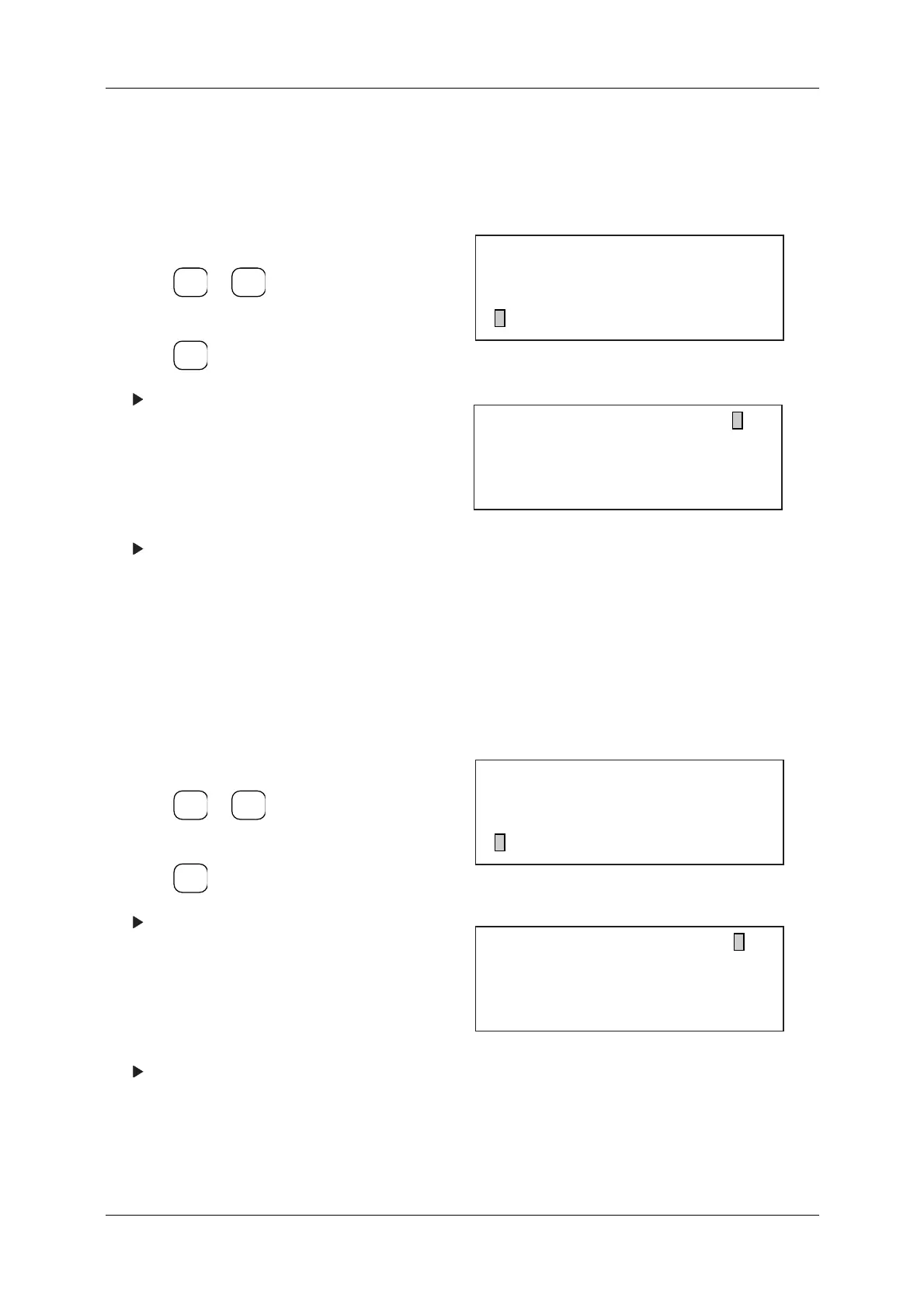

Figure 8-14 Reject Setting Menu
Figure 8-15 Under Wt. Rej. Dir. Menu
1. Display the Reject Setting menu.
2. Press or to align the cursor with
"Metal Detect Rej. Dir.".
3. Press .
The Metal Detect Rej. Dir. menu appears.
4. To set "left" as the reject direction, Press [0].
To set "right" as the reject direction, Press [1].
To set "center" as the reject direction, Press
[2].
To set "stop" as the reject direction, Press [3].
The setting for this parameter will appear on
the Reject Setting menu.
Figure 8-16 Reject Setting Menu
Figure 8-17 Metal Detect Rej. Dir. Menu
ENTER

▼

▲

SELECT
ITEM
[Reject Setting]
* Proper Wt. Rej. Dir. Center
* Over Wt. Rej. Dir. Right
* Under Wt. Rej. Dir. Left
[Under Wt. Rej. Dir. ]
0... Left 1... Right
2...Center 3... Stop
ENTER

▼

▲

SELECT
ITEM
[Reject Setting]
* Over Wt. Rej. Dir. Right
* Under Wt. Rej. Dir. Left
* Metal Detect Rej. Dir. Left
[Metal Detect Rej. Dir. ]
0... Left 1... Right
2...Center 3... Stop
