DACS-W Operation Manual 7 CLEANUP PROCEDURES
7-3

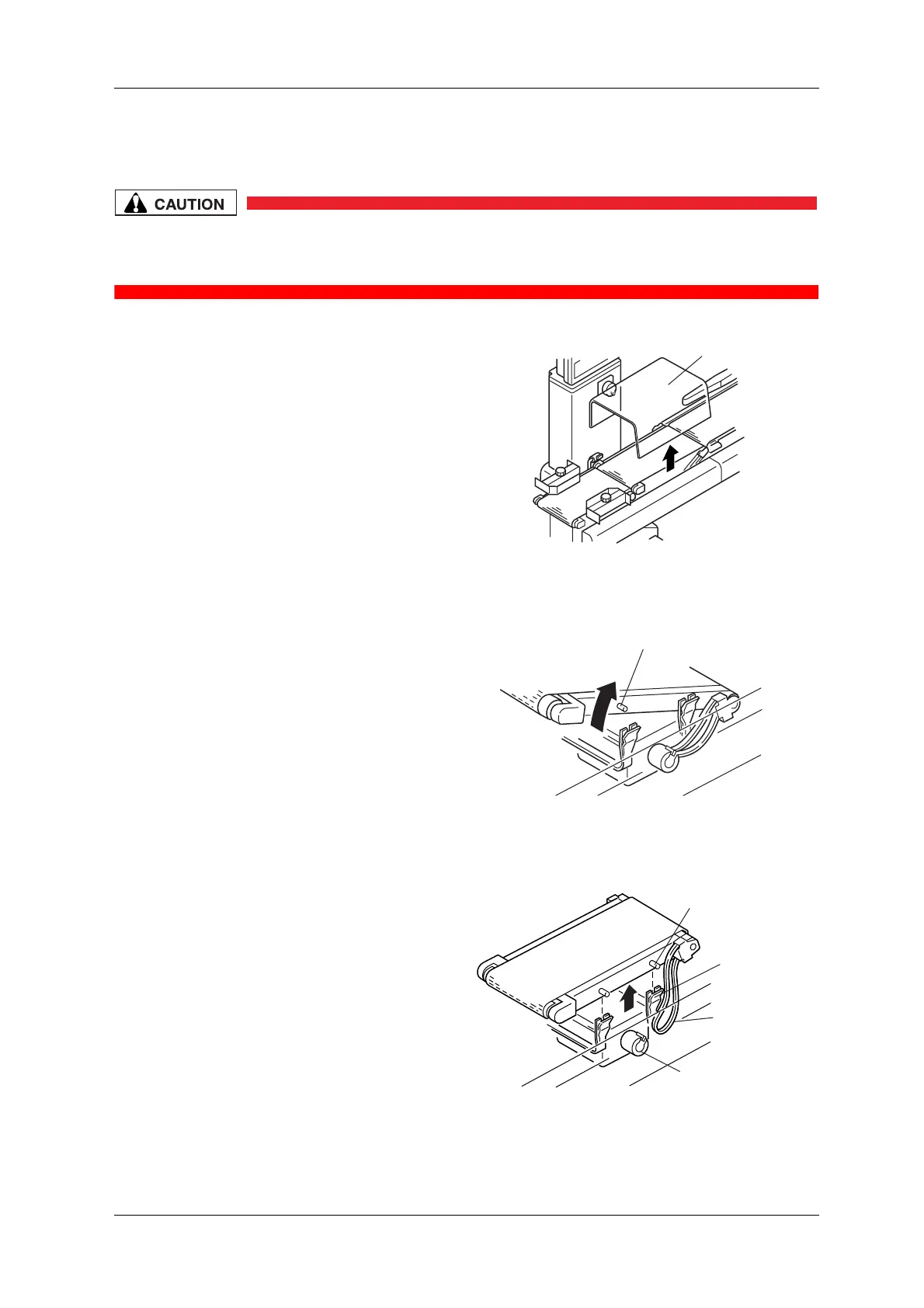

7.3 Weigh and Infeed Conveyor Cleaning
•
••
• When removing or mounting the weigh conveyor, do not apply excessive
force which may damage the load cell.
1. Lift up and remove the wind cover.
Figure 7-2 Wind Cover Removal
2. Lift up the product infeed end of the weigh or
infeed conveyor, then remove the shaft A from
the hook A as shown.
Figure 7-3 Weigh Conveyor Removal (1)
3. Lift up the product discharge end of the weigh
or infeed conveyor, then remove the shaft B
from the hook B.
4. Remove the timing belt from the pulley.
5. Clean the dismounted conveyor with a damp
soft cloth.
6. Remount the conveyor in reverse order to
complete the procedure.
Figure 7-4 Weigh Conveyor Removal (2)
WIND COVER
SHAFT A
SHAFT B
TIMING BELT
PULLEY
HOOK B
