9.4.3 Fuse Replacement
Two type of fuses are used in this equipment. When a fuse blows, check which type it is and replace.
φ5 × 20 250V 3.15A
φ5 × 20 250V 5A
Replace fuses according to the procedure shown below.
•
••
• This operation should be only performed by a qualified electrician.
3. Press .
The conveyor starts.

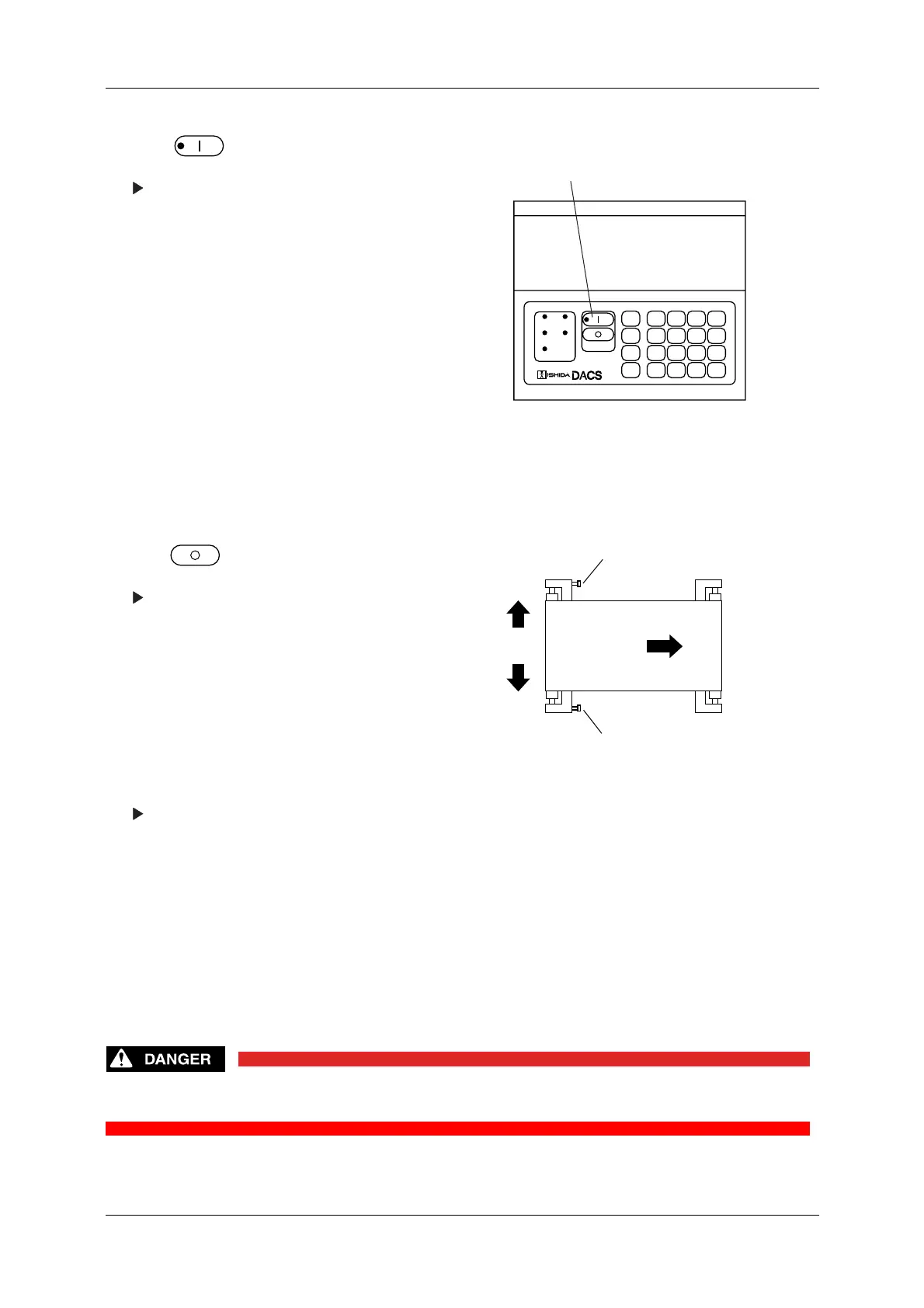

Figure 9-8 operation panel
4. Check that the belt is correctly aligned in the
center of the conveyor.
5. Press .
The conveyor stops.
6. If the belt is shifted towards Side A, tighten
Bolt A.
If the belt is shifted towards Side B, tighten
Bolt B.
7. Repeat steps 3) to 6) until belt tension is
correct.
8. Reattach the wind cover.
Belt tension adjustment is complete.
Figure 9-9 Tension Adjustment
OVER
PROPER
DYNAMIC
CALIBRATE
NET
UNDER
CONVEYOR
SET
UP
INFO
PRINT
7
4
1
0
8
5
2
.
9
6
3
C
EXIT
▲
ENTER
▼
DIGITALAUTOMATICCHECKINGSYSTEM
→0←
SELECT
ITEM
START KEY
TENSION
ADJUSTMENT
BOLT A
TENSION
ADJUSTMENT
BOLT B
A
B
