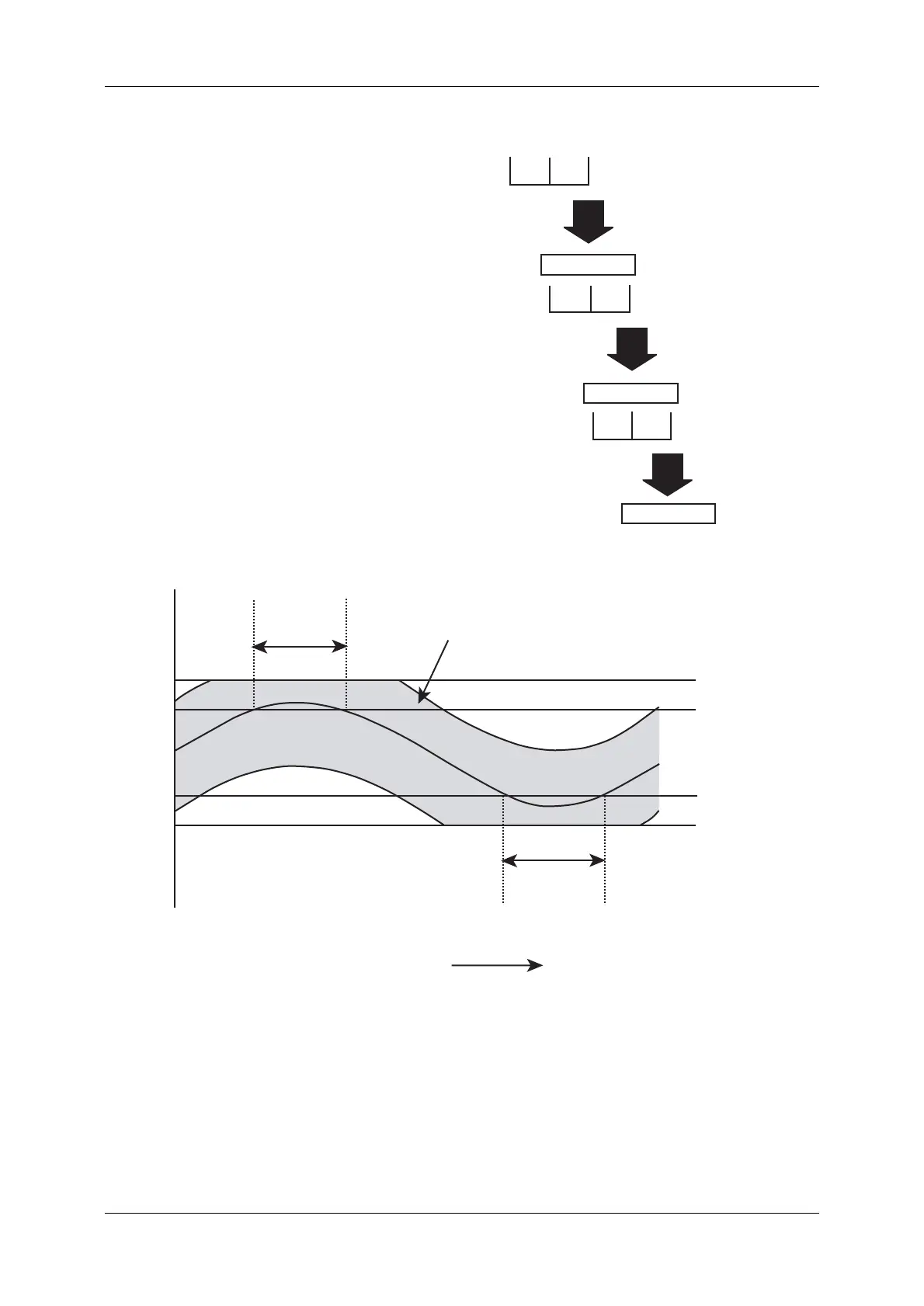

Figure 11-35 PROPER WEIGHT RANGE MOVEMENT RESULTING FROM REF. WT. REVISION
As the reference weight value is revised, the upper and lower limits are revised accordingly. However,
the upper limit value never exceeds the reference weight revision lower limit value. In other words, any
product pack which exceeds the reference weight revision upper limit is judged as overweight, and any
product pack which weighs less than the reference weight revision lower limit is judged as underweight.
• If the reference weight exceeds the reference weight alarm upper limit, a buzzer sounds.
• If the reference weight is less than the reference weight alarm lower limit, a buzzer sounds.
PROPER WT. PACK NUMBERS (e.g. Pack
Number 1 is the 1st proper weight product to be
checkweighed)
Average weight of proper weight Pack Numbers 1,
2 and 3 will be used as the Reference Weight in the
next weighing.
Average weight of proper weight Pack Numbers 2,
3, and 4 will be used as the Reference Weight in
next weighing.
Average weight of proper weight Pack Numbers 3,
4, and 5 will beused as the Reference Weight in the
next weighing.
1 2 3 4 5 6 ...
Next Ref. Wt.
Next Ref. Wt.
Next Ref. Wt.
UPPER
LIMIT
REF.
WT.
LOWER
LIMIT
BUZZER
ALARM
INTERVAL
PROPER WEIGHT RANGE
REF.WT.REV.
UPPER LIMIT
REF.WT.REV
ALARM L.L.
REF.WT.REV
LOWER LIMIT
REF.WT.REV
ALARM L.L.
BUZZER
ALARM
INTERVAL
PROPER ITEM CHECK COUNT
