Start-up
154
Pos: 28.23 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulik/ Hydraulikanschl uss Bild BiG Pack @ 17\mod_123 6332366948_78.doc x @ 204875 @ @ 1

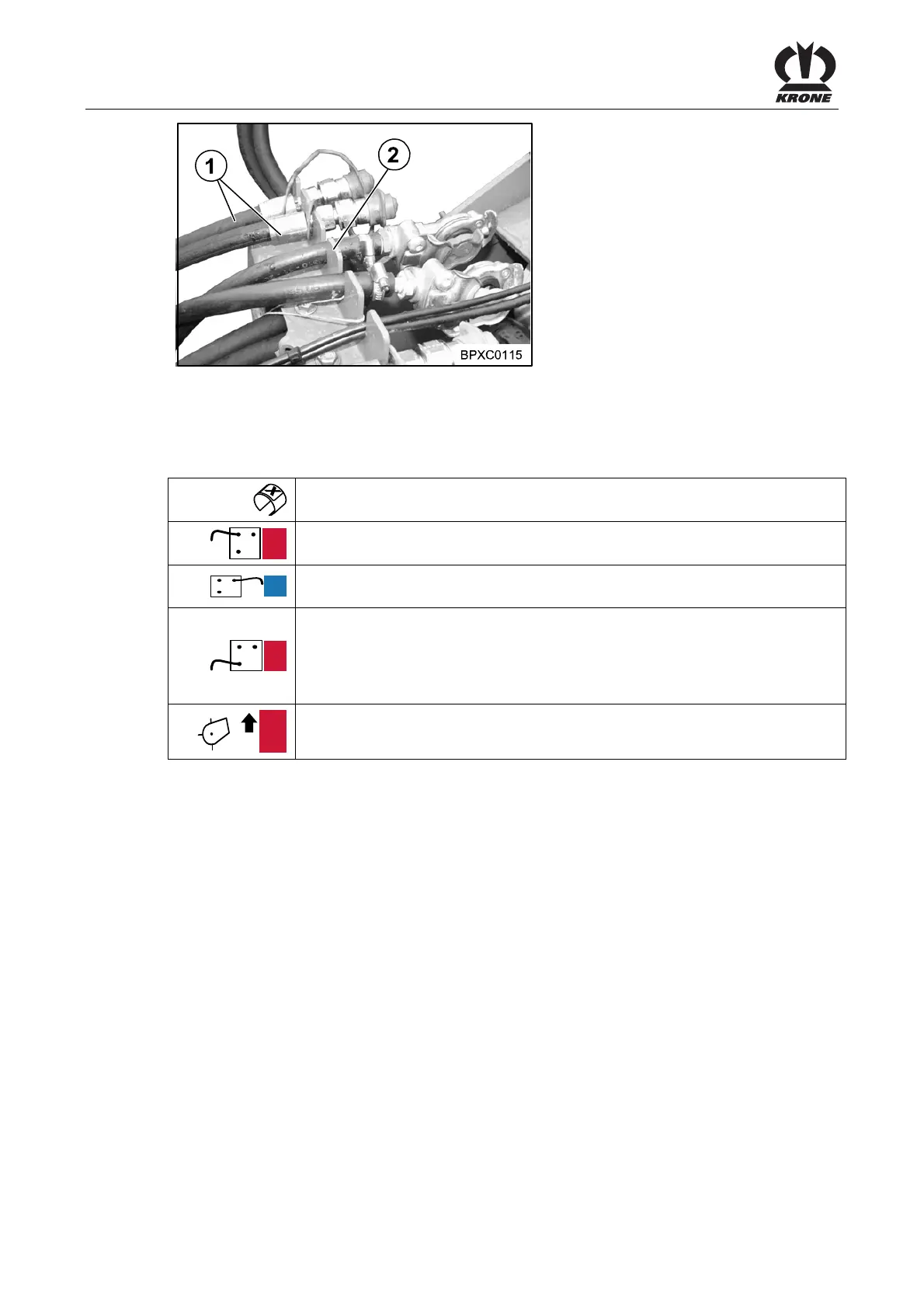

Fig. 94
Pos: 28.24 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulik/ Hydraulikanschl uss allgemein Big Pack HS Ba ureihe @ 62\mod_129949588 1531_78.docx @ 572211 @ @ 1
Depending on the version supplied a varying number of control units are required on the tractor
to operate the machine.
Pos: 28.25 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Komfort - Ele ktronik @ 61\mod_129 9223046976_78.doc x @ 570919 @ @ 1
Comfort - Electronic
Pos: 28.26 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulik/ Hydraulikanschl uss Tabelle Komfort- Elektronik Big Pack HS Baur eihe @ 62\mod_1299496317 159_78.docx @ 572238 @ @ 1
1
P
Connection for control block for Comfort version
• Pressure line ((red 1) nominal width 15)
1
T
Connection for control block for Comfort version
• Return flow line ((blue 1) nominal width 18)
3
LS
Connection for control block for Comfort version
• If required, couple load-sensing line - nominal width 12 - (red 3) to the
LS connection of the tractor (optional for Comfort version) (further
information can be obtained from the operating instructions provided by
the manufacturer of the tractor).
2
Single-action control unit (red 2):
Lift pick-up
