Start-up
155
Pos: 28.28 /BA/Einlei tung/Maschinenüber sicht/Großpackenpr essen/Medium - Ele ktronik @ 61\mod_1299223 169539_78.doc x @ 570971 @ 2 @ 1
Medium Version Electronics
Pos: 28.29 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulik/ Hydraulikanschl uss Tabelle Medium-E lektronik Big Pack HS Baur eihe @ 62\mod_1299499276 293_78.docx @ 572295 @ @ 1
4

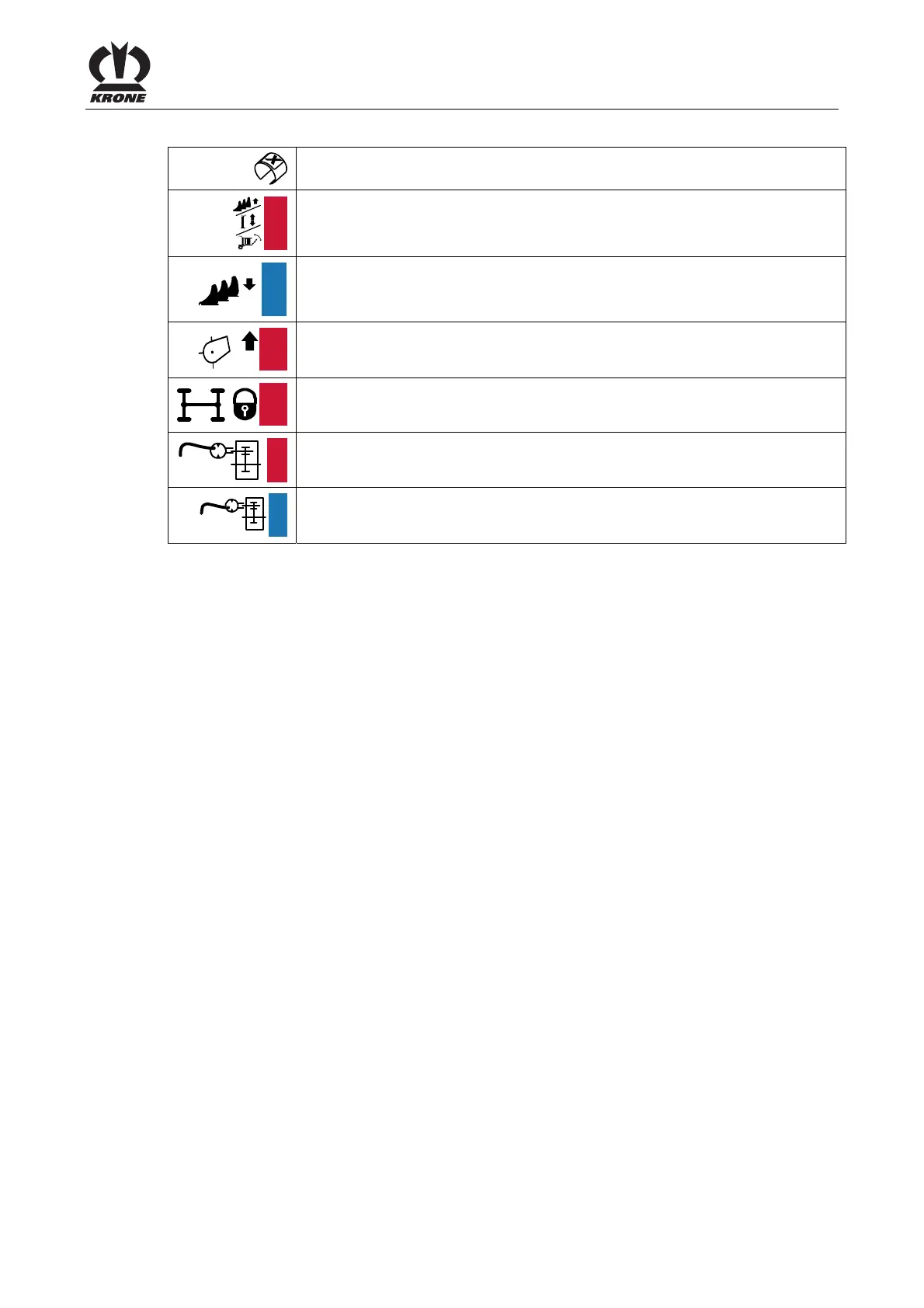

Connection for control block for Medium version
• Close blade bar, lift/lower parking jack, open/close roller chute,
deploy/retract bale ejector (red 4)
4
Connection for control block for Medium version
• Open blade bar (blue 4)
2
Single-action control unit (red 2):
• Lift pick-up
7
Single-action control unit (red 7):
• Lock / Release steering axle
8
P
Connection for start-up aid
• Pressure line (red 8)
8
T
Connection for start-up aid
• Return flow line (blue 8)
Pos: 28.30 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulik/ Hydraulikschläuc he ankuppeln @ 17\mod_123 6332484838_78.doc x @ 204899 @ @ 1
• Take the hydraulic hoses (1) out of their support (2) on the drawbar
• Remove the cover caps on the couplings of the hoses
• Thoroughly clean the plug-in connections of the hydraulic hoses before plugging them in
