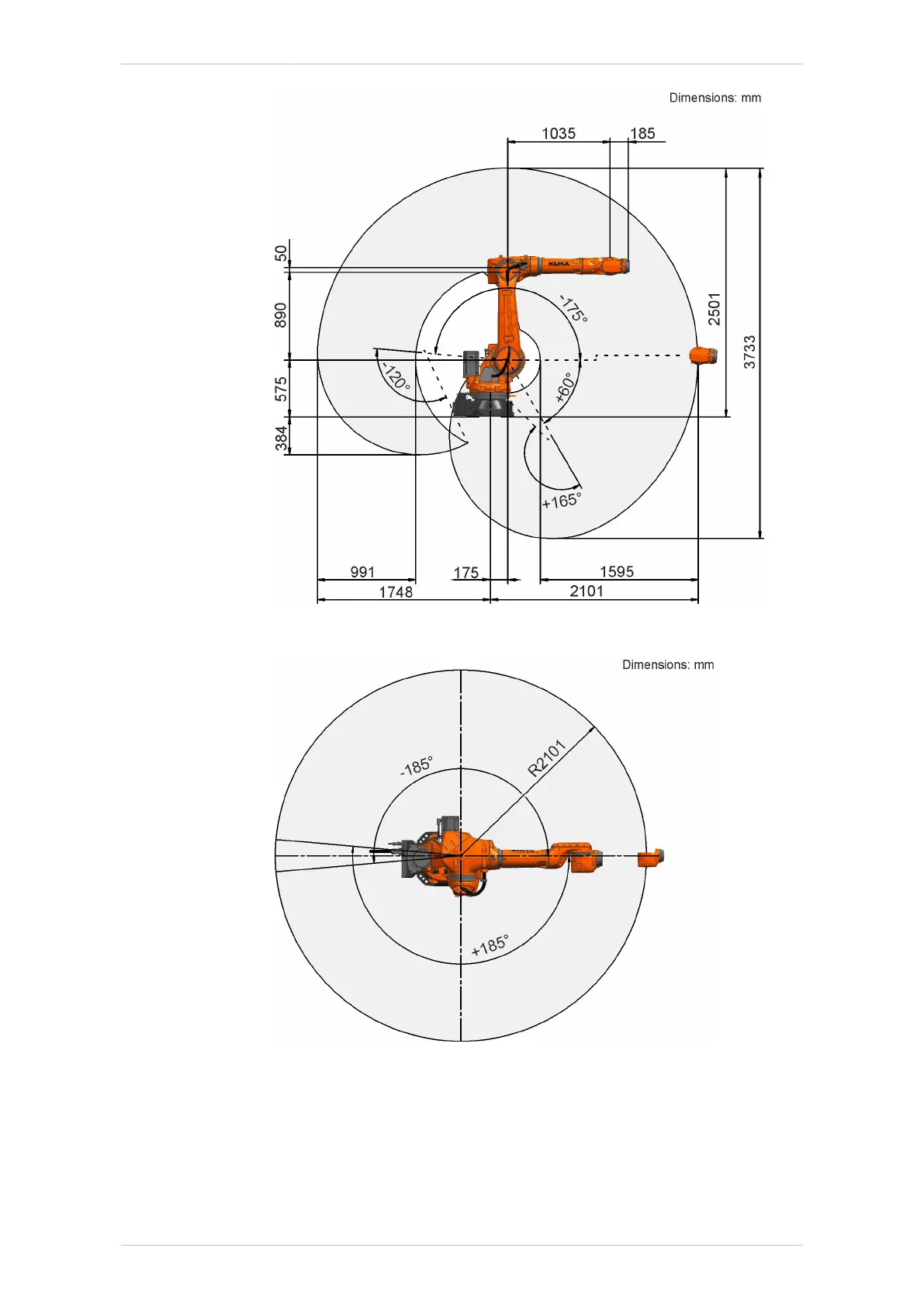

Fig. 4-57: KR 70 R2100, working envelope, side view
Fig. 4-58: KR 70 R2100, working envelope, top view
Inclined installation
The robot can be installed in any position from 0° (floor) to 180° (ceiling).
The following figure shows the possible limitation of the motion range of
axis 1, as a function of the angle of inclination of the robot.
