7. Insert and tighten the M18x1.5 magnetic screw plug; M
A
= 20 Nm.
Axis position for checking the fill level on A3
Model Fill level Axis position
KR 30/50/70 R2100
KR 50 R2500
KR 50 R2500 F
KR 70 R2100 F
A3 A2 + A3 = 0 °

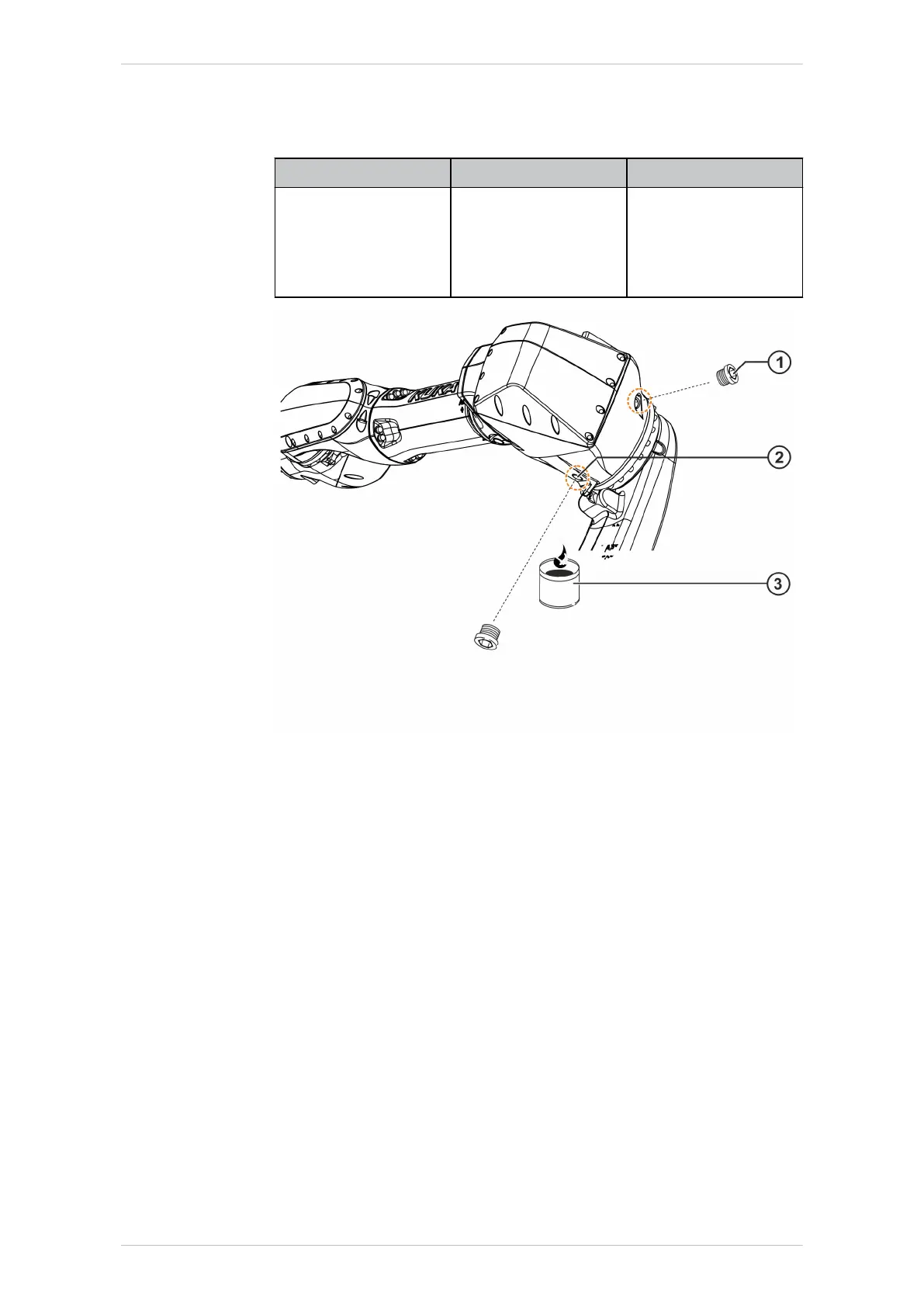

Fig. 8-9: Filling gear unit A3 with gear oil
1 Inspection hole = vent hole with M18x1.5 magnetic screw plug
2 Oil drain hole with M18x1.5 magnetic screw plug
3 Oil pump
8.5.3 Concluding work
The following concluding work must be carried out:
Remove oil residue.
Visual inspection, check for leaks.
Run the program in T1 mode and look out for irregularities.
8.6 Oil change in A4
Description
The following sections describe the A4 gear oil change for floor-mounted
robots. For ceiling-mounted robots, the procedure is to be applied analo-
gously, but with the drain and filler holes reversed.
KR IONTEC
206/344 | www.kuka.com MA KR IONTEC V4 | Issued: 11.05.2021
