Kuka IONTEC KR 20 R3100 User Manual

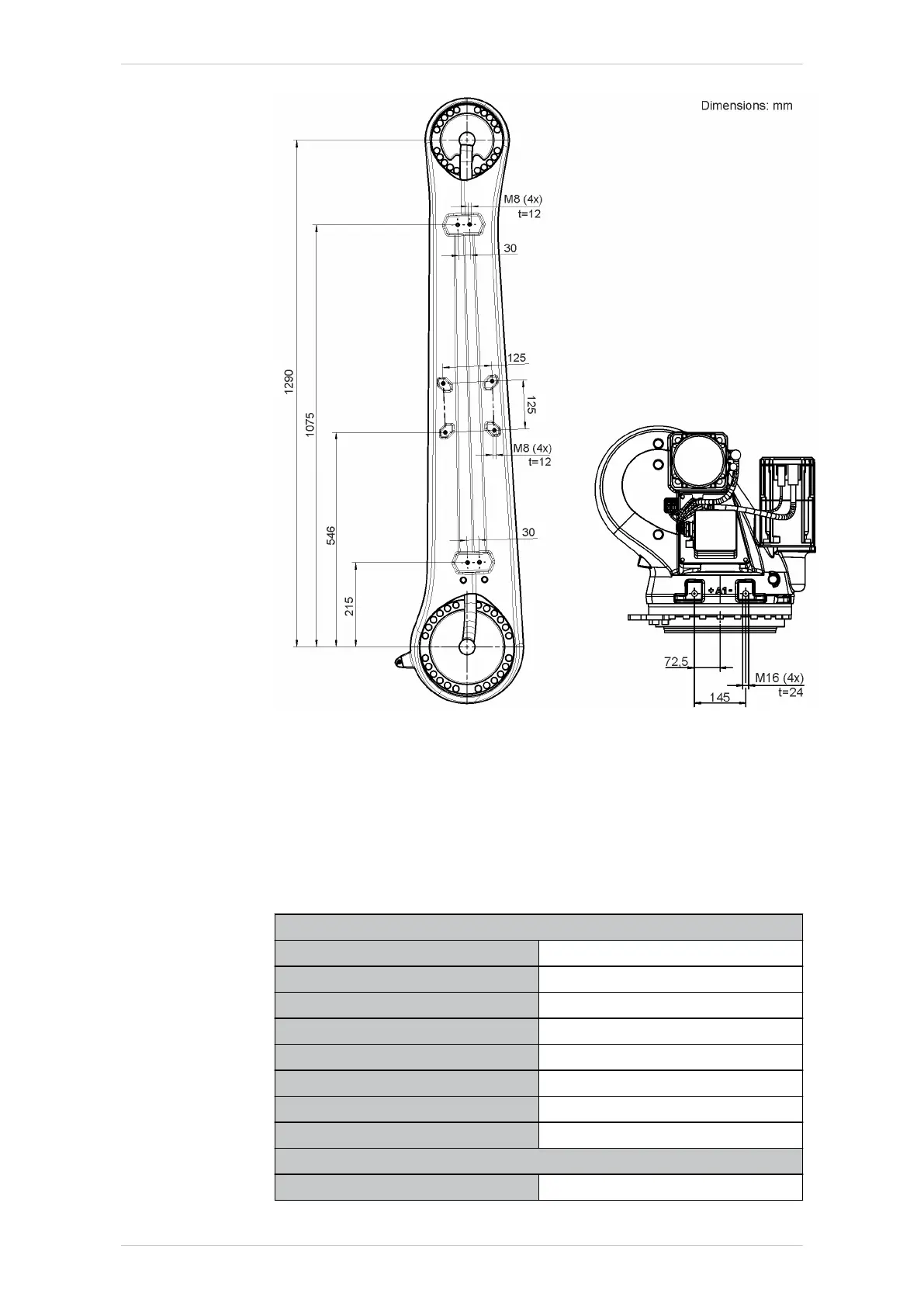

Fig. 4-43: KR 20 R3100 and KR 50 R2500, fastening of supplementary
load, rotating column and link arm
4.5.4 Foundation loads, KR 50 R2500
Foundation loads
The specified forces and moments already include the payload and the in-
ertia force (weight) of the robot.
Foundation loads for floor mounting position
F(v normal) 8203 N
F(v max) 11259 N
F(h normal) 4523 N
F(h max) 9133 N
M(k normal) 8952 Nm
M(k max) 17517 Nm
M(r normal) 5141 Nm
M(r max) 9806 Nm
Foundation loads for ceiling mounting position
F(v normal) 8204 N
KR IONTEC
84/344 | www.kuka.com MA KR IONTEC V4 | Issued: 11.05.2021
Technical data

Kuka IONTEC KR 20 R3100 Specifications

General

Payload	20 kg
Reach	3100 mm
Repeatability	±0.06 mm
Number of Axes	6
Controller	KR C4
Protection Rating	IP65
Mounting Position	Floor, ceiling, wall
