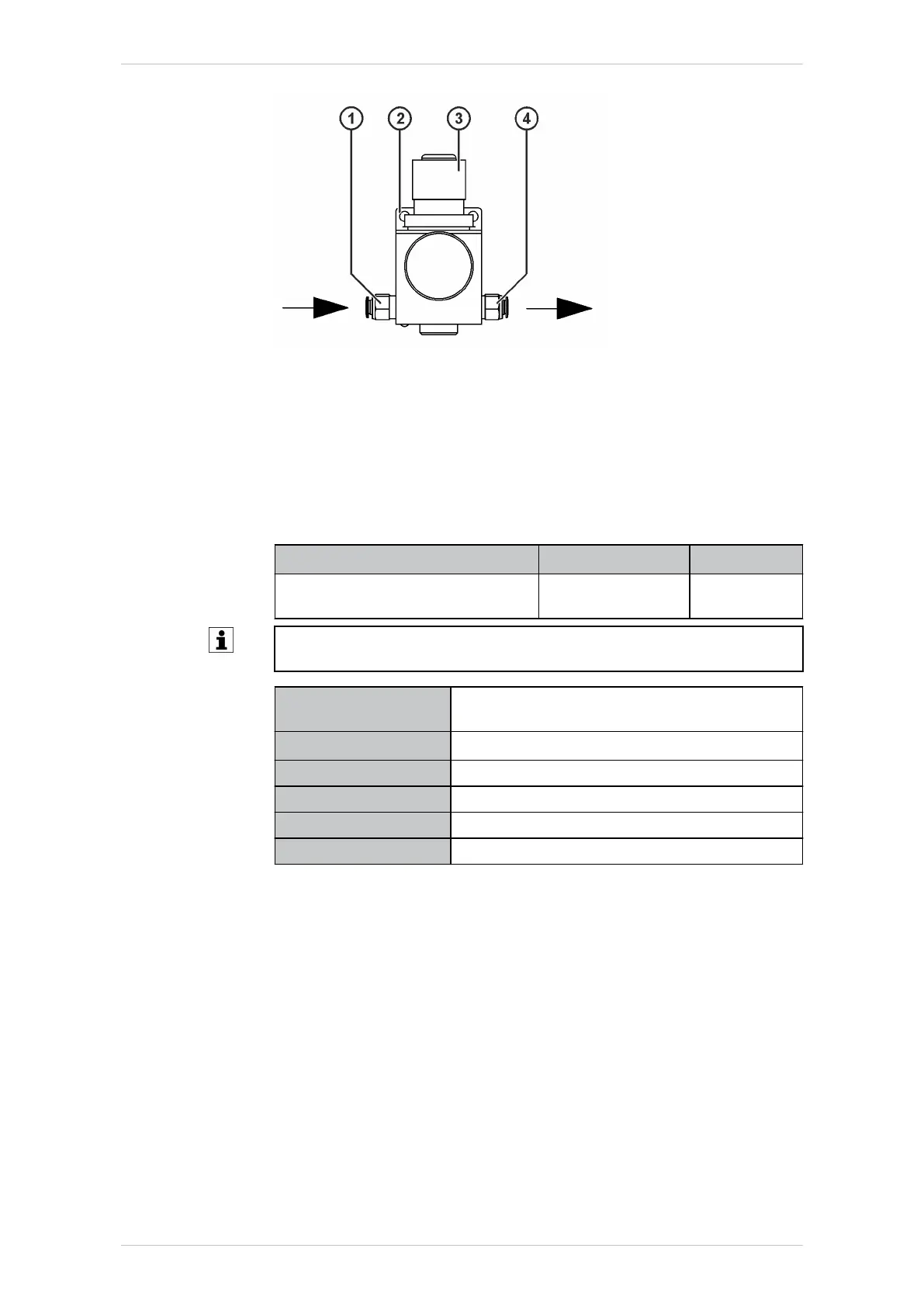

Fig. 11-8: PURGE option B
1 Compressed air connection
2 Holder for pressure regulator
3 Pressure regulator unit
4 Robot connection
Basic data
Designation Article number Weight
PURGE Option B 0000-363-925 approx.
1.7 kg
Further information about the ambient conditions is contained in the as-
sembly instructions for the robot and robot controller.
Operating pressure
(PURGE)
max. 0.03 MPa (0.3 bar) ±10%
Air consumption
0.1 m
3
/h
Air line connection Push-in fitting for hose, 6 mm
Input pressure 0.1 - 1.2 MPa (1 - 12 bar)
Pressure regulator 0.005 - 0.07 MPa (0.05 - 0.7 bar)
Manometer range 0.0 - 0.1 MPa (0.0 - 1.0 bar)
Maintenance
If used for its intended purpose, the option requires minimal maintenance,
i.e. visual inspections are recommended. In certain operating conditions,
regular visual inspections may allow timely detection of changes. The na-
ture and scope of the maintenance work depend very much on the specif-
ic area of application. This enables early detection of damage, thereby
preventing failure of components and assemblies. Exchange damaged
components or assemblies.
Disposal
When the option reaches the end of its useful life, it can be removed and
disposed of. The materials must be disposed of in accordance with the
pertinent regulations and, where possible, separated and sorted for recy-
cling.
