U246 Setting: [Punch Regist]
1. Select [Punch Regist].
2. Change the setting value using the numeric keys.
If skewed paper conveying occurs (sample 1), increase the setting value. If the print paper is
Z-folded (sample 2), decrease the setting value.

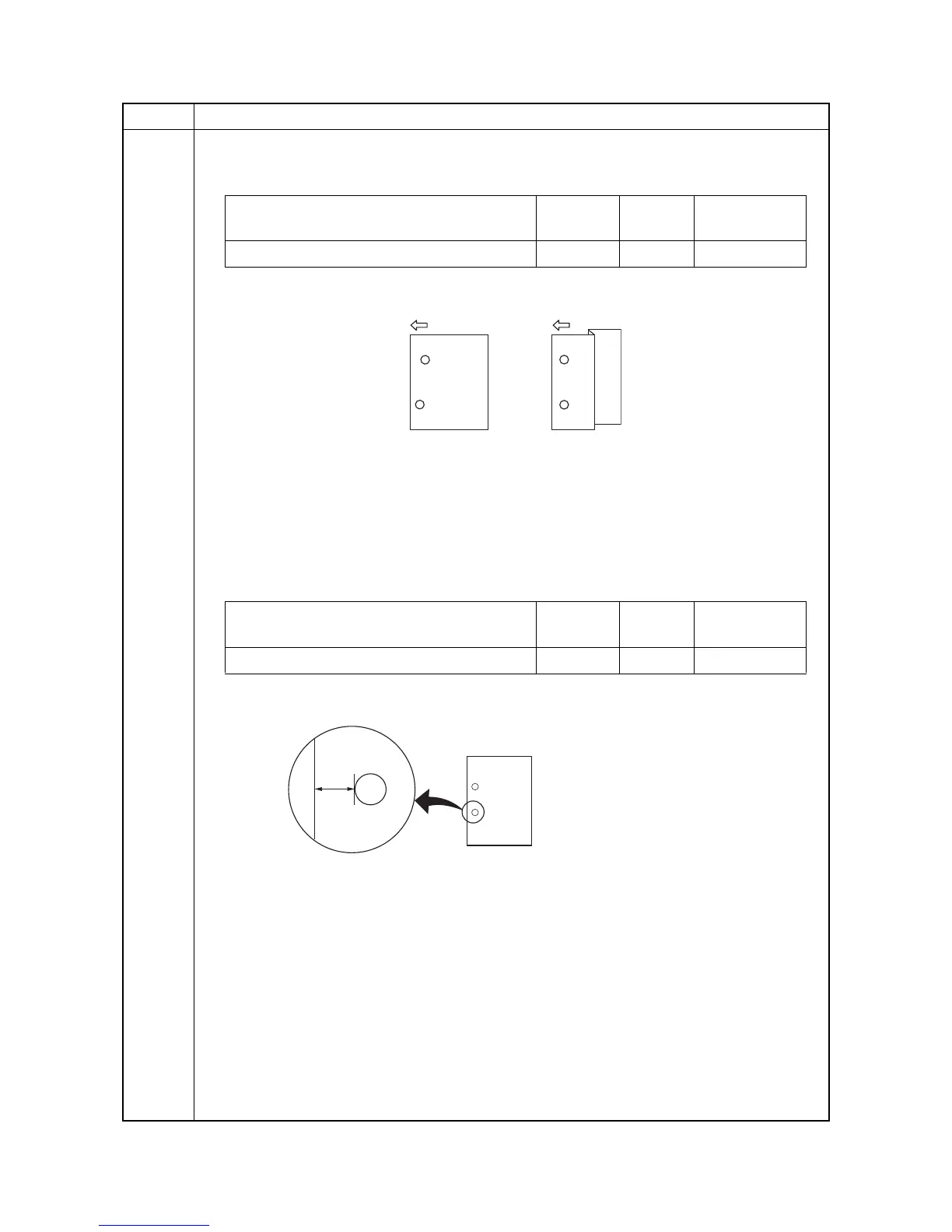

Figure 1-3-7
3. Press the OK key. The value is set.
Setting: [Punch Feed]
1. Select [Punch Feed].
2. Change the setting value using the numeric keys.
If the distance of the position of a punch hole is smaller than the specified value A, increase
the setting value. If the distance is larger than the value A, decrease the setting value.
Figure 1-3-8
3. Press the OK key. The value is set.
Item No. Description
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of registration stop timing -20 to 20 0 0.25 mm
Sample 1 Sample 2
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of the paper stop timing -10 to 10 0 0.52 mm
A
Preset value A: 13 mm (metric)
9.5 mm (inch)
To Next Page
