Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-65
(3) Detaching and refitting the fuser drive unit, transfer drive unit and feed drive unit
Procedure
Detaching the fuser drive unit
1. Remove the rear upper cover and the
rear lower cover (see page 1-5-56).
2. Remove five wire holders of feed PWB
1 assembly.
3. Release the wire saddle.

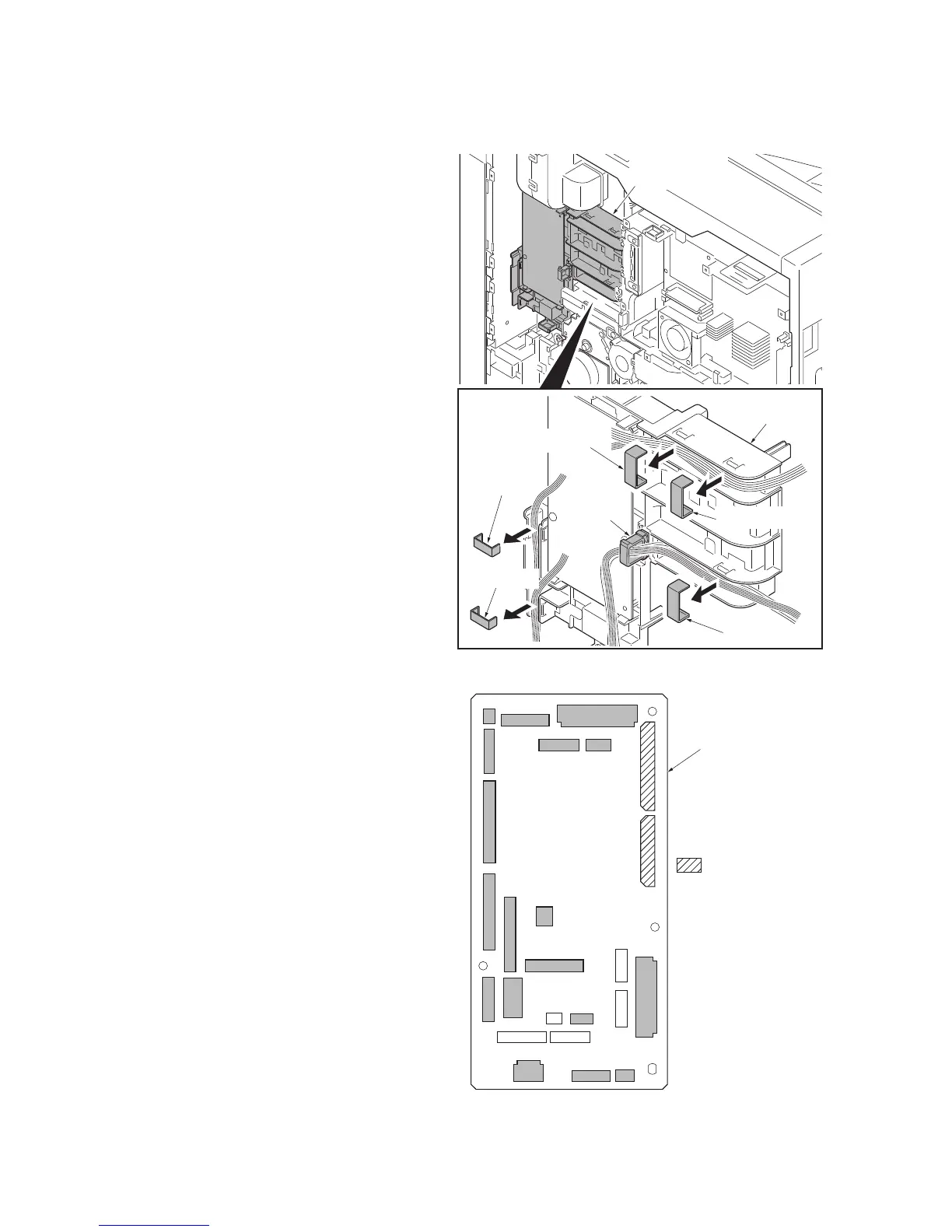

Figure 1-5-101
4. Remove the following twenty connec-
tors from the feed PWB 1.
YC18, YC19
YC20, YC27
YC26, YC3
YC17, YC14
YC10, YC16
YC13, YC12
YC23, YC25
YC15, YC11
YC5, YC4
YC1 (FFC connector with a lock)
YC2 (FFC connector with a lock)
*: When removing the FFC from the FFC
connector with a lock, remove the FFC
after released by lifting down the lock
lever (see page 1-5-45).
Figure 1-5-102
Wire holder
Wire holder
Wire saddle
Wire holder
Feed PWB 1
assembly
Wire holder
Wire holder
Feed PWB 1
assembly
YC3
YC20
YC27 YC26
YC2YC1
YC5YC11
YC15
YC23
YC16
YC14 YC13
YC10
YC12
YC17
YC18
YC19
YC25
YC4
Feed PWB 1
FFC connector
with a lock
