2MN/2N1
1-5-56
(6)
Detaching an
d refitting the fuser IH PWB
Procedure
1.
Remove seven screws and then
remove the rear uppe
r cover
.

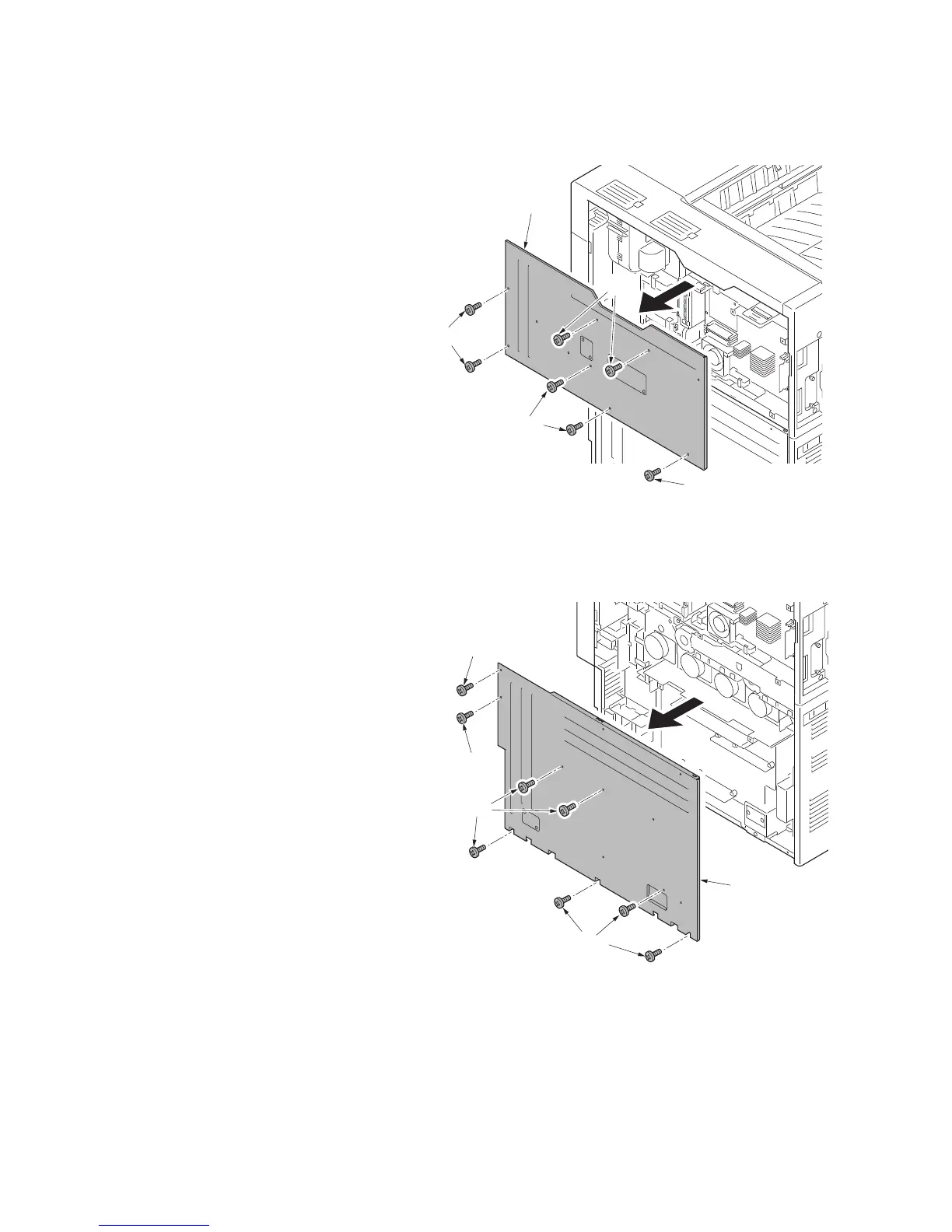

Figure 1-5-84
2.
Remove eight screws.
3.
Release two hanging pa
rts and then
remove the rear lower cover
.
4.
Remove the fuser unit (see page 1-5-
40).
Figure 1-5-85
Rear upper cover
Screws
Screws
Screw
Rear lower cover
Screw
Screw
Screws
Screws
373
375
Table of Contents
Service Manual
1
Revision History
3
Safety Precautions
5
Safety Warnings and Precautions
6
Symbols
6
Installation Precautions
7
Precautions for Maintenance
8
Table of Contents
11
Assembly and Disassembly
12
Specifications
15
Parts Names
18
Machine View and Parts List
18
Option - View and Parts List
20
Operation Panel View and Parts List
21
Machine Cross Section View and Parts List
22
Installation Environment
23
Unpacking and Installation
24
Moving the Machine
25
Unpacking
26
Removing the Tapes
28
Installing the Main Tray and Job Separator Tray
30
Release of Lift Plate Stopper
31
Loading Paper
32
Installing the Toner Containers
35
Unlocking the Developer Waste Exit
36
Installing the Waste Toner Box
37
Installing Optional Devices
38
Connect the Power Cord
38
Adjusting the Image
38
Performing Drum Refresh
38
Setting the Delivery Date
39
Performing LSU Cleaning
39
Performing Calibration
39
Performing Color Registration
39
Output an Own-Status Report
40
Exit Maintenance Mode
40
Print out the User Setting List
40
Shut-Down
41
Setting Initial Print Modes
42
Supplied Parts of Cassette Heater Set
43
Installing the Cassette Heater (Option)
43
Installing the Gigabit Ethernet Board (Option)
48
Installing the IC Card Reader Holder for Internal Wirings
50
Supplied Parts of IC Card Reader Holder
50
Installing the IC Card Reader Holder for External Wirings
60
Enabling IC Card Authentication
64
Supplied Parts of Duct Unit
65
Installing the Duct Unit (Option)
65
Executing a Maintenance Item
69
Maintenance Mode
69
Maintenance Modes Item List
70
Contents of the Maintenance Mode Items
77
Event Log
79
Paper Jam Log
80
Maintenance Log
82
Service Call Log
82
Unknown Toner Log
82
Counter Log
83
Service Status Page
84
Detail of Service Status Page
86
Exiting the Maintenance Mode
90
Setting the Factory Default Data
90
Setting the Machine Number
91
Setting the Maintenance Mode ID
92
Displaying the ROM Version
93
Completion
94
Memory Initializing
94
HDD Formatting
95
Checking the Operation of the Motors
96
Checking Switches and Sensors for Paper Conveying
97
Checking the Operation of the Clutches
98
Checking the Operation of the Solenoids
99
Adjusting the Print Start Timing
100
Adjustment: Leading Edge Registration Adjustment
101
Display Description
102
Checking the Operation of the Fan Motors
104
Adjusting the Deflection in the Paper
105
Setting the Fuser Motor Control
107
Setting the Adjustment of the Motor Speed
109
Setting Fan Mode
115
Outputting a MIP-PG Pattern
116
Adjusting Main High Voltage
117
Setting the Voltage for the Primary Transfer
120
Setting the Voltage for the Secondary Transfer
122
Setting the Transfer Cleaning Voltage
128
Setting Separation Shift Bias
129
Checking the Drum Count
131
Checking the Drum Drive Time
131
Checking the Drum Number
132
Displaying the Drum History
133
Setting the Drum
133
Checking the Transfer Belt Unit Number
134
Displaying the Transfer Belt Unit History
134
Checking/Clearing the Transfer Count
135
Initial Setting for the Developer
136
Setting Transfer High-Voltage Timing
136
Adjusting the Toner Sensor Control Voltage
137
Replenishing Toner Forcibly
138
Checking Toner Motor Operation
139
Setting Toner Near End Detection
139
Displaying the Temperature and Humidity Outside the Machine
140
Displaying Developer Bias
141
Setting for Toner Applying Operation
146
Setting Drum Refresh Mode
147
Checking Sensors for Toner
148
Setting the Toner Replenishment Level
149
Checking the Developer Count
150
Checking the Developer Drive Time
150
Setting the Fuser Control Temperature
151
Checking/Clearing the Fuser Count
153
Checking/Setting the Fuser Power Source
153
Checking the Operation Panel Keys
154
Displaying Fuser Heater Temperature
154
Setting the Paper Size for the Side Deck
155
Setting the Presence or Absence of the Job Separator
155
Operation Panel Lock
156
Setting the USB Host Lock Function
156
Setting Punch Destination
157
Setting Finisher Stack Quantity
158
Checking the Operation of the Finisher
159
Checking the Operation of the Switches of the Finisher
161
Setting the Finisher
164
Setting the Paper Feed Device
170
Checking/Clearing the Maintenance Cycle
172
Checking/Clearing the Maintenance Counter
173
Setting the Destination
174
Switching between Double and Single Counts
175
Selecting the Timing for Print Counting
176
Setting OEM Purchaser Code
176
Setting the Page Count
177
Setting Abnormal Temperature and Humidity Warning
178
Setting Service Status Page
178
Setting the Paper Interval
179
Setting the Cassette Heater Control
180
Setting the Size Conversion Factor
181
Setting the Applied Mode
182
Setting a Gamma Table
183
Setting the Value for Maintenance Due Indication
183
Adjusting the Conveying Sensor
184
Setting the ID Correction Operation
186
Data Reference for ID Correction
189
Setting the Color Registration Adjustment
192
Checking the Color Registration Data
193
Adjusting the Color Registration
194
Checking LSU Cleaning Operation
196
Setting the Color Table
197
Setting Color/Black and White Operation Mode
198
Checking Print Counts by Paper Feed Locations
200
Checking/Clearing the Paper Jam Counts
202
Detail of History of Paper Jams
203
Checking/Clearing the Call for Service Counts
204
Detail of History of Service Counts
205
Checking Counts by Optional Devices
206
Checking the Total Counter Value
207
Clearing the Print Coverage Data
207
Resetting Partial Operation Control
207
Checking Print Counts by Paper Sizes
208
Setting Backup Data Reading/Writing
209
Error Codes
210
Checking the Print Counts
212
Clearing the All Print Counts and Machine Life Counts (One Time Only)
212
Checking Machine Life Counts
213
Checking/Clearing the Charger Roller Count
213
Maintenance Mode Workflow
214
Checking of Log
216
Checking of Toner Area Code
216
Checking the Developer Unit Number
217
Data Capture Mode
217
Displaying the Developer Unit History
218
HDD Scan Disk
218
Paper Misfeed Detection
219
Paper Misfeed Indication
219
Paper Jam Location Diagram
220
Paper Misfeed Detection Condition
220
Middle Sensor Non Arrival Jam
224
Middle Sensor Stay Jam
224
Paper Conveying Sensor Non Arrival Jam
225
Paper Conveying Sensor Stay Jam
225
PF Paper Conveying Sensor 1 Stay Jam
225
PF Paper Conveying Sensor 2 Non Arrival Jam
225
PF Paper Conveying Sensor 1 Non Arrival Jam
226
PF Paper Conveying Sensor 2 Stay Jam
226
SM Paper Conveying Sensor 2 Non Arrival Jam
228
SM Paper Conveying Sensor 2 Stay Jam
228
SM Paper Conveying Sensor 3 Non Arrival Jam
228
SM Paper Conveying Sensor 3 Stay Jam
228
Registration Sensor Non Arrival Jam
229
SM Eject Sensor Non Arrival Jam
229
SM Eject Sensor Stay Jam SM
229
Loop Sensor Non Arrival Jam
230
Registration Sensor Stay Jam
230
Loop Sensor Stay Jam
231
Fuser Eject Sensor Non Arrival Jam
232
Fuser Eject Sensor Stay Jam
232
Duplex Sensor 1 Non Arrival Jam
233
Duplex Sensor 1 Stay Jam
233
Duplex Sensor 2 Non Arrival Jam
234
Duplex Sensor 2 Stay Jam
234
Eject Full Sensor Non Arrival Jam
235
Eject Full Sensor Stay Jam
235
Switchback Sensor Non Arrival Jam
236
Switchback Sensor Stay Jam
236
BR Conveying Sensor 1 Non Arrival Jam
237
BR Conveying Sensor 1 Stay Jam
237
BR Conveying Sensor 2 Non Arrival Jam
238
BR Conveying Sensor 2 Stay Jam
238
BR Eject Sensor Non Arrival Jam
239
BR Eject Sensor Stay Jam BR
240
CF Left Guide Open
240
DF Front Cover Open
240
DF Paper Entry Error
240
DF Middle Eject Sensor Non Arrival Jam
241
DF Middle Eject Sensor Stay Jam
241
DF Paper Entry Sensor Non Arrival Jam
241
DF Paper Entry Sensor Stay Jam
241
Center Folding Unit Stay Jam
242
DF Bundle Discharge Sensor Non Arrival Jam
242
DF Tray Upper Surface Sensor Non Arrival Jam
242
DF Tray Upper Surface Sensor Stay Jam
242
CF Eject Sensor Non Arrival Jam
243
CF Eject Sensor Stay Jam
243
CF Paper Entry Sensor Non Arrival Jam
243
DF Staple Operation Error DF
243
Self-Diagnostic Function
244
Backup Memory Device Error
245
Backup Memory Read/Write Error (Engine PWB)
245
MAC Address Data Error
245
Self Diagnostic Codes
245
12 V Power down Detect/24 V Power down Detect
246
Faults of RTC
246
Image Processing Error
246
MP Lift Motor Error
246
Lift Motor 1 Error
247
Lift Motor 2 Error
247
PF Lift Motor 1/2 Error (Paper Feeder)
248
SM Lift Motor Error (Side Multi Tray)
248
PF Lift Motor 1/2 Error (Side Paper Feeder)
249
PF Lift Motor 1/2 Error (Large Capacity Feeder)
250
SD Lift Motor Error (Side Deck)
250
Paper Feeder Communication Error
251
SM Multi Feed Sensor Backup Error (Side Multi Tray)
251
SM Multi Feed Sensor Communication Error (Side Multi Tray)
251
SM Multi Feed Sensor Error (Side Multi Tray)
251
Paper Feeder EEPROM Error
252
Side Multi Tray Communication Error
252
Side Multi Tray EEPROM Error
252
Side Paper Feeder Communication Error
252
Developer Motor K Error
253
Developer Motor MCY Error
253
Transfer Belt Unit EEPROM Error
253
Drum Motor C Steady-State Error
254
Drum Motor K Steady-State Error
254
Drum Motor M Steady-State Error
255
Drum Motor y Steady-State Error
255
Drum Motor C Startup Error
256
Drum Motor K Startup Error
256
Drum Motor M Startup Error
257
Drum Motor y Startup Error
257
Fuser Motor Error
257
Paper Feed Motor Error
258
PF Paper Feed Motor Error (Large Capacity Feeder)
258
PF Paper Feed Motor Error (Paper Feeder)
258
PF Paper Feed Motor Error (Side Large Capacity Feeder)
259
SD Paper Feed Motor Error (Side Deck)
259
SM Paper Feed Motor Error (Side Multi Tray)
259
Color Release Motor Error
260
PF Paper Feed Motor Error (Side Paper Feeder)
260
Transfer Release Motor Error
260
Transfer Motor Startup Error
261
Transfer Skew Error
261
Transfer Skew Motor Error
261
Transfer Skew Sensor Error
261
Transfer Cleaning Motor Error
262
Transfer Motor Steady-State Error
262
Waste Toner Motor Error
262
Motor Control PWB Communication Error
263
Polygon Motor K Synchronization Error
263
Transfer Belt Motor Sensor Error
263
Transfer Belt Sensor Error
263
Polygon Motor C Synchronization Error
264
Polygon Motor K Steadystate Error
264
Polygon Motor M Synchronization Error
264
Polygon Motor y Synchronization Error
264
BD Initialization Error K
265
Polygon Motor C Steadystate Error
265
Polygon Motor M Steadystate Error
265
Polygon Motor y Steadystate Error
265
BD Initialization Error C
266
BD Initialization Error M
266
BD Initialization Error y
266
BD Steady-State Error K
266
BD Steady-State Error C
267
BD Steady-State Error M
267
BD Steady-State Error y
267
Polygon Motor Phase Error
267
LSU Cleaning Motor Error
268
Main High-Voltage Error C
268
Main High-Voltage Error K
268
Abnormally High Fuser Thermistor 1 Temperature
269
Broken Fuser Heater Wire
269
Main High-Voltage Error M
269
Main High-Voltage Error y
269
Abnormally High Fuser Thermistor 4 Temperature
270
Abnormally Low Fuser Thermistor 1 Temperature
270
Broken Fuser Thermistor 1 Wire
270
Fuser Heater Error
270
Abnormally High Fuser Thermistor 2 Temperature
271
Abnormally Low Fuser Thermistor 4 Temperature
271
Broken Fuser Edge Heater Wire
271
Broken Fuser Thermistor 4 Wire
271
Abnormally High Fuser Thermistor 3 Temperature
272
Abnormally Low Fuser Thermistor 2 Temperature
272
Broken Fuser Thermistor 2 Wire
272
Broken Fuser Thermistor 3 Wire
272
Fuser Belt Rotation Error
273
Fuser IH Belt Rotation Error
273
Fuser IH PWB CPU Reset Error
273
Fuser Release Motor Error
273
Abnormally High Fuser IH PWB Temperature 1/2
274
Fuser IH Input Over-Current Error
274
Fuser IH Low Electric Power Error
274
Fuser IH Output Over-Current Error
274
Engine Software Ready Error
275
Fuser Belt Cooling Fan Error
275
Fuser Front Fan Motor Error
275
Fuser Rear Fan Motor Error/Ih Fan Motor Error
275
Current PWB Error
276
Fuser IH PWB Communication Error
276
Fuser Power Supply Incompatibility
276
Toner Motor K Error/Toner Motor C Error
276
Toner Motor M Error
277
Toner Motor y Error
277
Toner Sensor K Error
277
Toner Sensor C Error
278
Toner Sensor M Error
278
Toner Sensor y Error
278
Broken LSU Thermistor K Wire
279
Broken Outer Temperature Sensor 2 Wire
279
Short-Circuited Outer Temperature Sensor 2
279
Broken LSU Thermistor C Wire
280
Broken LSU Thermistor M Wire
280
Broken LSU Thermistor y Wire
280
Short-Circuited LSU Thermistor K
280
Broken Developer Thermistor K Wire
281
Short-Circuited LSU Thermistor C
281
Short-Circuited LSU Thermistor M
281
Short-Circuited LSU Thermistor y
281
Broken Developer Thermistor C Wire
282
Broken Developer Thermistor M Wire
282
Broken Developer Thermistor y Wire
282
Short-Circuited Developer Thermistor K
282
Developer Unit K/C Type Mismatch Error
283
Short-Circuited Developer Thermistor C
283
Short-Circuited Developer Thermistor M
283
Short-Circuited Developer Thermistor y Wire
283
Developer Unit M Type Mismatch Error
284
Developer Unit y Type Mismatch Error
284
ID Sensor 1 Error
284
ID Sensor 2 Error
284
Broken Outer Temperature Sensor 1 Wire
285
Drum C EEPROM Error
285
Drum K EEPROM Error
285
Drum M EEPROM Error
285
Developer Unit C EEPROM Error
286
Developer Unit K EEPROM Error
286
Drum y EEPROM Error
286
Developer Unit M EEPROM Error
287
Developer Unit y EEPROM Error
287
Laser Scanner Unit C EEPROM Error
287
Laser Scanner Unit K EEPROM Error
287
Laser Scanner Unit M EEPROM Error
288
Laser Scanner Unit y EEPROM Error
288
Punch Motor Error 1
288
Abnormal Simultaneous Connection of Mailbox
289
Punch Motor Error 2
289
Punch Motor Error 3
289
DF Eject Release Motor Error
290
DF Paddle Motor Error
290
DF Shift Motor 1 Error (4000-Sheet Finisher)
291
DF Shift Motor 2 Error (4000-Sheet Finisher)
291
DF Shift Release Motor Error (4000-Sheet Finisher)
291
DF Tray Motor Error 1/2
292
DF Side Registration Motor 1 Error 1
293
DF Tray Motor Error 3
293
DF Side Registration Motor 1 Error 2
294
DF Side Registration Motor 2 Error 1
294
DF Side Registration Motor 2 Error 2
295
DF Slide Motor Error
295
DF Staple Motor Error 1/2
296
DF Tray Motor Error 4
296
Center-Folding Unit Communication Error
297
CF Adjustment Motor Error
297
CF Side Registration Motor 2 Error
297
CF Blade Motor Error
298
CF Main Motor Error
298
CF Side Registration Motor 1 Error
298
CF Staple Motor Error 2
299
Punch Slide Motor Error 1
299
Punch Slide Motor Error 2
299
Mailbox Communication Error
300
MB Conveying Motor Error 1 (4000-Sheet Finisher)
300
Punch Unit Communication Error
300
Document Finisher Backup Error
301
Document Finisher Main Program Error
301
MB Conveying Motor Error 2 (4000-Sheet Finisher)
301
Center-Folding Unit Backup Error
302
Communication Error between Main PWB and Operation PWB
302
Main PWB Checksum Error
302
Print Engine ROM Checksum Error
302
Image Formation Problems
303
No Image Appears (Entirely Black)
304
No Image Appears (Entirely White)
304
Image Is too Light
305
The Background Is Colored
305
Black Streaks Are Printed Vertically
306
Streaks Are Printed Horizontally
306
White Streaks Are Printed Vertically
306
Image Is Blurred
307
Leading Edge of the Image Is Consistently Misaligned with the Original
307
Leading Edge of the Image Is Sporadically Misaligned with the Original
307
Spots Are Printed
307
Offset Occurs
308
Paper Is Wrinkled
308
Part of Image Is Missing
308
Fusing Is Loose
309
Image Center Does Not Align with the Original Center
309
Image Is out of Focus
309
Unevenly Repeating Horizontal Streaks in the Printed Objects
309
Electric Problems
310
Middle Motor Does Not Operate
310
MP Lift Motor Does Not Operate
310
Registration Motor Does Not Operate
310
Duplex Motor Does Not Operate
311
Eject Motor Does Not Operate
311
Toner Fan Motor 1, 2 Does Not Operate
311
Belt Fan Motor 1, 2/Fuser Fan Motor 1, 2 Does Not Operate
312
Developer Fan Motor 1, 2 Does Not Operate
312
Exhaust Fan Motor 1, 2 Does Not Operate
312
LSU Fan Motor Does Not Operate
312
Eject Front Fan Motor Does Not Operate
313
Eject Rear Fan Motor Does Not Operate
313
Paper Feed Clutch/Assist Clutch 1, 2 Does Not Operate
313
Power Source Fan Motor Does Not Operate
313
Feedshift Solenoid/Cleaning Solenoid Does Not Operate
314
MP Paper Feed Clutch Does Not Operate
314
Paper Conveying Clutch Does Not Operate
314
Pickup Solenoid 1, 2 Does Not Operate
314
A Paper Jam in the Paper Feed When the Main Power Switch Is Turned on
315
The Message Requesting Paper to be Loaded Is Shown
315
The Size of Paper on the Cassette Is Not Displayed Correctly
315
The Size of Paper on the MP Tray Is Not Displayed Correctly
315
Message Indicating Cover Open Displayed When Duplex Cover Closed
316
Message Indicating Cover Open Displayed When Front Cover Is Closed
316
Mechanical Problems
317
No Primary Paper Feed
317
No Secondary Paper Feed
317
Skewed Paper Feed
317
Precautions for Assembly and Disassembly
319
How to Tell a Genuine Kyocera Toner Container
320
Detaching and Refitting the Primary Paper Feed Unit
321
Paper Feed Section
321
Detaching and Refitting Forwarding Pulley/Paper Feed/Separation Pulley
325
Detaching and Refitting the MP Tray Paper Feed Unit
326
Detaching/Refitting MP Forwarding/Mp Paper Feed/Mp Separation Pulley
330
Detaching the MP Separation Pulley
332
Detaching and Refitting the LSU
335
Optical Section
335
Color Registration Adjustment
342
To Replace the Laser Scanner Unit
342
If Manual Color Registration Has Failed
343
Detaching and Refitting the Inner Unit
345
Image Formation Section
345
Detaching and Refitting the Developer Unit and Drum Unit
347
Detaching and Refitting the Charger Roller Unit
349
Detaching and Refitting the Paper Conveying Unit
350
Transfer Section
350
Detaching and Refitting the Transfer Belt Unit
352
Detaching and Refitting the Cleaning Pre Brush
354
Detaching and Refitting the Transfer Roller
356
Detaching and Refitting the Fuser Unit
358
Fuser Section
358
Detaching and Refitting Fuser IH Unit
360
Detaching and Refitting the Main PWB
362
Pwbs
362
Detaching and Refitting the Engine PWB
367
Detaching and Refitting the Power Source PWB
369
Detaching and Refitting the High Voltage PWB 1
372
Detaching and Refitting the High Voltage PWB 2
373
Detaching and Refitting the Fuser IH PWB
374
Detaching and Refitting Drum Drive Unit K and Drum Drive Unit MCY
379
Drive Section
379
Detaching the Drum Drive Unit MCY
380
Detaching and Refitting the Main Drive Unit
382
Detaching the Fuser Drive Unit
383
Detaching the Transfer Drive Unit
385
Detaching the Feed Drive Unit
386
Detaching and Refitting the Lift Motor 1 and 2
389
Detaching the Eject Filter
390
Detaching and Refitting the Toner Filter
391
Detaching and Refitting the Fan Filter
392
Detaching and Refitting the Transfer Belt Filter
393
Detaching and Refitting the Left Filter
394
Detaching and Refitting the Developer Filter
395
Detaching and Refitting the Hard Disk Unit
396
Detaching and Refitting the Eject Unit
398
Direction of Installing the Principal Fan Motors
399
Upgrading the Firmware
401
Remarks on Main PWB Replacement
402
Remarks on Engine PWB Replacement
404
Cassette Paper Feed Section
405
Paper Feed/Conveying Section
405
Cassette Paper Feed Section Block Diagram
406
MP Tray Paper Feed Section
407
MP Tray Paper Feed Section Block Diagram
408
Paper Conveying Section
409
Paper Conveying Section Block Diagram
410
Drum Section
411
Drum Section Block Diagram
412
Developer Section
413
Developer Section Block Diagram
414
Laser Scanner Section
415
Laser Scanner Unit Block Diagram
416
Intermediate Transfer Unit Section
417
Transfer/Separation Section
417
Intermediate Transfer Unit Section Block Diagram
418
Secondary Transfer Roller Section
419
Secondary Transfer Roller Section Block Diagram
420
Fuser Section Overview
421
Fuser Section Block Diagram
422
Eject/Feedshift Section
423
Eject/Feed Shift Section Block Diagram
424
Duplex Conveying Section
425
Duplex Conveying Section Block Diagram
426
Electrical Parts Layout
427
Pwbs View
427
List of Correspondences of PWB Names
429
Switches and Sensors Diagram
430
Motors Diagram
432
Fan Motors Diagram
434
Others - Diagram
436
Main PWB Silk-Screen Diagram and Photograph
439
Engine PWB Silk-Screen Diagram and Photograph
446
Power Source PWB Silk-Screen Diagram and Photograph
470
Front PWB Silk-Screen Diagram and Photograph
474
Feed PWB 1 Silk-Screen Diagram and Photograph
484
Feed PWB 2 Silk-Screen Diagram and Photograph
494
Relay PWB Silk-Screen Diagram and Photograph
500
Motor Control PWB Silk-Screen Diagram and Photograph
506
LSU Relay PWB Silk-Screen Diagram and Photograph
510
List of Maintenance Parts
521
Maintenance Kits
522
Periodic Maintenance Procedures
523
Repetitive Defects Gauge
527
Firmware Environment Commands
528
FRPO Parameters
528
Using FRPO Commands for Reprogramming Firmware
528
Wiring Diagram
535
Other manuals for Kyocera ECOSYS FS-C8650DN
Operation Guide
364 pages
User Guide
82 pages
Software Guide
13 pages
Management Guide
22 pages
Technical Reference Manual
260 pages
Driver Guide
110 pages
Help Guide
26 pages
Specifications
2 pages
Quick Installation Guide
32 pages
Safety Guide
2 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Kyocera ECOSYS FS-C8650DN and is the answer not in the manual?
Ask a question
Kyocera ECOSYS FS-C8650DN Specifications
General
Brand
Kyocera
Model
ECOSYS FS-C8650DN
Category
Printer
Language
English
Related product manuals
Kyocera ECOSYS FS-C8520MFP
388 pages
Kyocera ECOSYS FS-C8525MFP
388 pages
Kyocera ECOSYS FS-C5150DN
98 pages
Kyocera ECOSYS FS-C5400DN
232 pages
Kyocera ECOSYS FS-C5350DN
140 pages
Kyocera ECOSYS FS-C5250DN
198 pages
Kyocera ECOSYS FS-3920DN
212 pages
Kyocera ECOSYS FS-6525MFP
376 pages
Kyocera ECOSYS FS-6530MFP
376 pages
Kyocera ECOSYS FS-1135MFP
442 pages
Kyocera ECOSYS FS-3140MFP
454 pages
Kyocera ECOSYS FS-1035MFP/DP
442 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
