2MN/2N1
1-5-61
1-5-8 Drive section
(1) Detaching and refitting the drum drive unit K and the drum drive unit MCY
Procedure
Detaching the drum drive unit K
1. Remove the rear upper cover and the
rear lower cover (see page 1-5-56).
2. Remove the connector.
3. Release the wire saddle.

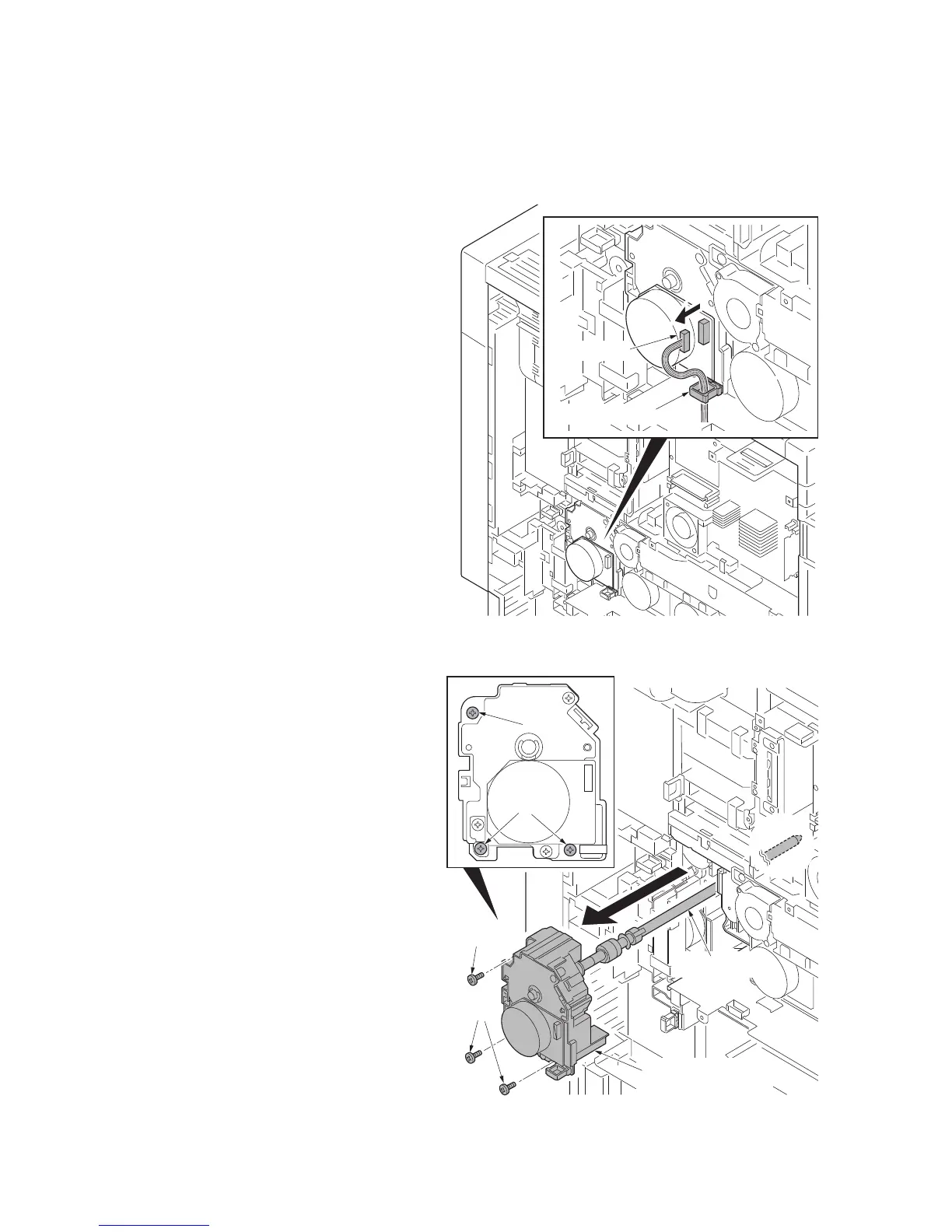

Figure 1-5-93
4. Remove three screws.
5. Remove the drum drive unit K.
*: Do not have a shaft part alone when
you carry drum drive unit K. (Have the
housing.)
*: Put support on the tip of the shaft so
that the shaft may become the horizon-
tal when you put drum drive unit K on
the table etc.
Figure 1-5-94
Connector
Wire saddle
Screws
Screw
Screw
Screws
Drum drive unit K
(housing portion)
(Shaft portion)
