2MN/2N1
2-1-20

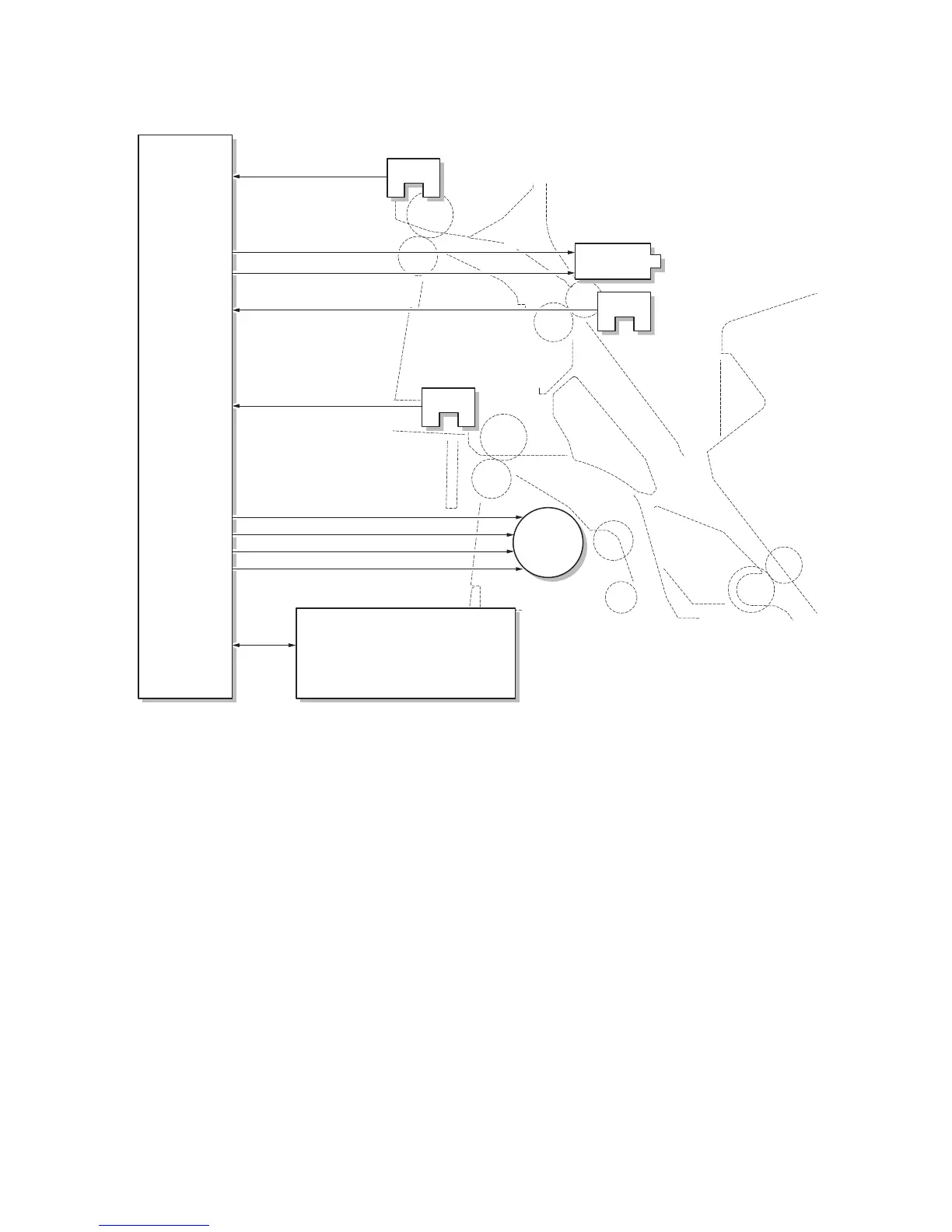

Figure 2-1-20 Eject/Feed shift section block diagram
SBS
EXIT_FEED_SENS
YC5-13
YC5-20
YC5-19
EFS1
EXIT_MAIN_SENS
YC5-16
EFS2
EXIT_SUB_SENS
YC5-6
JUNC_SOL_KYU
JUNC_SOL_FUK
FSSOL
EM
SB_MOT_A/
YC5-9
SB_MOT_B/
YC5-8
SB_MOT_A
YC5-11
SB_MOT_B
YC5-10
YC3 YC7
EPWB
FRPWB
