3. Remove a screw and slide the lever
right wards.
4. Fix the lever using the screw previously
removed at the right screw hole and
unlock the developer waste exit.
*: When the device is shipped again or
removed, use the reverse procedure to
lock in the developer waste exit. Failure
to observe this caution could result in
deteriorated print quality and/or C calls.

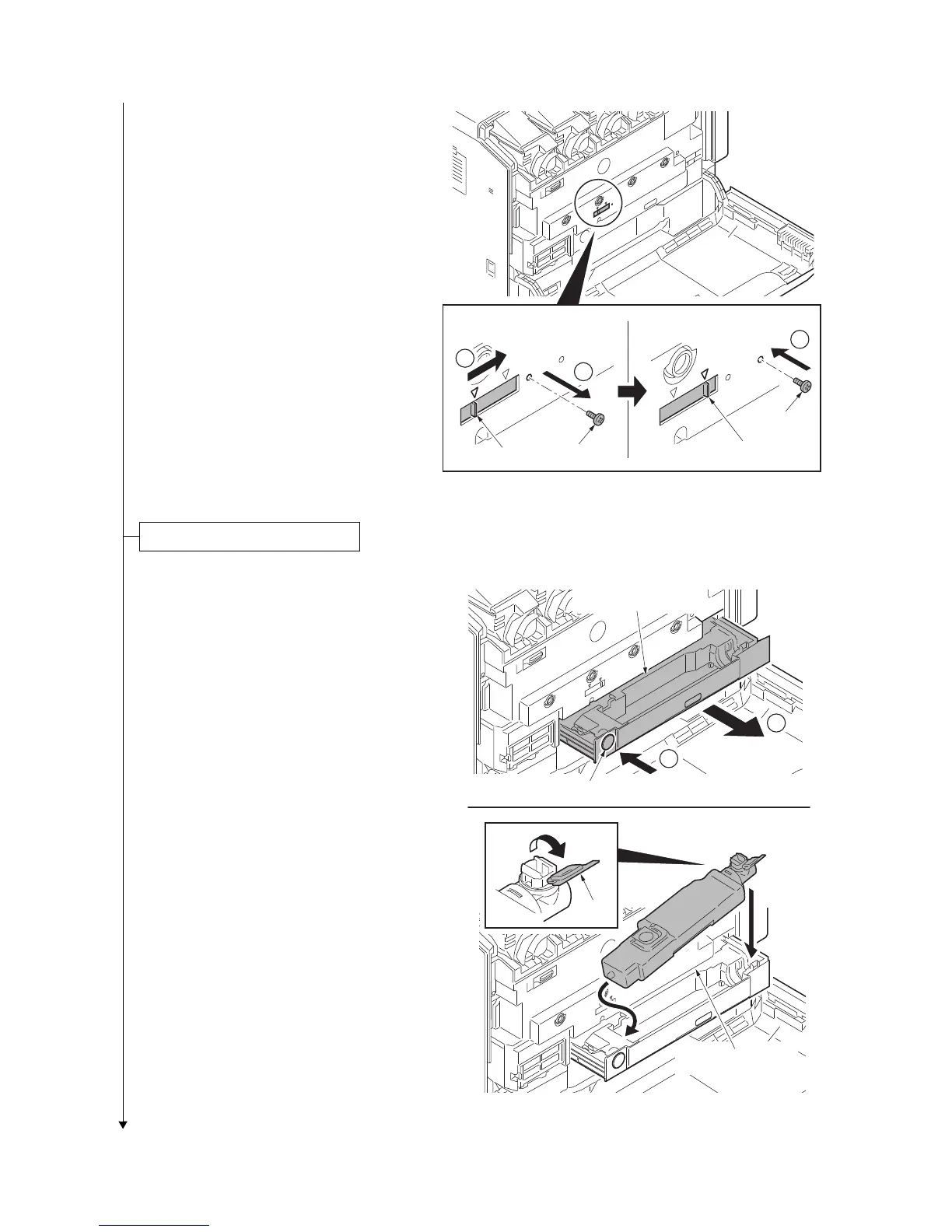

Figure 1-2-22
Caution
Before installing the waste toner box,
unlock the developer waste exit (see page
1-2-14).
1. Push the release button and pull out the
waste toner tray.
2. Open the lid and install the waste toner
box.
3. Push the waste toner tray back in.
4. Close the front cover.
Figure 1-2-23
Lever
Lever
Screw
Screw
[Locked] [Released]
1
2
3
Installing the waste toner box
1
2
Release button
Waste toner tray
Waste toner box
Lid
