Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-38

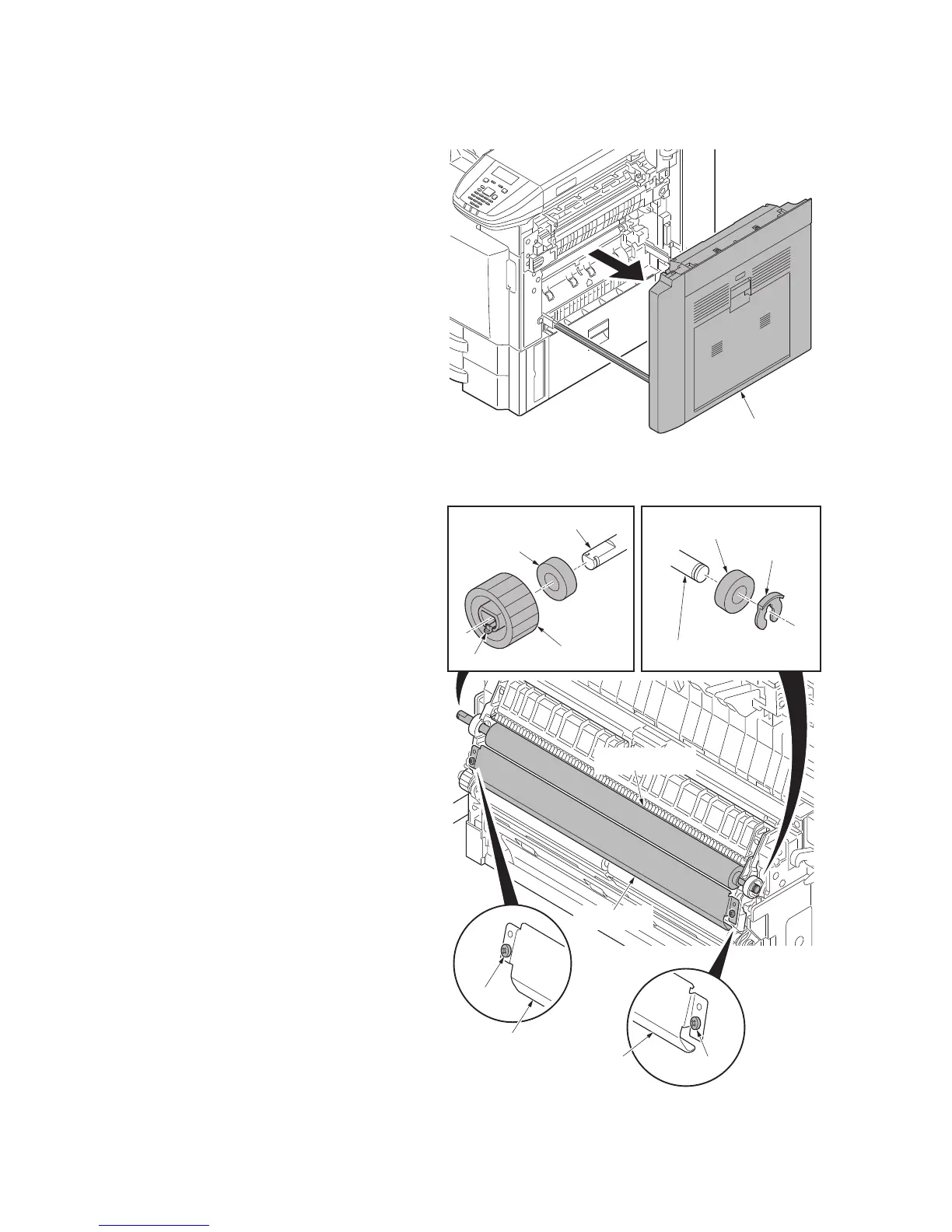

(4) Detaching and refitting the transfer roller
Procedure
1. Pull out the paper conveying unit.
Figure 1-5-58
2. Loosen two fixed screws on the TC
guide.
3. Remove the stop ring.
4. Unhook the hook and remove the TC
gear Z29R.
5. Remove two bearings.
6. Remove the transfer roller.
Figure 1-5-59
Paper conveying
unit
Screw
Screw
Transfer roller
Transfer roller (shaft)
Transfer roller (shaft)
Stop ring
Bearing
Bearing
TC gear Z29R
Hook
TC guide
TC guide
TC guide
