Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1-1
1-5-81
(9) Direction of installing the principal fan motors
When detaching or refitting the fan motors, be careful of the airflow direction (intake or exhaust).

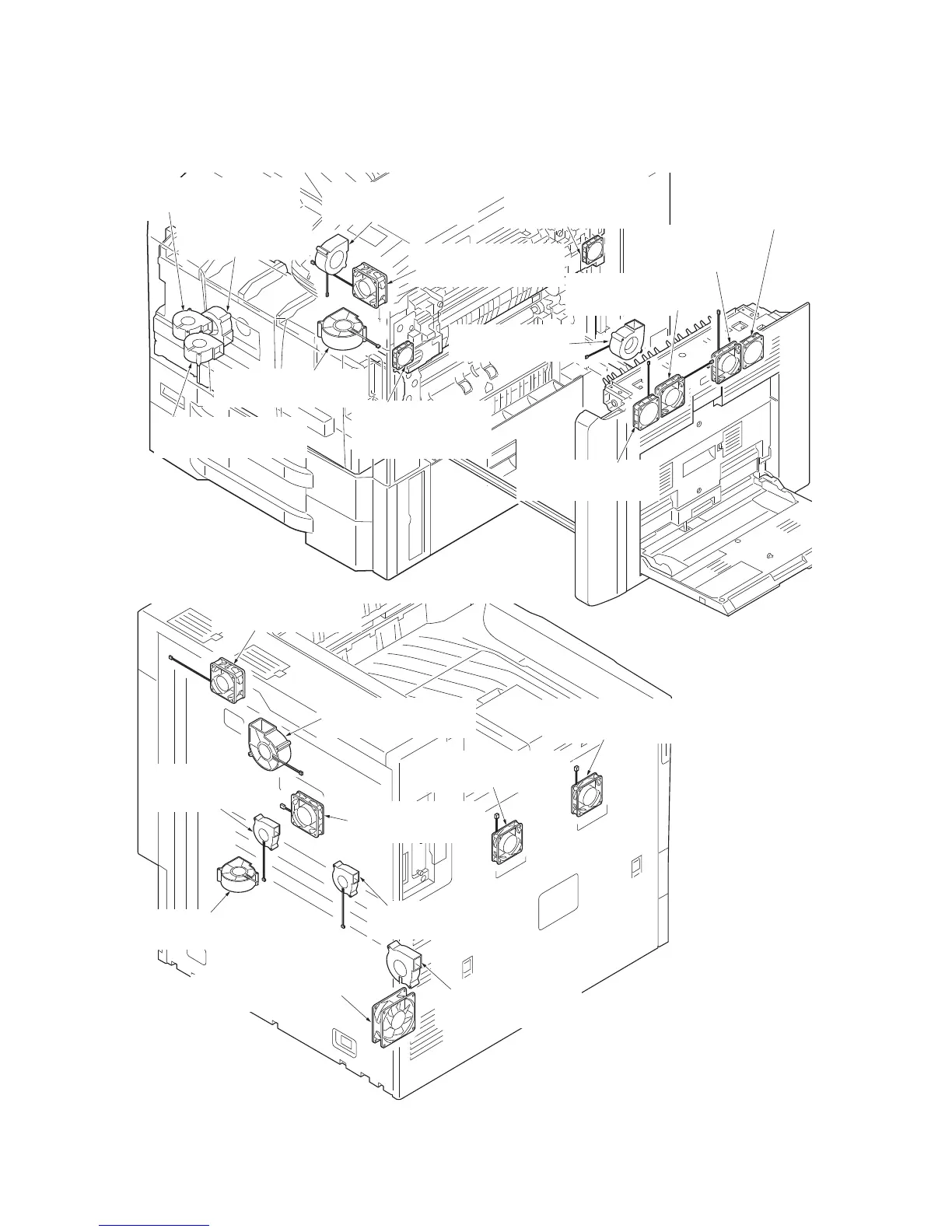

Figure 1-5-125
Eject rear fan motor
(Rating label:outside)
Toner fan motor 2
(Rating label:outside)
Toner fan motor 1
(Rating label:outside)
Power source fan motor
(Rating label:inside)
Belt fan motor 1
(Rating label:inside)
Belt fan motor 2
(Rating label:inside)
IH fan motor
(Rating label:inside)
Fuse fan motor 1
(Rating label:inside)
Eject fan motor 1
(Rating label:inside)
Eject fan motor 2
(Rating label:inside)
Fuser fan motor 2
(Rating label:inside)
Fuser front fan motor
(Rating label:outside)
Eject front fan motor2
(Rating label:inside)
Controller fan motor
(Rating label:inside)
Fuser rear fan motor
(Rating label:outside)
Developer fan motor 2
(Rating label:outside)
Developer fan motor 1
(Rating label:outside)
LSU fan motor
(Rating label:inside)
Fuse edge
fan motor 1
(Rating label:inside)
Fuser edge
fan motor 2
(Rating label:inside)
Exhaust fan motor 1
(Rating label:outside)
Exhaust fan motor 2
(Rating label:outside)
Eject front fan motor
(Rating label:inside)
