Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-67
8. Remove the connector.
9. Remove three screws.
10. Remove the fuser drive unit.

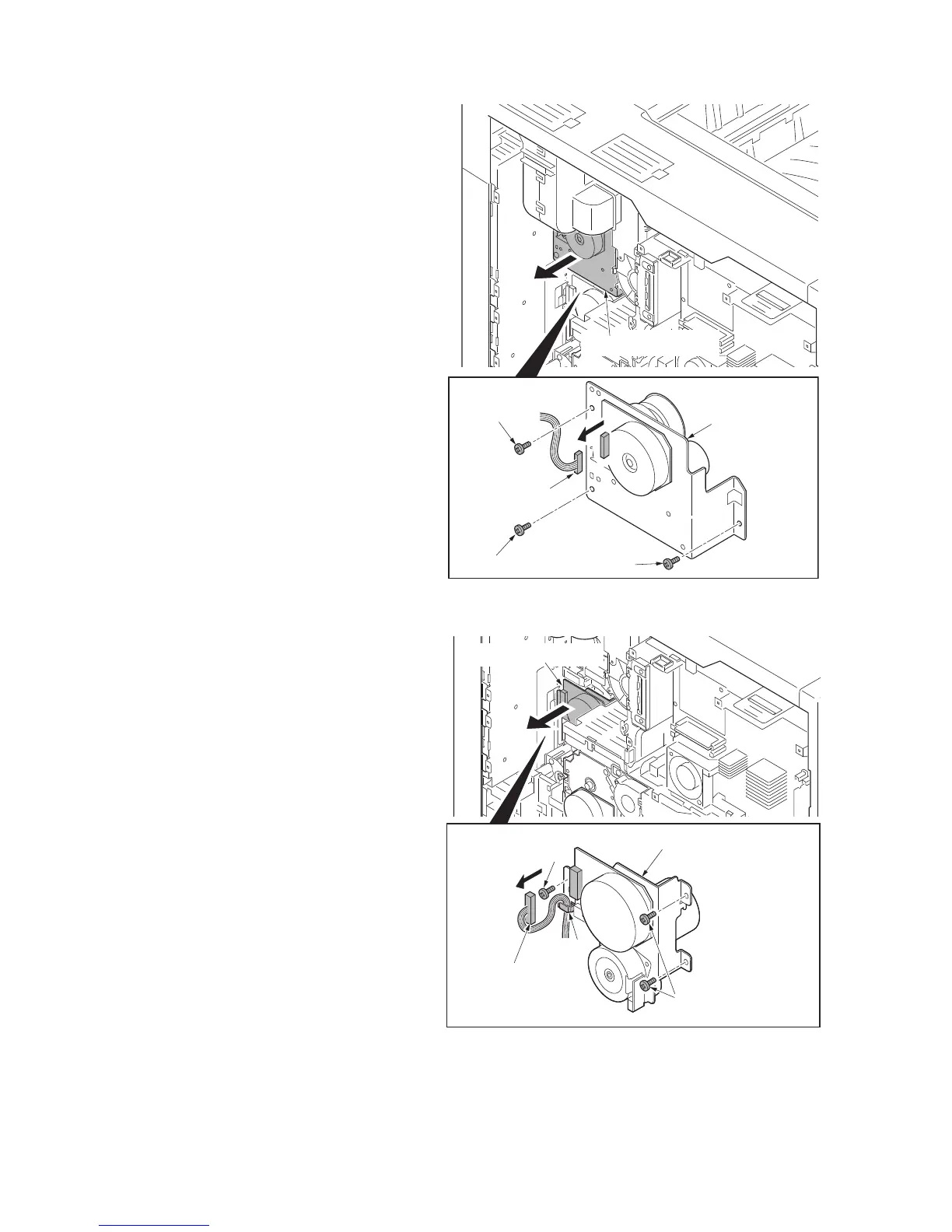

Figure 1-5-105
Detaching the transfer drive unit
11. Pull out the transfer belt unit a little (see
page 1-5-34).
12. Release the clamp.
13. Remove the connector.
14. Remove three screws.
15. Remove the transfer drive unit.
Figure 1-5-106
Fuser drive unit
Fuser drive unit
Connector
Screw
Screw
Screw
Transfer drive unit
Transfer drive unit
Screw
Screws
Clamp
Connector
