Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
2-1-16

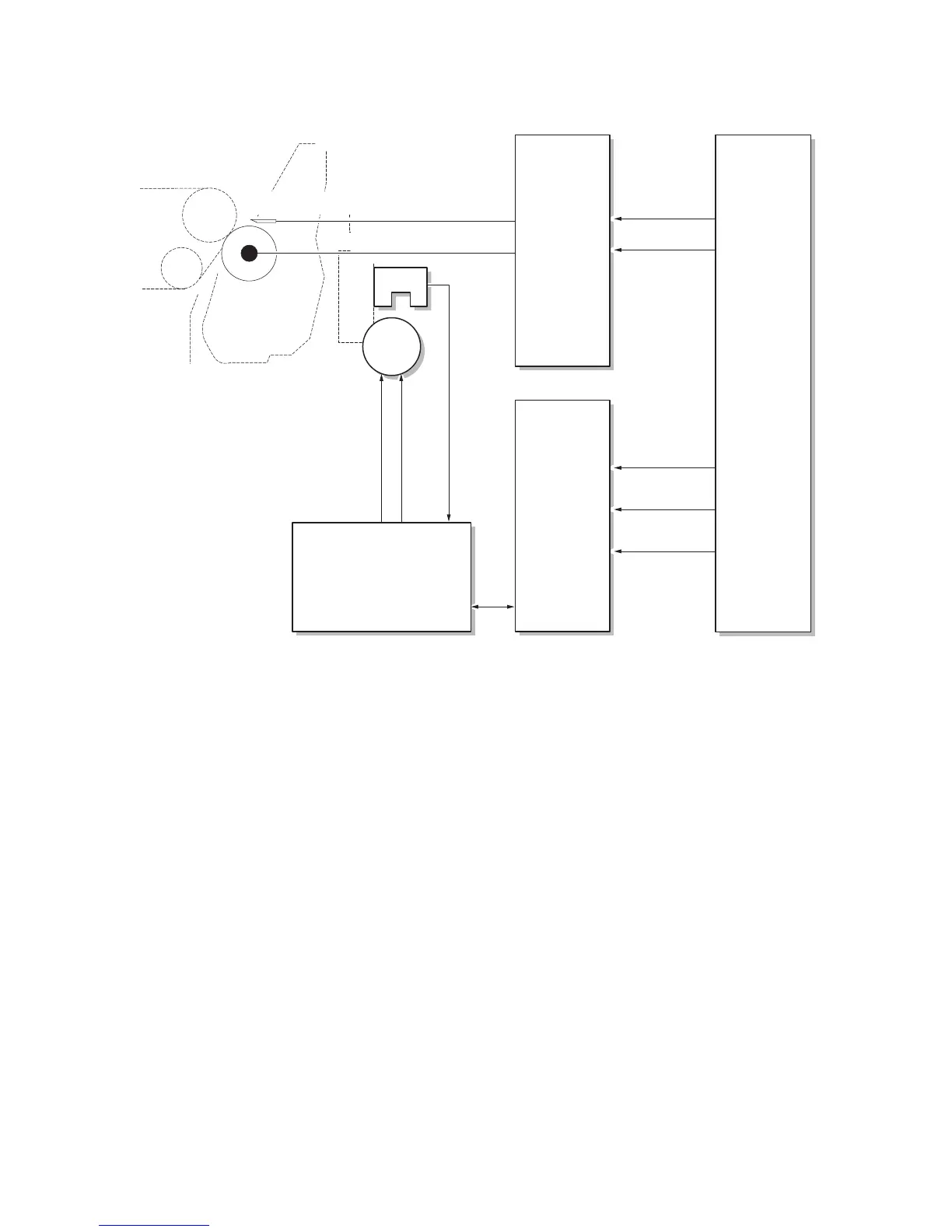

Figure 2-1-16 Secondary transfer roller section block diagram
Secondary transfer bias
Separation bias
Secondary
transfer roller
Separation brush
HVPWB2
RYPWB
FPWB1
EPWB
SP_REM
T2_REM
YC8-5
YC8-6
YC1-8
PRESS_RLS_
MOT_REM1
YC6-49YC1-16
PRESS_RLS_
MOT_REM2
YC6-50YC1-15
PRESS_RLS_
SENS
YC6-51YC1-14
YC1-7
YC14YC1
TRRS
PRESS_RLS_REM2 PRESS_RLS_SENS PRESS_RLS_REM1
YC-14-5 YC-14-2 YC-14-4
TRRM
