1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops printing and displays the paper misfeed mes-
sage on the operation panel. To remove paper misfeed in the machine, pull out the cassette, open the paper
conveying unit or paper conveying cover.

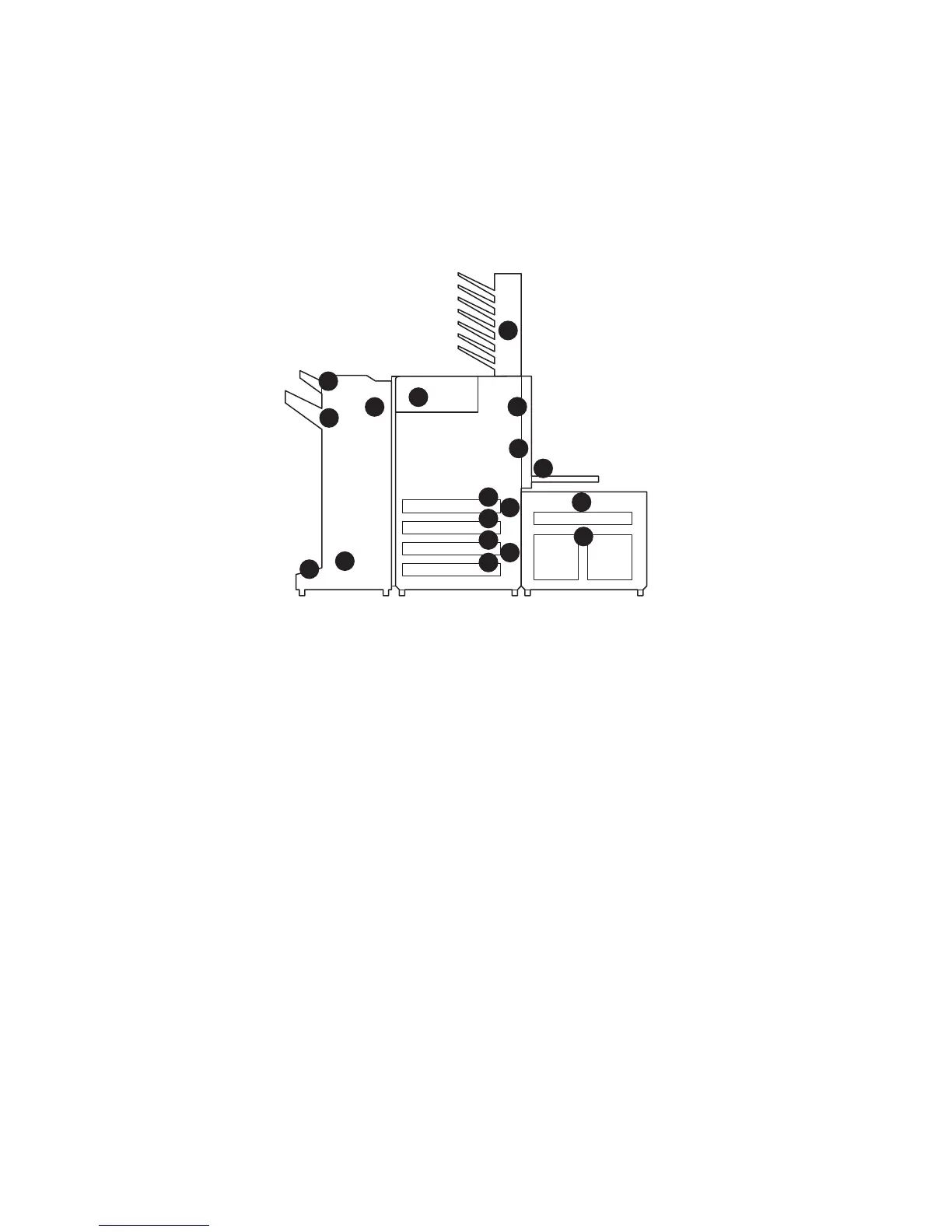

Figure 1-4-1 Paper misfeed indication
A
D
I
F
K
J
G
B
C
E
E
E
C
H
H
H
H
H
A. Misfeed in cassette 1
B. Misfeed in cassette 2
C. Misfeed in cassette 3 or 4 (option)
D. Misfeed in the MP tray
E. Misfeed in paper conveying unit, paper conveying
cover or PF paper conveying cover
F. Misfeed in the duplex section
G. Misfeed in bridge unit (option)
H. Misfeed in document finisher (option)
I. Misfeed in cassette 5 (option)
J. Misfeed in cassette 6 or 7 (option)
