Kyocera ECOSYS FS-C8650DN Service Manual

2MN/2N1
1-5-36
(3) Detaching and refitting the cleaning pre brush
Procedure
1. Remove the transfer belt unit (see page
1-5-34).
2. Unhook the front and back springs from
the hooks.

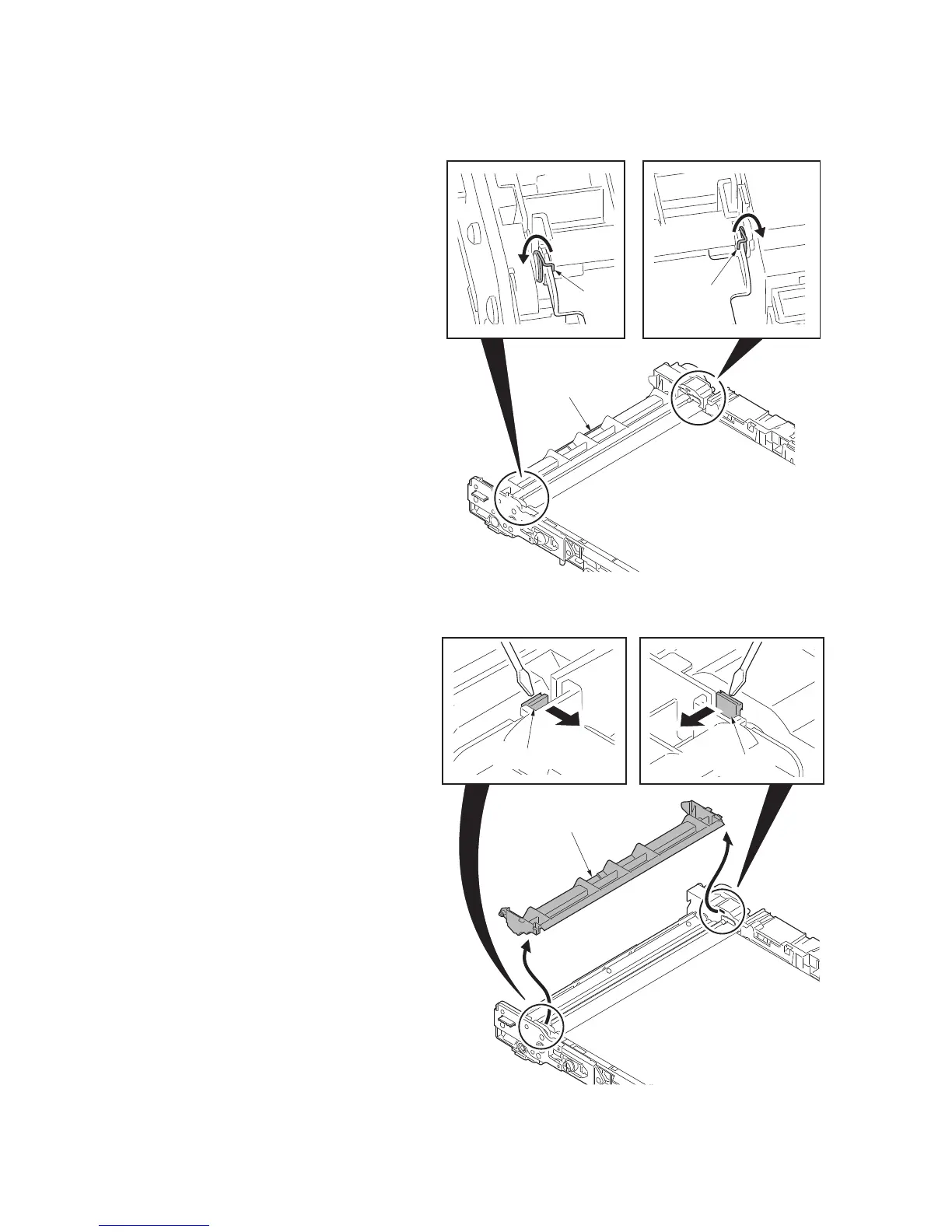

Figure 1-5-54
3. Unhook two hooks and then remove the
cleaning cover.
Figure 1-5-55
Spring
Spring
Transfer
belt unit
Cleaning cover
Hook
Hook
