2MN/2N1
1-5-51

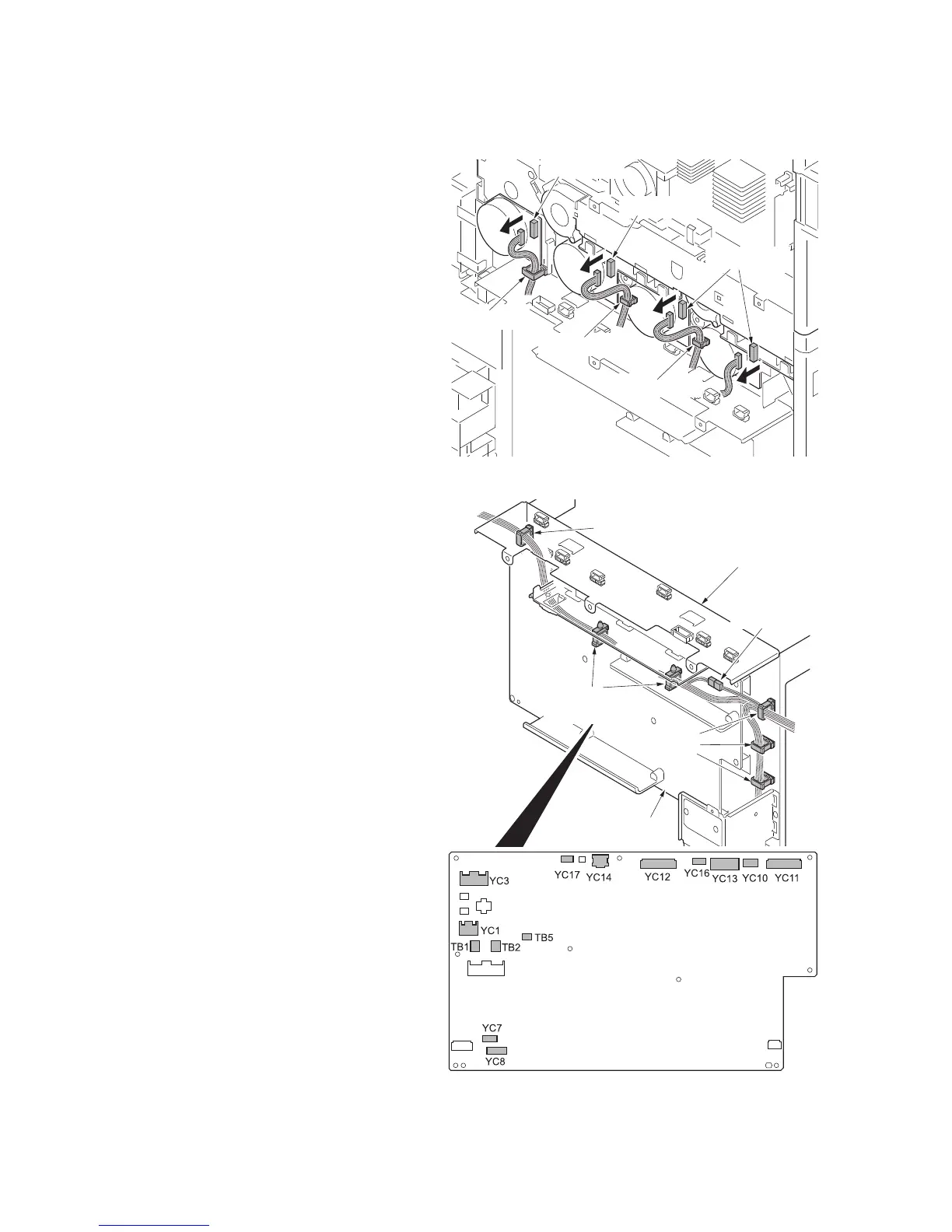

(3) Detaching and refitting the power source PWB
Procedure
1. Remove the rear lower cover (see page
1-5-56).
2. Release three wire saddles.
3. Remove four connectors.
Figure 1-5-75
4. Release six wire saddles.
5. Remove the following eleven connec-
tors and three tabs from the power
source PWB.
YC3
YC1
TB1
TB2
TB5
YC7
YC8
YC17
YC14
YC12
YC16
YC13
YC10
YC11
6. Remove 2-pin relay connector.
Figure 1-5-76
Wire saddle
Wire saddle
Waire saddle
Connector
Connector
Connectors
Wire saddles
Wire saddles
Power source PWB
2-pin relay
connector
Power source
assembly
Wire saddle
Power source PWB
To Next Page
