2MN/2N1
2-1-15
(2) Secondary transfer roller section
The secondary transfer roller section consists of the secondary transfer roller mounted to the paper conveying
unit and the separation brush. To the secondary transfer roller, DC bias is applied from the high voltage PWB
2 (HVPWB2). The toner image formed on the transfer belt is transferred to the paper by the potential differ-
ence and the paper is separated by curvature separation.

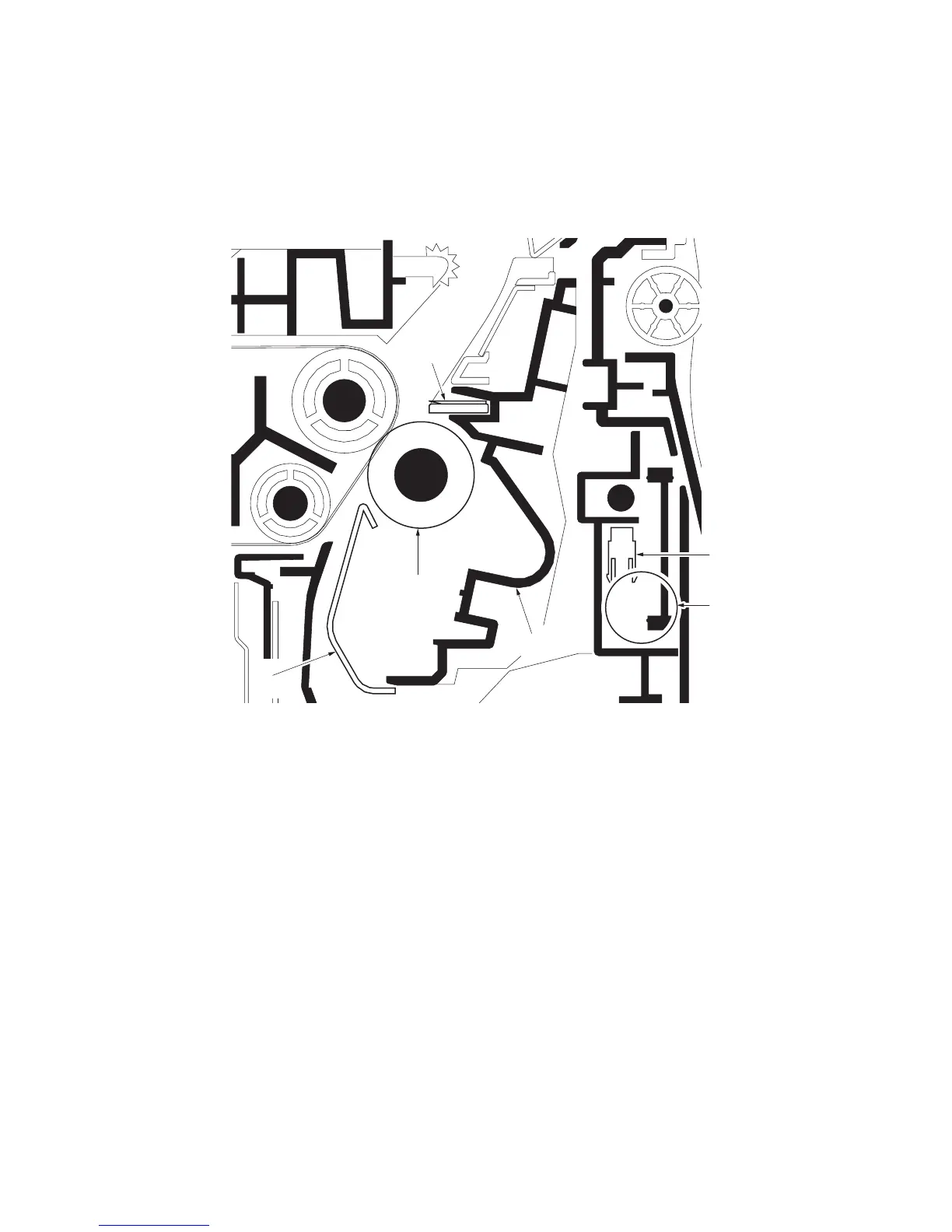

Figure 2-1-15 Secondary transfer roller section
2
5
3
1
6
4
1. Secondary transfer roller
2. Separation brush
3. Secondary transfer frame
4. Transfer guide
5. Transfer release sensor (TRRS)
6. Transfer release motor (TRRM)
