2-1-3 Developer section
The developer unit consists of the sleeve roller that forms the magnetic brush, the magnet roller, the devel-
oper blade and the developer screws that agitate the toner. Also, the toner sensor (TS) checks whether or not
toner remains in the developer unit.

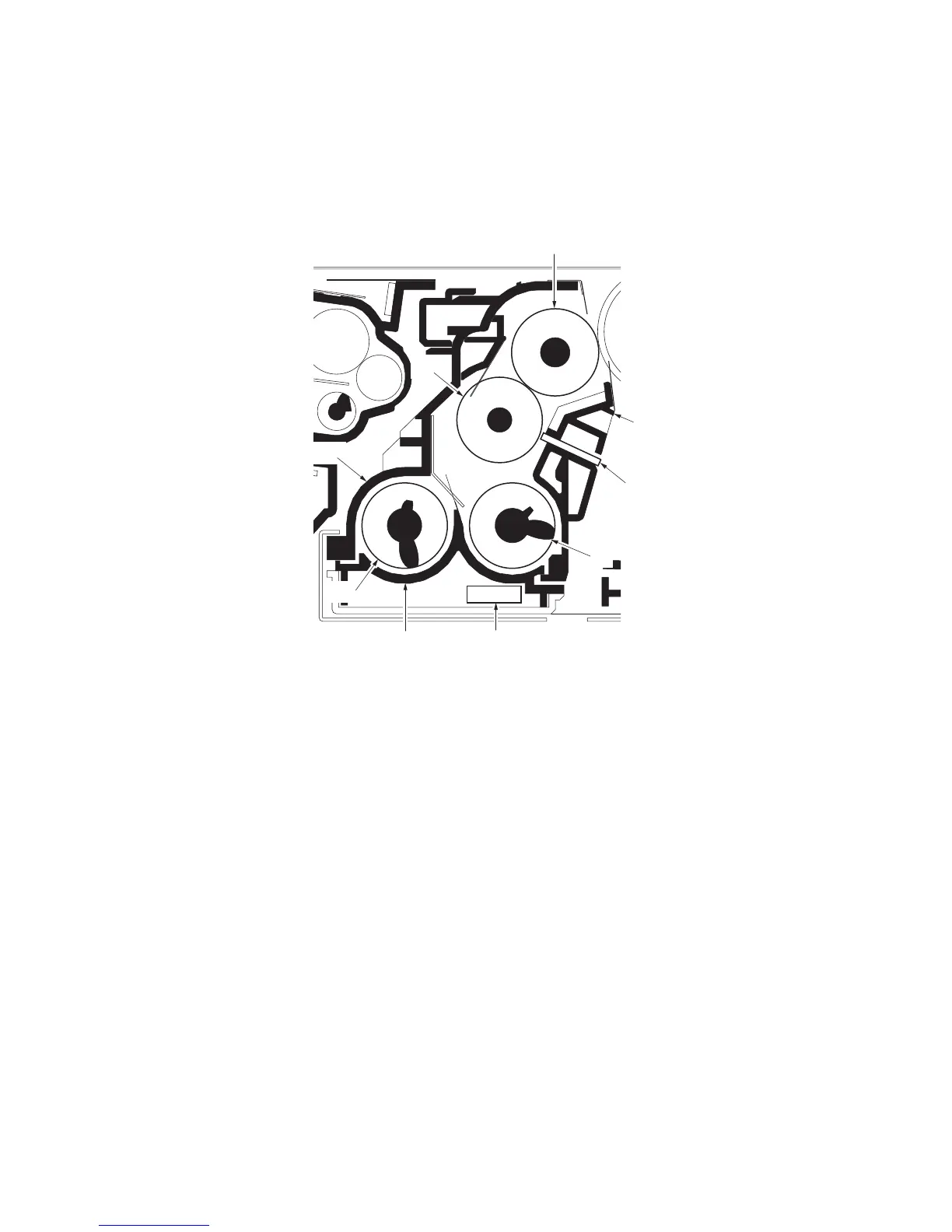

Figure 2-1-9 Developer section
2
6
1
9
7
8
5
3
4
1. Sleeve roller
2. Magnet roller
3. Developer screw A
4. Developer screw B
5. Developer blade
6. Developer case
7. Developer cover
8. Magnet cover
9. Toner sensor (TS)
