2MN/2N1
2-1-3
(2) MP tray paper feed section
Paper is fed out of the MP tray by the rotation of the MP forwarding pulley, MP paper feed pulley and MP sep-
aration pulley. The MP separation pulley prevents multiple sheets from being fed at one time by the torque lim-
iter.

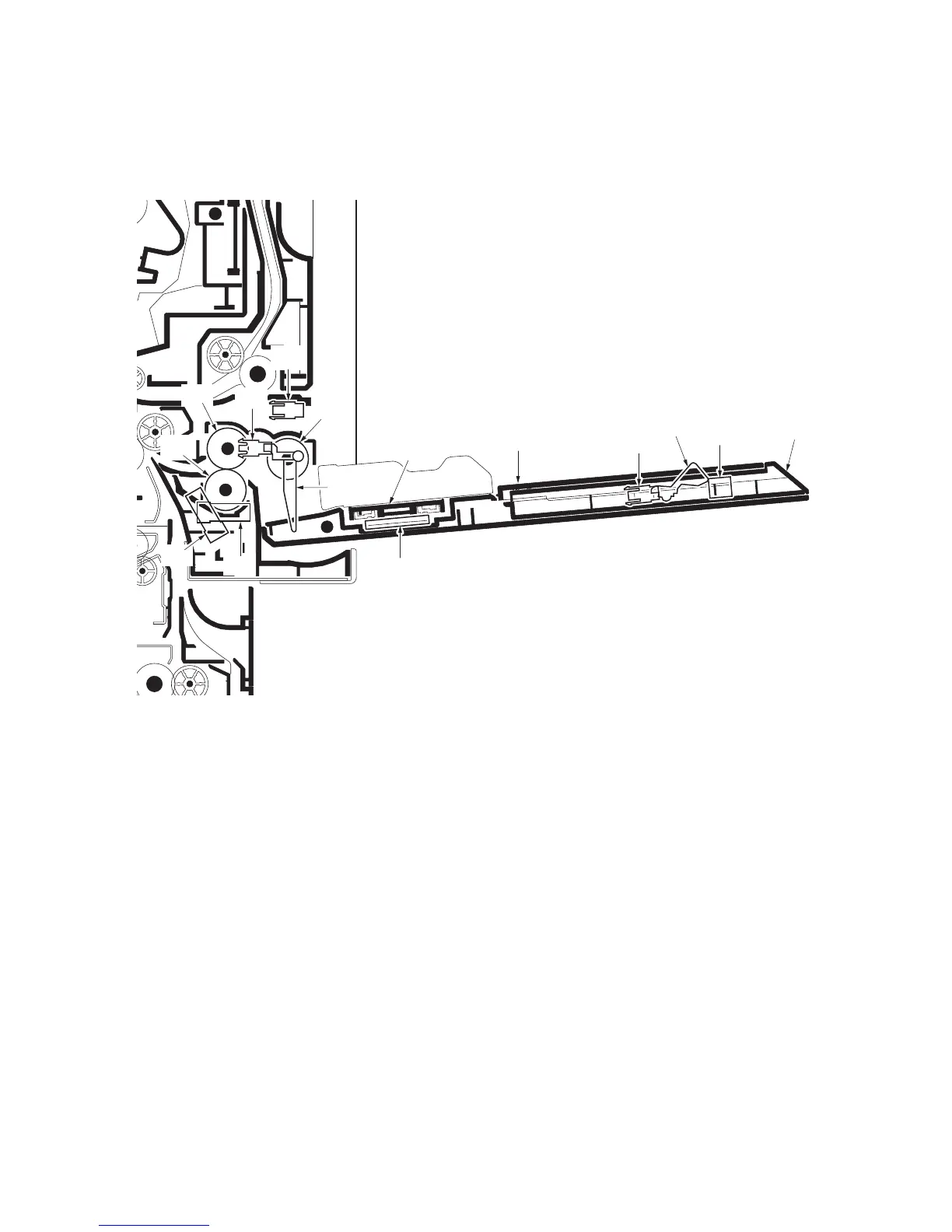

Figure 2-1-3 MP tray paper feed section
1
2
7
9
6
4
13
5
11
14
12
10
8
15
3
1. MP forwarding pulley
2. MP paper feed pulley
3. MP separate pulley
4. MP table
5. MP support Tray
6. MP lift base
7. MP paper sensor (MPPS)
8. Actuator (MP paper sensor)
9. MP lift sensor 1 (MPLS1)
10. MP lift sensor 2 (MPLS2)
11. MP paper length switch
(MPPLSW)
12. Actuator
(MP paper length switch)
13. MP paper width switch
(MPPWSW)
14. MP tray switch (MPTSW)
15. MP feed sensor (MPFS)
