2MN/2N1
2-2-4
(2) Switches and sensors

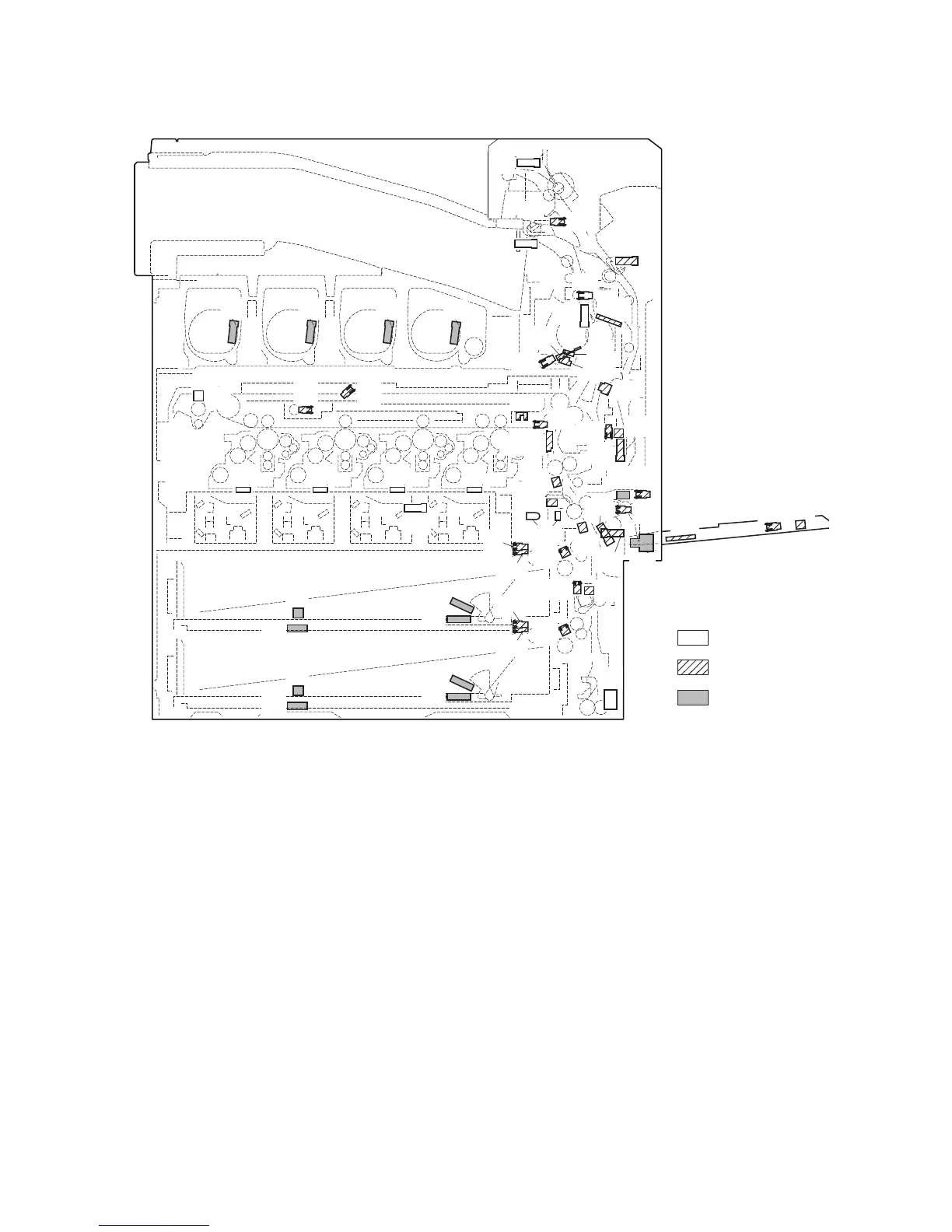

Figure 2-2-2 Switches and sensors
1. Main power switch (MSW) .................... Turns ON/OFF the AC power source.
2. Front cover switch (FRCSW) ................ Detects the opening and closing of the front cover.
3. Paper sensor 1 (PS1) ........................... Detects the presence of paper (cassette 1).
4. Paper sensor 2 (PS2) ........................... Detects the presence of paper (cassette 2).
5. Lift sensor 1 (LS1)................................. Detects activation of upper limit of the bottom plate (cassette 1).
6. Lift sensor 2 (LS2)................................. Detects activation of upper limit of the bottom plate (cassette 2).
7. Paper gauge sensor 1 (U) (PGS1(U))... Detects the paper gauge (cassette 1).
8. Paper gauge sensor 1 (L) (PGS1(L)).... Detects the paper gauge (cassette 1).
9. Paper gauge sensor 2 (U) (PGS2(U))... Detects the paper gauge (cassette 2).
10. Paper gauge sensor 2 (L) (PGS2(L)).... Detects the paper gauge (cassette 2).
11. Paper length switch 1 (PLSW1) ............ Detects the length of paper (cassette 1).
12. Paper length switch 2 (PLSW2) ............ Detects the length of paper (cassette 2).
13. Paper width switch 1 (PWSW1) ............ Detects the width of paper (cassette 1).
14. Paper width switch 2 (PWSW2) ............ Detects the width of paper (cassette 2).
15. Feed sensor 1 (FS1) ............................. Detects a paper misfeed in the paper feed section (cassette 1).
16. Feed sensor 2 (FS2) ............................. Detects a paper misfeed in the paper feed section (cassette 2).
17. Paper conveying sensor (PCS)............. Detects a paper misfeed in the vertical conveying section.
